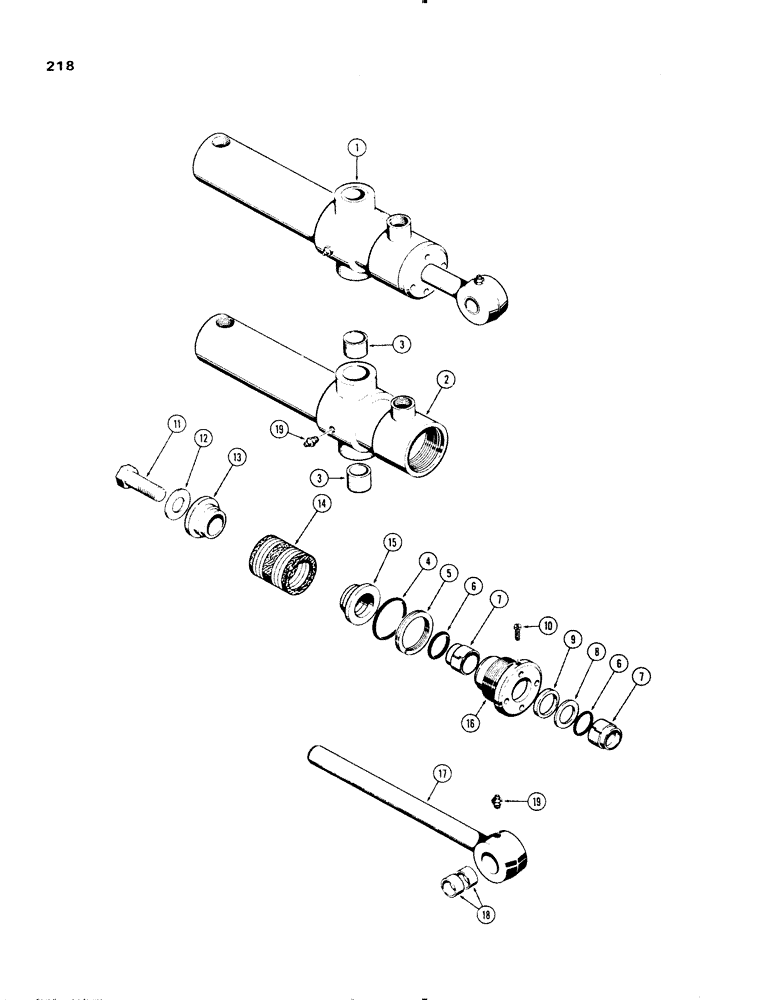

Запчасти Case 1150 (218) - RIPPER CYLINDER, 4" I.D. X 13" STROKE, W/SPLIT SNAP-IN OUTER ROD WIPER (07) - HYDRAULIC SYSTEM

1

D36345

CYLINDER - hydraulic, ripper, Includes: Ref. 2 - 19

1шт.

2

D36433

TUBE

- cylinder, Includes: Ref. 3

1шт.

3

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- tube

2шт.

4

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

Part of Cylinder Packing Kit P/N D42876

1шт.

5

D27382

RING

- backup, gland seal

1шт.

Part of Cylinder Packing Kit P/N D42876

1шт.

6

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL - "O" ring, wiper (if required)

2шт.

Part of Cylinder Packing Kit P/N D42876

1шт.

Part of Cylinder Packing Kit, P/N D373358

1шт.

7

D27380

SCRAPER RING

WIPER - rod

2шт.

Part of Cylinder Packing Kit P/N D42876

1шт.

Part of Cylinder Packing Kit, P/N D373358

1шт.

8

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- backup, rod seal

1шт.

Part of Cylinder Packing Kit P/N D42876

1шт.

Part of Cylinder Packing Kit, P/N D373358

1шт.

9

D36971

RING

SEAL - piston rod

1шт.

Part of Cylinder Packing Kit P/N D42876

1шт.

Part of Cylinder Packing Kit, P/N D373358

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - #8 x 1/4" N.C. self-tapping

1шт.

Part of Cylinder Packing Kit P/N D42876

1шт.

Part of Cylinder Packing Kit, P/N D373358

1шт.

11

D31642

BOLT

- special

1шт.

12

G32351

WASHER

- bolt

1шт.

13

D46930

PISTON

- split, bolt end

1шт.

14

D36964

PACKING

- piston

1шт.

15

D46424

PISTON

- split, eye end

1шт.

16

D45071

GLAND

- packing

1шт.

17

D36428

PISTON ROD

ROD - piston, 2" dia., Includes: Ref. 18

1шт.

18

D29325

BUSHING,38.33mm ID x 53.98mm OD x 22.23mm L

- rod

2шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" N.P., str.

2шт.

D37358

GLAND

KIT - cylinder packing, Includes Ref. 4 thru 10 & 14

1шт.

D42876

GLAND

KIT - cylinder packing, Includes: Ref. 4, 5, 6, 7, 8, 9 and 10

1шт.
