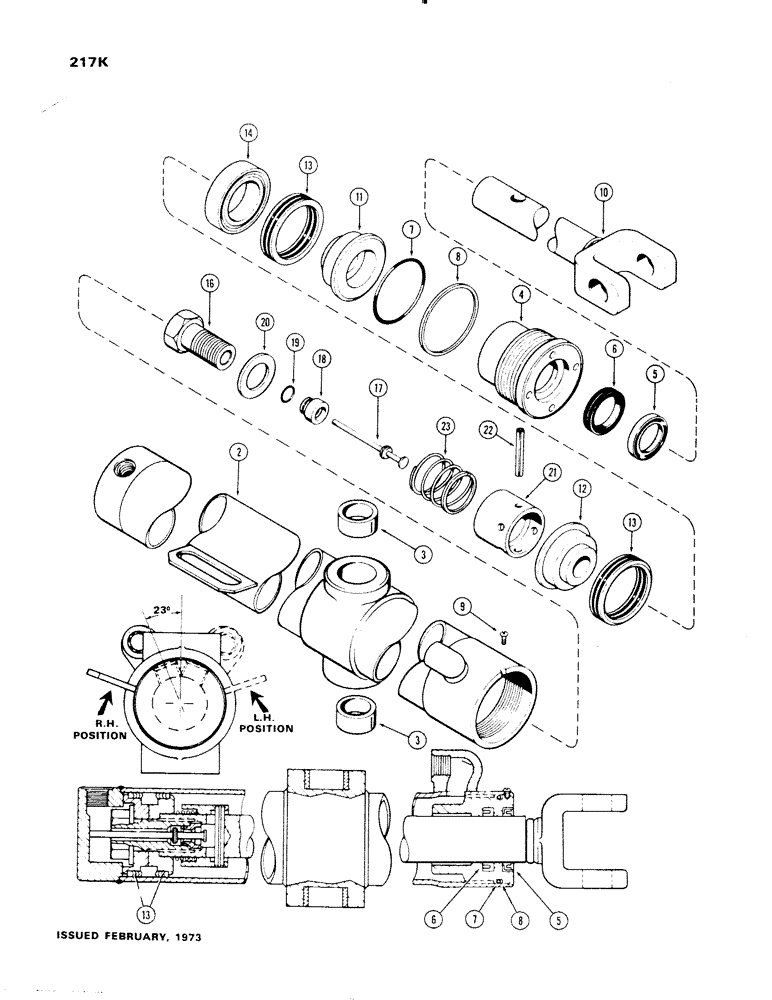

Запчасти Case 1150 (217K) - G34044 AND G34045 DOZER LIFT CYLINDERS, 3-1/2" DIA. CYLINDER (07) - HYDRAULIC SYSTEM

G34044

CYLINDER ASSY. - lift, right hand, Includes: Ref. 2 - 23

1шт.

G34045

CYLINDER ASSY. - lift, left hand, Includes: Ref. 2 - 23

1шт.

2

G34046

BOLT

TUBE ASSY. - right hand (w/23 deg. port) (See Inset), Includes: Ref. 3

1шт.

2

G34047

TUBE ASSY. - left hand (w/23 deg. port) (See Inset), Includes: Ref. 3

1шт.

3

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- tube trunnion

2шт.

4

G33569

GLAND

ASSY. - w/bushing (w/identification ring), Includes: Ref. 5 - 8

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer (1-3/4 x 2-1/4 x 5/16")

1шт.

Part of seal kit cylinder repair P/N G33571

1шт.

6

D36970

CUP

SEAL - piston rod (1-3/4 x 2-1/4 x 7/16")

1шт.

Part of seal kit cylinder repair P/N G33571

1шт.

7

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - gland (3-1/2 x 3-3/4 x 1/8")

1шт.

Part of seal kit cylinder repair P/N G33571

1шт.

8

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of seal kit cylinder repair P/N G33571

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

10

G33523

ROD - piston (1-3/4" dia.)(w/identification ring)

1шт.

11

G33525

PISTON

- split (rod end) (w/identification ring)

1шт.

12

D46388

PISTON

- split (bolt end)

1шт.

13

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

ASSY. - piston ("V" Type)

2шт.

Part of seal kit cylinder repair P/N G33571

1шт.

14

D47208

RING

- center bearing

1шт.

G32721

VALVE

ASSY. - check, Includes: Ref. 16 - 19

1шт.

16

G32723

BOLT

BODY - check valve & piston bolt

1шт.

17

G32724

POPPET - valve (pin type)

1шт.

18

G32722

BUSHING

SEAT - valve poppet

1шт.

19

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

"O" RING - seat (5/8 x 3/4 x 1/16")

1шт.

20

G32351

WASHER

- piston bolt (1-11/32 x 2-1/2 x 9/64")

1шт.

21

G34118

BLOCK

- stop, cushion

1шт.

22

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, , Block to rod 3/8" x 2 1/2", Slotted

1шт.

23

G32720

SPRING

- cushion (2-1/8" free length)

1шт.

G33571

SEAL KIT

- cylinder repair, Incl. Refs. 5, 6, 7, 8 and 13

1шт.
