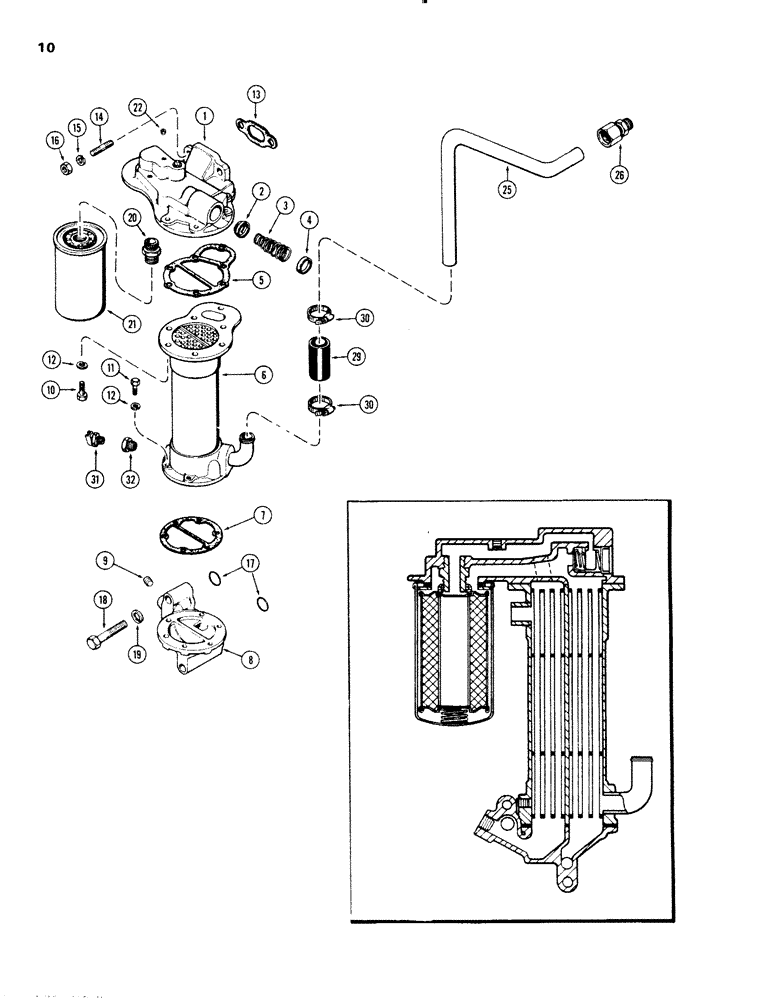

Запчасти Case 1150 (010) - OIL FILTER AND HEAT EXCHANGER, (401B) DIESEL ENGINE (01) - ENGINE

1

A58667

HEAD

ASSY. - head exchanger & oil filter, Includes: Ref. 2 - 4

1шт.

2

A21090

VALVE

- relief, oil filter

1шт.

3

A58669

SPRING

- relief valve (2-13/16" free length)

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

- 1-1/4" cup type

1шт.

5

A58676

GASKET

- heat, Serial Range: exchanger-head

1шт.

6

A58674

COOLER

EXCHANGER - heat unit

1шт.

Heat exchanger with 3/8" valve drain hole required 221-53 reducing bushing heat exchanger with 1/4" valve drain hole cannot use reducing bushing

1шт.

7

A58675

GASKET

- heat, Serial Range: exchanger-base

1шт.

8

A64409

BASE

ASSY. - heat exchanger (Replaces A58673), Includes: Ref. 9

1шт.

9

221-844

PLUG,Hex Soc, 1/2"-14

- 1/2" hex. sckt. hd., pipe

1шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

7шт.

11

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- base, 3/8 x 1-3/8" N.C. hex.

5шт.

11

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- base, 3/8 x 2-1/2" N.C. hex.

1шт.

12

92-6

LOCK WASHER,3/8"

13шт.

13

A58670

GASKET

-, Serial Range: head-block

1шт.

14

A50241

STUD

- head to block (1/2" N.C. x 2-1/8")

2шт.

15

92-8

LOCK WASHER,1/2"

2шт.

16

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.

17

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O" RING - base to block (15/16 x 1-1/8 x 3/32")

2шт.

18

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- base, 1/2 x 3" N.C. hex.

1шт.

18

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

Base Hex, 1/2"-13 x 4 1/2", G5

1шт.

19

92-8

LOCK WASHER,1/2"

2шт.

20

A58671

ADAPTER

- filter to head (1" - 12 threads at filter end)

1шт.

21

A58672

FILTER

- engine oil (1" - 12 threads)

1шт.

22

221-1843

PLUG

- head, 3/8" P.T. socket hd.

1шт.

25

A60505

TUBE

- exchanger to water pump

1шт.

26

222-2020

FITTING

CONNECTOR - tube to pump (1" tube x 3/4" P.T.)

1шт.

29

A58681

HOSE

- heat exchanger (1" I.D. x 2-1/2")

1шт.

30

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4"

2шт.

31

221-1662

PLUG

- drain, 1/4" P.T. hex. hd.

1шт.

32

221-53

BUSHING

- reducing, Serial Range: (3/8"-1/4")

1шт.

Heat exchanger with 3/8" valve drain hole required 221-53 reducing bushing heat exchanger with 1/4" valve drain hole cannot use reducing bushing

1шт.
