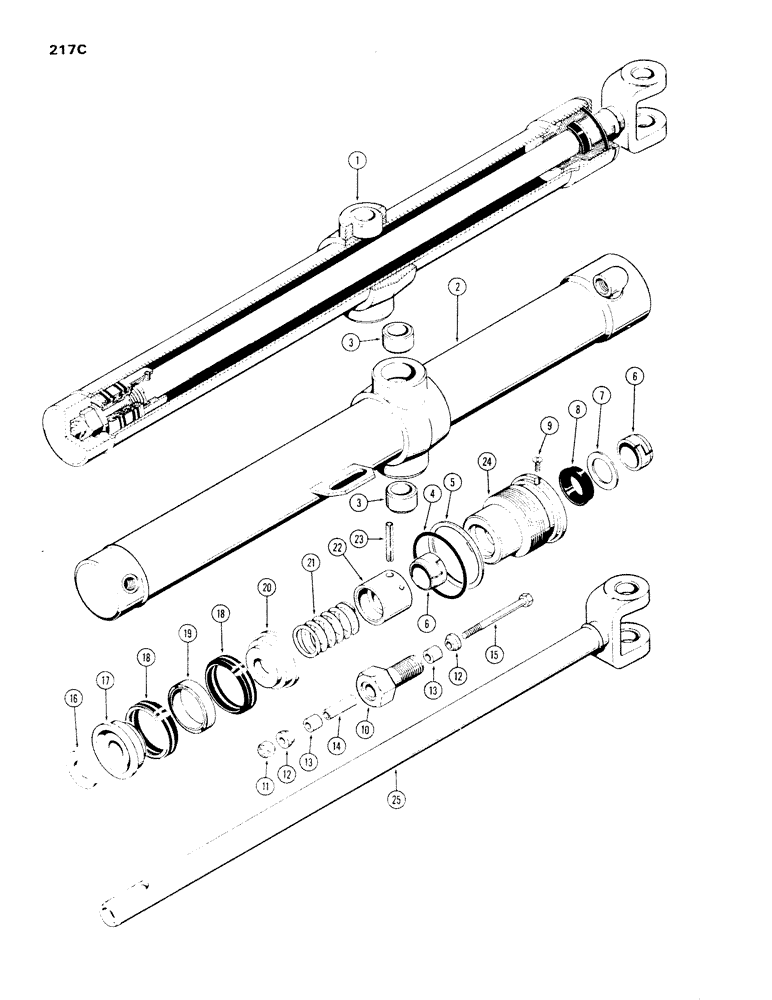

Запчасти Case 1150 (217C) - LIFT CYLINDER, POWER TILT DOZER, 3-1/2" I.D. X 32-1/4" STROKE W/ SPLIT SNAP-IN OUTER ROD WIPER (07) - HYDRAULIC SYSTEM

1

D49358

CYLINDER

- hydraulic, dozer lift, R.H., Includes: Ref. 2 - 25

1шт.

1

D49359

CYLINDER

- hydraulic, dozer lift, L.H., Includes: Ref. 2 - 25

1шт.

2

D49360

TUBE

- cylinder, R.H., Includes: Ref. 3

1шт.

2

D49361

TUBE - cylinder, L.H., Includes: Ref. 3

1шт.

3

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- tubes

2шт.

4

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

Part of Cylinder Packing Kit P/N D42873

1шт.

5

D27432

SHIM

RING - backup, split

1шт.

Part of Cylinder Packing Kit P/N D42873

1шт.

7

D28499

RING

- backup

1шт.

Part of Cylinder Packing Kit P/N D42873

1шт.

8

D36970

CUP

PACKING - piston rod

1шт.

Part of Cylinder Packing Kit P/N D42873

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - #8 x 1/4" N.C. self-tapping

1шт.

Part of Cylinder Packing Kit P/N D42873

1шт.

D48227

VALVE ASSEMBLY - differential check, Includes: Ref. 10 - 15

1шт.

10

D46384

HOUSING - valve

1шт.

11

131-3

LOCK NUT,5/16"-24, GB

NUT - 5/16" N.F. hex., lock

1шт.

12

D48228

POPPET - valve

2шт.

13

D48229

GUIDE - poppet

2шт.

14

D48230

SLEEVE - poppet

1шт.

15

D48231

BOLT - special

1шт.

16

D95037

WASHER - special

1шт.

17

D46388

PISTON

- split, bolt end

1шт.

18

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

- piston, vee

2шт.

19

D47208

RING

- packing

1шт.

20

D46387

PISTON - split, rod end

1шт.

21

D46386

SPRING - block

1шт.

22

D46385

BLOCK - stop

1шт.

23

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, 3/8" x 2 1/2", Slotted

1шт.

24

G32743

GLAND

- packing

1шт.

25

D46203

ROD

- piston, 1-3/4" dia.

1шт.

D42873

GASKET KIT

KIT - cylinder packing, Includes: Ref. 5, 6, 7, 8 and 9

1шт.
