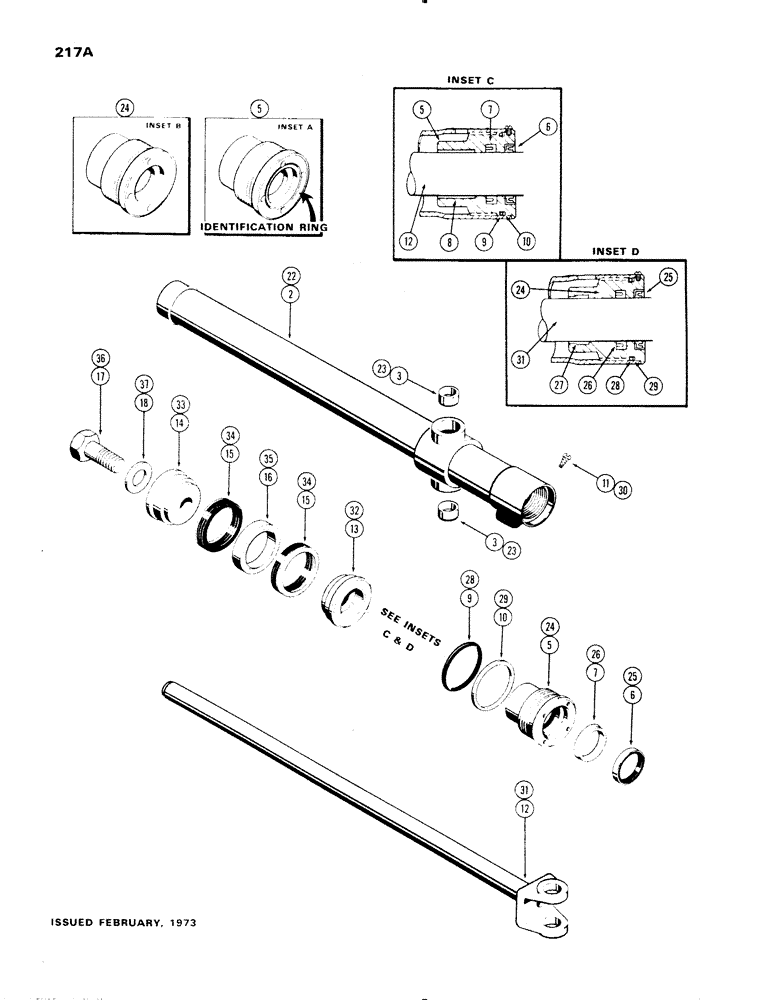

Запчасти Case 1150 (217A) - G33790 AND G33791 DOZER LIFT CYLINDERS, 3-1/2" DIA. CYLINDER W/ 31-1/2" STROKE (07) - HYDRAULIC SYSTEM

G33790

CYLINDER

ASSY. - lift, right hand, Includes: Ref. 2 - 18

1шт.

G33791

CYLINDER

ASSY. - lift, left hand, Includes: Ref. 2 - 18

1шт.

2

D49121

CYLINDER

TUBE ASSY. - cylinder body, right hand, Includes: Ref. 3

1шт.

2

D49122

CYLINDER

TUBE ASSY. - cylinder body, left hand, Includes: Ref. 3

1шт.

3

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- tube trunnion

2шт.

G33569

GLAND

ASSY. - w/bushing (See Inset C), Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - (w/identification ring) (See Inset A)

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer (1-3/4 x 2-1/4 x 5/16")

1шт.

Part of seal kit cylinder repair P/N G337933 and G32291

1шт.

7

D36970

CUP

SEAL - piston rod (1-3/4 x 2-1/4 x 7/16")

1шт.

Part of seal kit cylinder repair P/N G337933 and G32291

1шт.

8

NSS

NOT SOLD SEPARAT

BUSHING - gland (See Inset C)

1шт.

9

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - gland (3-1/2 x 3-3/4 x 1/8")

1шт.

Part of seal kit cylinder repair P/N G337933 and G32291

1шт.

10

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of seal kit cylinder repair P/N G337933 and G32291

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#9-32 x 1/4" self tapping)

1шт.

12

G33792

ROD

- piston (1-3/4" dia.) (w/identification ring)

1шт.

13

G33520

PISTON

- split (rod end) (w/identification ring)

1шт.

14

D28367

PISTON

- split (bolt end)

1шт.

G33237

PACKING

ASSY. - piston, Includes: Ref. 15 and 16

1шт.

Part of seal kit cylinder repair P/N G337933 and G32291

1шт.

15

NSS

NOT SOLD SEPARAT

PACKING ASSY. - "V" type

2шт.

16

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

17

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt 91-1/8 x 1-7/8 x 1/8")

1шт.

G33793

SEAL KIT

- cylinder repair, Incl. Refs. 6, 7, 9, 10, G33237, 25, 26, 27, 28, 29 and D36963

1шт.

G32142

CYLINDER

ASSY. - lift, right hand, Includes: Ref. 22 - 29

1шт.

G32143

CYLINDER

ASSY. - lift, left hand, Includes: Ref. 22 - 29

1шт.

22

D49121

CYLINDER

TUBE ASSY. - cylinder body, right hand, G32142 and G32143 dozer lift with solid outer wiper and split inner wiper without gland identification ring

1шт.

22

D49122

CYLINDER

TUBE ASSY. - cylinder body, left hand, G32142 and G32143 dozer lift with solid outer wiper and split inner wiper without gland identification ring

1шт.

23

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- tube trunnion, G32142 and G32143 dozer lift cylinders with solid outer wiper and split inner wiper without gland identification ring

2шт.

G32743

GLAND

ASSY. - (See Inset D), G32142 and G32143 dozer lift cylinders with solid outer wiper and split inner wiper without identification ring

1шт.

24

NSS

NOT SOLD SEPARAT

GLAND - (w/o identification ring) (See Inset B), G32142 and G32143 dozer lift cylinders with solid outer wiper and split inner wiper

1шт.

25

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer (1-3/4 x 2-1/4 x 5/16"), G32142 and G32143 dozer lift cylinders, solid, and split inner wiper without gland identification ring

1шт.

Part of seal kit cylinder repair P/N G337933 and G32291

1шт.

26

D36970

CUP

SEAL - piston rod (1-3/4 x 2-1/4 x 7/16"), G32142 and G32143 dozer lift cylinders with solid outer wiper and split inner wiper without gland identification ring

1шт.

Part of seal kit cylinder repair P/N G337933 and G32291

1шт.

27

D27432

SHIM

- piston rod, inner (split type) (See Inset D), G32142 and G32143 dozer lift cylinders with solid outer wiper and split inner wiper without gland identification ring

1шт.

Part of seal kit cylinder repair P/N G337933 and G32291

1шт.

28

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - gland (3-1/2 x 3-3/4 x 1/8"), G32142 and G32143 dozer lift cylinders with solid outer wiper and split inner wiper without identification ring

1шт.

Part of seal kit cylinder repair P/N G337933 and G32291

1шт.

29

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- gland "O" ring back-up, G32142 and G32143 dozer lift cylinders with solid outer wiper and split inner wiper without identification ring

1шт.

Part of seal kit cylinder repair P/N G337933 and G32291

1шт.

30

137-1031

SCREW - gland lock (#8-32 x 1/4" self tapping), G32142 and G32143 dozer lift cylinders with solid outer wiper and split inner wiper without identification ring

1шт.

31

D36240

PISTON ROD

ROD - piston (1-3/4" dia.) (w/o identification ring), G32142 and G32143 dozer lift cylinders with solid outer wiper and split inner wiper

1шт.

32

D28369

PISTON

- split (rod end) (w/o identification ring), G32142 and G32143 dozer lift cylinders with solid outer wiper and split inner wiper

1шт.

33

D28367

PISTON

- split (bolt end), G32142 and G32143 dozer lift cylinders with solid outer wiper and split inner wiper without identification ring

1шт.

D36963

PACKING

ASSY. - piston, Includes: Ref. 34 and 35, G32142 and G32143 dozer lift cylinders with solid outer wiper and split inner wiper without identification ring

1шт.

Part of seal kit cylinder repair P/N G337933 and G32291

1шт.

34

NSS

NOT SOLD SEPARAT

PACKING ASSY. - "V" type, G32142 and G32143 dozer lift cylinders with solid outer wiper and split inner wiper without identification ring

2шт.

35

NSS

NOT SOLD SEPARAT

RING - center bearing, G32142 and G32143 dozer lift cylinders with solid outer wiper and split inner wiper without identification ring

1шт.

36

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston, G32142 and G32143 dozer lift cylinders with solid outer wiper and split inner wiper without identification ring Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

37

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- piston bolt (1-1/8 x 1-7/8 x 1/8"), G32142 and G32143 dozer lift cylinders with solid outer wiper and split inner wiper without identification ring

1шт.

G32291

CYLINDER

SEAL KIT - cylinder repair, Incl. Refs. 6, 7, 9, 10, G33237, 25, 26, 27, 28, 29 and D36963

1шт.
