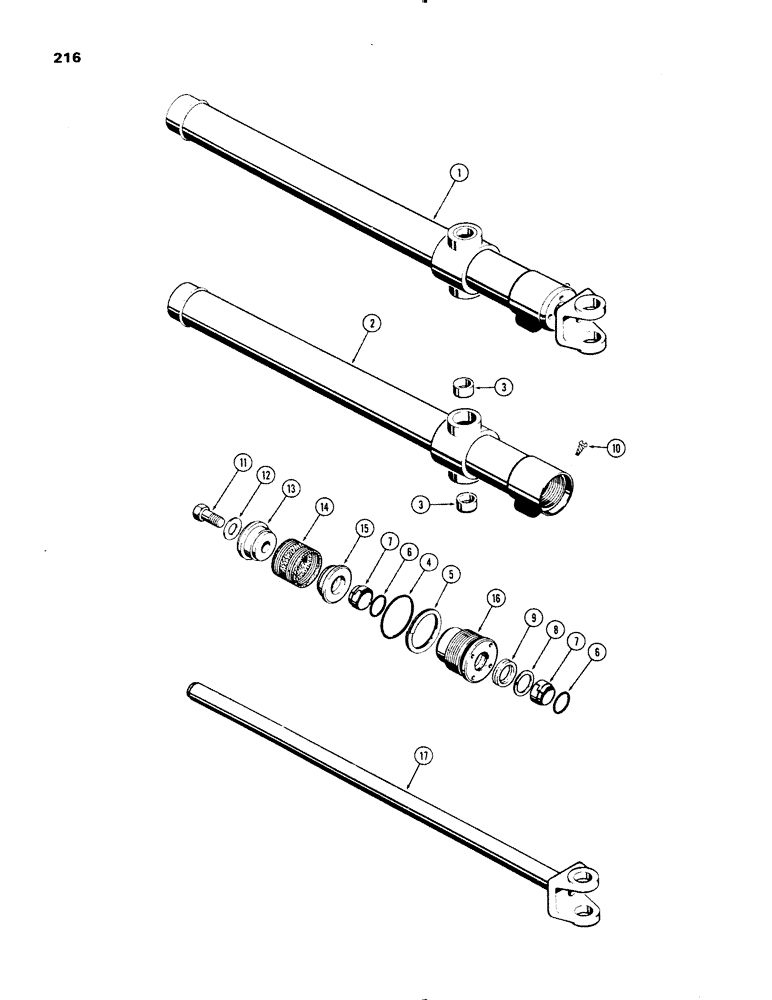

Запчасти Case 1150 (216) - DOZER LIFT CYLINDER, POWER ANGLE TILT DOZER, 3-1/2" I.D. X 31-1/2" STROKE (07) - HYDRAULIC SYSTEM

1

D49119

CYLINDER ASSY.

CYLINDER - dozer lift, R.H., Includes: Ref. 2 - 16

1шт.

1

D49120

CYLINDER ASSY.

CYLINDER - dozer lift, L.H., Includes: Ref. 2 - 16

1шт.

2

D49121

CYLINDER

TUBE - cylinder, R.H., Includes: Ref. 3

1шт.

2

D49122

CYLINDER

TUBE - cylinder, L.H., Includes: Ref. 3

1шт.

3

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- tube

2шт.

4

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

Part of Cylinder Packing Kit P/N D42873

1шт.

5

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup

1шт.

Part of Cylinder Packing Kit P/N D42873

1шт.

6

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL -"O" ring, wiper (if used)

1шт.

Part of Cylinder Packing Kit P/N D42873

1шт.

7

D27432

SHIM

- rod

2шт.

Part of Cylinder Packing Kit P/N D42873

1шт.

8

D28499

RING

- backup

1шт.

Part of Cylinder Packing Kit P/N D42873

1шт.

9

D36970

CUP

PACKING - piston rod

1шт.

Part of Cylinder Packing Kit P/N D42873

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - #8 x 1/4" N.C. self-tapping

1шт.

Part of Cylinder Packing Kit P/N D42873

1шт.

11

D32861

BOLT

- special, rod

1шт.

12

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- bolt

1шт.

13

D28367

PISTON

- split, bolt end

1шт.

14

D36963

PACKING

- piston

1шт.

15

D28369

PISTON

- split, yoke end

1шт.

16

D45069

GLAND

- packing

1шт.

17

D36240

PISTON ROD

ROD - piston, 1-3/4" dia.

1шт.

D42873

GASKET KIT

KIT - cylinder packing, Includes: Ref. 4, 5, 6, 7, 8, 9 and 10

1шт.
