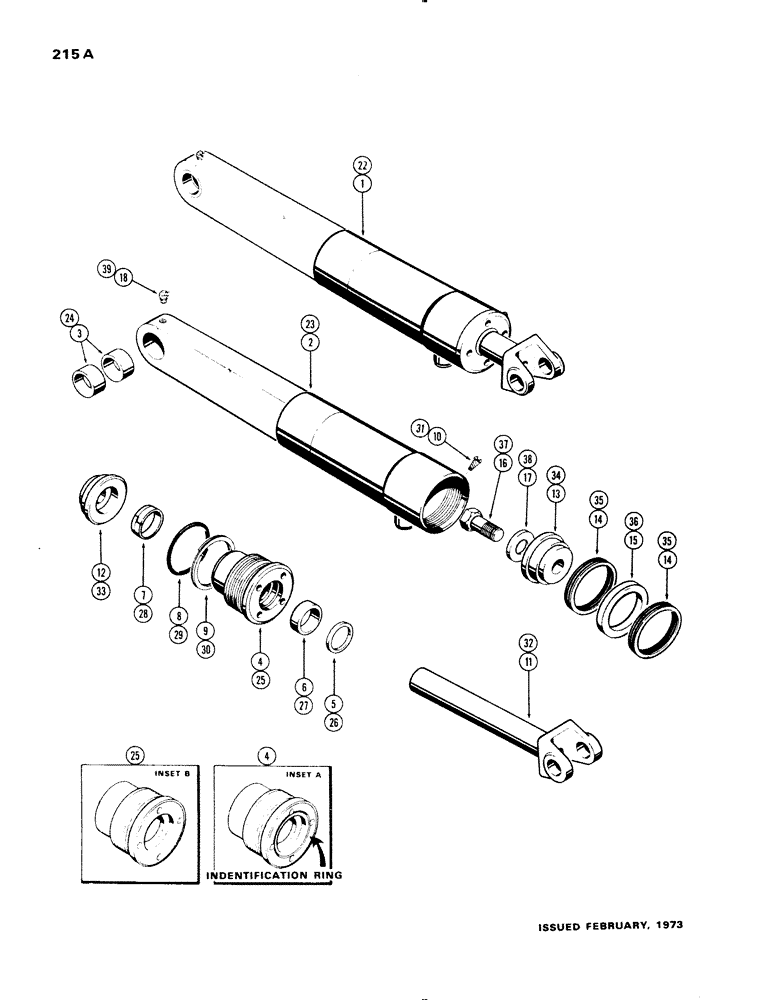

Запчасти Case 1150 (215A) - G33516 DOZER TILT CYLINDER, 3-1/2" DIA. CYLINDER WITH 4-3/16" STROKE POWER TILT DOZER (07) - HYDRAULIC SYSTEM

1

G33516

CYLINDER

ASSY. - tilt, Includes: Ref. 2 - 18

1шт.

2

D36339

TUBE ASSY. - cylinder body, Includes: Ref. 3

1шт.

3

D36333

BUSHING,31.98mm ID x 41.27mm OD x 22.1mm L

- tube

2шт.

G33568

GLAND

ASSY., Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - (w/identification ring) (See Inset A)

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer (1-3/4 x 2-1/4 x 5/16")

1шт.

Part of seal kit cylinder repair P/N G32291

1шт.

6

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- piston rod (1-3/4 x 2-1/4 x 5/16") (Replaced D36970)

1шт.

Part of seal kit cylinder repair P/N G32291

1шт.

7

D27432

SHIM

- piston rod, inner (split type)

1шт.

Part of seal kit cylinder repair P/N G32291

1шт.

8

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - gland (3-1/2 x 3-3/4 x 1/8")

1шт.

Part of seal kit cylinder repair P/N G32291

1шт.

9

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of seal kit cylinder repair P/N G32291

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

11

REFERENCE

SPARE PART

ROD - piston (1-3/4" dia.) (w/identification ring)

1шт.

12

G33520

PISTON

- split (rod end) (w/identification ring)

1шт.

13

D28367

PISTON

- split (bolt end)

1шт.

G33237

PACKING

ASSY. - piston, Includes: Ref. 14 and 15

1шт.

Part of seal kit cylinder repair P/N G32291

1шт.

14

NSS

NOT SOLD SEPARAT

PACKING ASSY. - "V" type

2шт.

15

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

16

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

17

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt (1-1/8 x 1-7/8 x 1/8")

1шт.

18

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease (1/8" P.T., 45 deg.)

1шт.

22

G32584

CYLINDER

ASSY. - tilt, Includes: Ref. 23 - 39, G32584 dozer without gland identification ring

1шт.

23

D36339

TUBE ASSY. - cylinder body, Includes: Ref. 24, G32584 dozer tilt without gland identification ring

1шт.

24

D36333

BUSHING,31.98mm ID x 41.27mm OD x 22.1mm L

- tube, G32584 dozer tilt cylinder without gland identification ring

2шт.

G32743

GLAND

ASSY., Includes: Ref. 25 - 30, G32584 dozer tilt cylinder without identification ring

1шт.

25

NSS

NOT SOLD SEPARAT

GLAND - (w/o identification ring) (See Inset B), G32584 dozer tilt cylinder

1шт.

26

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer (1-3/4 x 2-1/4 x 5/16"), G32584 dozer tilt cylinder without gland identification ring

1шт.

Part of seal kit cylinder repair P/N G32291

1шт.

27

D36970

CUP

SEAL - piston rod (1-3/4 x 2-1/4 x 5/16"), G32584 dozer tilt cylinder without gland identification ring

1шт.

Part of seal kit cylinder repair P/N G32291

1шт.

28

D27432

SHIM

- piston rod, inner (split type), G32584 dozer tilt cylinder without gland identification ring

1шт.

Part of seal kit cylinder repair P/N G32291

1шт.

29

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - gland (3-1/2 x 3-3/4 x 1/8"), G32584 dozer tilt cylinder without identification ring

1шт.

Part of seal kit cylinder repair P/N G32291

1шт.

30

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- gland "O" ring back-up, G32584 dozer tilt cylinder without identification ring

1шт.

Part of seal kit cylinder repair P/N G32291

1шт.

31

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping), G32584 dozer tilt cylinder without identification ring

1шт.

32

D36338

ROD ASSY.

ROD - piston (1-3/4" dia.) (w/o identification ring), G32584 dozer tilt cylinder

1шт.

33

D28369

PISTON

- split (rod end) (w/o identification ring), G32584 dozer tilt cylinder

1шт.

34

D28367

PISTON

- split (bolt end), G32584 dozer tilt cylinder without gland identification ring

1шт.

G33237

PACKING

ASSY. - piston, Includes: Ref. 35 and 36, G32584 dozer tilt cylinder without gland identification ring

1шт.

Part of seal kit cylinder repair P/N G32291

1шт.

35

NSS

NOT SOLD SEPARAT

PACKING ASSY. - "V" type, G32584 dozer tilt cylinder without gland identification ring

2шт.

36

NSS

NOT SOLD SEPARAT

RING - center bearing, G32584 dozer tilt cylinder without gland identification ring

1шт.

37

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston, G32584 dozer tilt cylinder without gland identification ring Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

38

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt (1-1/8 x 1-7/8 x 1/8"), G32584 dozer tilt cylinder without gland identification ring

1шт.

39

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease (1/8" P.T., 45 deg.), G32584 dozer tilt cylinder without gland identification ring

1шт.

G32291

CYLINDER

SEAL KIT - cylinder repair, Incl. Refs. 5, 6, 7, 8, 9, G33237, 26, 27, 28, 29, 30 and G33237

1шт.
