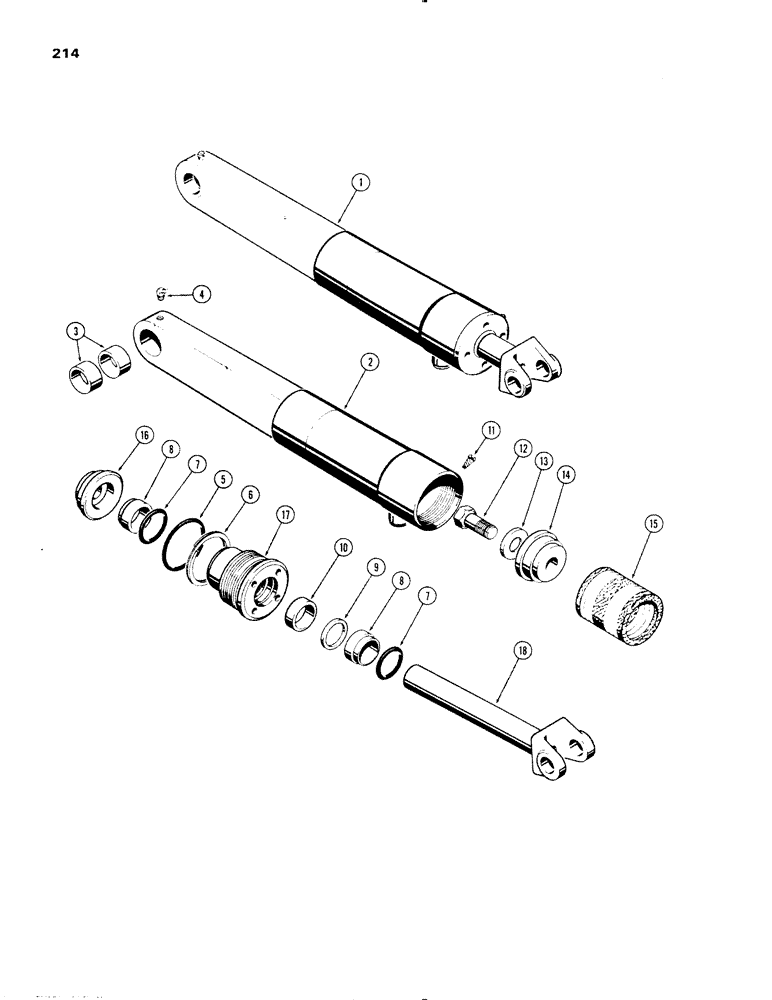

Запчасти Case 1150 (214) - TILT CYLINDER, POWER TILT DOZER, 3-1/2" I.D. X 4-3/16" STROKE W/ SPLIT SNAP IN OUTER ROD WIPER (07) - HYDRAULIC SYSTEM

1

D36182

KEY

CYLINDER - hydraulic, power tilt, Includes: Ref. 2 - 18

1шт.

2

D36339

TUBE - cylinder, Includes: Ref. 3

1шт.

3

D36333

BUSHING,31.98mm ID x 41.27mm OD x 22.1mm L

- tube

2шт.

4

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8" P.T., 45 deg.

1шт.

5

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

Part of Cylinder Packing Kit P/N D42873

1шт.

6

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup

1шт.

Part of Cylinder Packing Kit P/N D42873

1шт.

7

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring, wiper (if required)

2шт.

Part of Cylinder Packing Kit P/N D42873

1шт.

8

D27432

SHIM

- rod

2шт.

Part of Cylinder Packing Kit P/N D42873

1шт.

9

D28499

RING

- backup

1шт.

Part of Cylinder Packing Kit P/N D42873

1шт.

10

D36970

CUP

PACKING - piston rod

1шт.

Part of Cylinder Packing Kit P/N D42873

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - #8 x 1/4" N.C. self-tapping

1шт.

Part of Cylinder Packing Kit P/N D42873

1шт.

12

D32861

BOLT

- special, rod

1шт.

13

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- bolt

1шт.

14

D28367

PISTON

- split, bolt end

1шт.

15

D36963

PACKING

- piston

1шт.

16

D28369

PISTON

- split, yoke end

1шт.

17

D45069

GLAND

- packing

1шт.

18

D36338

ROD ASSY.

ROD - piston, 1-3/4" dia.

1шт.

D42873

GASKET KIT

KIT - cylinder packing, Includes: Ref. 5, 6, 7, 8, 9, 10 and 11

1шт.
