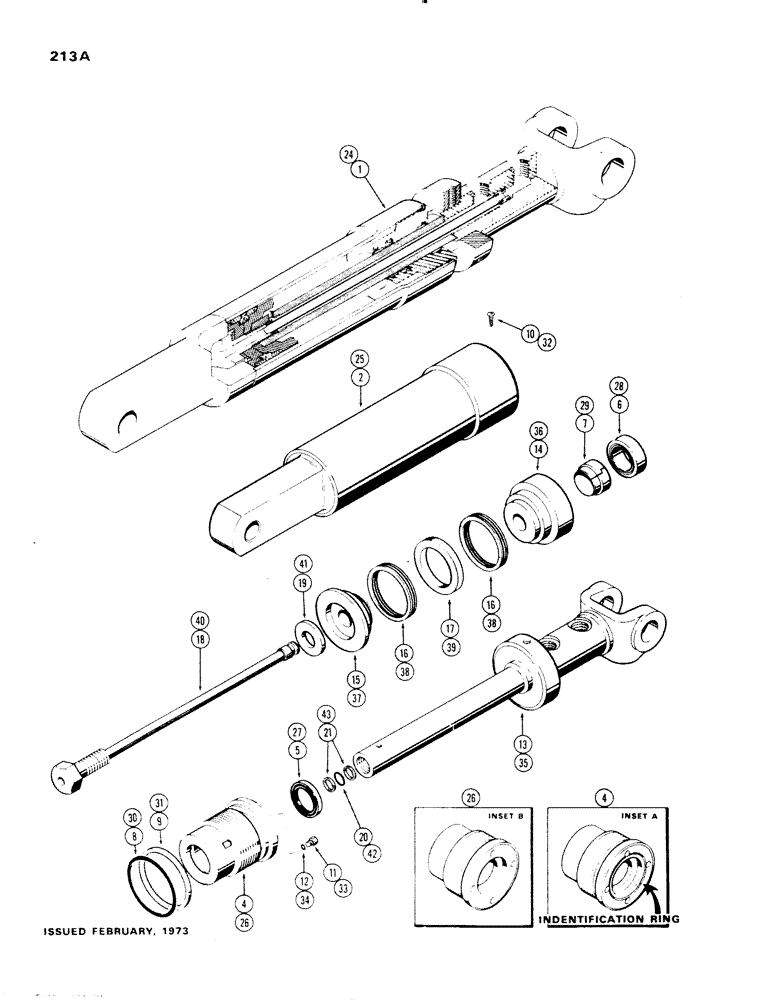

Запчасти Case 1150 (213A) - G34280 AND G34281 DOZER TILT CYLINDERS, 3-1/2" DIA. CYLINDER W/ 6" STROKE (07) - HYDRAULIC SYSTEM

1

G34281

CYLINDER

ASSY. - tilt, standard track (30" closed length), Includes: Ref. 2 - 21

2шт.

1

G34280

CYLINDER

ASSY. - tilt, wide track (31" closed length), Includes: Ref. 2 - 21

2шт.

2

D46827

CYLINDER

TUBE - cyl. body, standard track (20-5/8" long)

1шт.

2

D50200

TUBE

- cyl. body, wide track (21-3/4" long)

1шт.

G34291

GLAND

ASSY., Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - (w/identification ring) (See Inset A)

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer (1-3/4 x 2-1/4 x 5/16")

1шт.

Part of seal kit cylinder repair P/N G32627

1шт.

6

D36970

CUP

SEAL - piston rod (1-3/4 x 2-1/4 x 7/16")

1шт.

Part of seal kit cylinder repair P/N G32627

1шт.

7

D27432

SHIM

- piston rod, inner (split type)

1шт.

Part of seal kit cylinder repair P/N G32627

1шт.

8

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - gland (3-1/2 x 3-3/4 x 1/8")

1шт.

Part of seal kit cylinder repair P/N G32627

1шт.

9

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of seal kit cylinder repair P/N G32627

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

11

218-5151

PLUG,Hex Hd, 5/16"-24 ORB

ASSY. - gland bleeder, Includes: Ref. 12

1шт.

12

218-5001

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

2-1, .239" ID x .064" Thk, plug

1шт.

13

G34282

ROD

- piston (1-3/4" dia.) (w/identification ring)

1шт.

14

G34287

PISTON ASSY.

PISTON - split (rod end) (w/identification ring)

1шт.

15

D28367

PISTON

- split (tube end)

1шт.

G33237

PACKING

ASSY. - piston, Includes: Ref. 16 and 17

1шт.

Part of seal kit cylinder repair P/N G32627

1шт.

16

NSS

NOT SOLD SEPARAT

PACKING ASSY. - "V" type

2шт.

17

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

18

G34288

TUBE

- piston (inner)

1шт.

19

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston tube (1-1/8 x 1-7/8 x 1/8")

1шт.

20

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" RING - tube (5/8 x 13/16 x 3/32")

1шт.

Part of seal kit cylinder repair P/N G32627

1шт.

21

G32626

RING

- tube "O" ring back-up

2шт.

Part of seal kit cylinder repair P/N G32627

1шт.

24

G32623

HYDRAULIC CYLINDER

CYLINDER ASSY. - tilt, standard track (30" closed length), Includes: Ref. 25 - 43, G32623 and G32625 dozer without gland identification ring

2шт.

24

G32625

NO LONGER SERVICED

CYLINDER ASSY. - tilt, wide track (31" closed length), Includes: Ref. 25 - 43, G32623 and G32625 dozer without gland identification ring

2шт.

25

D46827

CYLINDER

TUBE - cyl. body, standard track (20-5/8" long), G32623 and G3265 dozer tilt without gland identification ring

1шт.

25

D50200

TUBE

- cyl. body, wide track (21-3/4" long), G32623 and G3265 dozer tilt without gland identification ring

1шт.

G32739

GLAND

ASSY., Includes: Ref. 26 - 31

1шт.

26

NSS

NOT SOLD SEPARAT

GLAND - (w/o identification ring) (See inset B) G32623 and G3265 dozer tilt cylinders

1шт.

27

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer (1-3/4 x 2-1/4 x 5/16"), G32623 and G3265 dozer tilt cylinders without gland identification ring

1шт.

Part of seal kit cylinder repair P/N G32627

1шт.

28

D36970

CUP

SEAL - piston rod (1-3/4 x 2-1/4 x 7/16"), G32623 and G3265 dozer tilt cylinders without gland identification ring

1шт.

Part of seal kit cylinder repair P/N G32627

1шт.

29

D27432

SHIM

- piston rod, inner (split type), G32623 and G3265 dozer tilt cylinders without gland identification ring

1шт.

Part of seal kit cylinder repair P/N G32627

1шт.

30

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - gland (3-1/2 x 3-3/4 x 1/8"), G32623 and G3265 dozer tilt cylinders without identification ring

1шт.

Part of seal kit cylinder repair P/N G32627

1шт.

31

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- gland "O" ring back-up, G32623 and G3265 dozer tilt cylinders without identification ring

1шт.

Part of seal kit cylinder repair P/N G32627

1шт.

32

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock, #8-32 x 1/4" self-tapping, G32623 and G3265 dozer tilt cylinders without identification ring

1шт.

33

218-5151

PLUG,Hex Hd, 5/16"-24 ORB

ASSY. - gland bleeder, Includes: Ref. 34, G32623 and G3265 dozer tilt cylinders without identification ring

1шт.

34

218-5001

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

2-1, .239" ID x .064" Thk, plug, G32623 and G3265 dozer tilt cylinders without gland identification ring

1шт.

35

D42520

PISTON ROD

ROD - piston (1-3/4" dia.) (w/o identification ring), G32623 and G3265 dozer tilt cylinders

1шт.

36

D42528

PISTON

- split (rod end) (w/o identification ring), G32623 and G3265 dozer tilt cylinders

1шт.

37

D28367

PISTON

- split (tube end), G32623 and G3265 dozer tilt cylinders without gland identification ring

1шт.

D36963

PACKING

ASSY. - piston, Includes: Ref. 38 and 39, G32623 and G3265 dozer tilt cylinders without gland identification ring

1шт.

Part of seal kit cylinder repair P/N G32627

1шт.

38

NSS

NOT SOLD SEPARAT

PACKING ASSY. - "V" type, G32623 and G3265 dozer tilt cylinders without gland identification ring

2шт.

39

NSS

NOT SOLD SEPARAT

RING - center bearing, G32623 and G3265 dozer tilt cylinders without gland identification ring

1шт.

40

D42525

TUBE

- piston tube (1-1/8 x 1-7/8 x 1/8"), G32623 and G3265 dozer tilt cylinders without gland identification ring

1шт.

41

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston tube (1-1/8 x 1-7/8 x 1/8"), G32623 and G3265 dozer tilt cylinders without gland identification ring

1шт.

42

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" RING - tube (5/8 x 13/16 x 3/32"), G32623 and G3265 dozer tilt cylinders without gland identification ring

1шт.

Part of seal kit cylinder repair P/N G32627

1шт.

43

G32626

RING

- tube "O" ring back-up, G32623 and G3265 dozer tilt cylinders without gland identification ring

2шт.

Part of seal kit cylinder repair P/N G32627

1шт.

G32627

CYLINDER

SEAL KIT - cylinder repair, Incl. Refs. 5, 6, 7, 8, 9, G33237, 20, 21, 27, 28, 29, 30, 31, D36963, 42 and 43

1шт.
