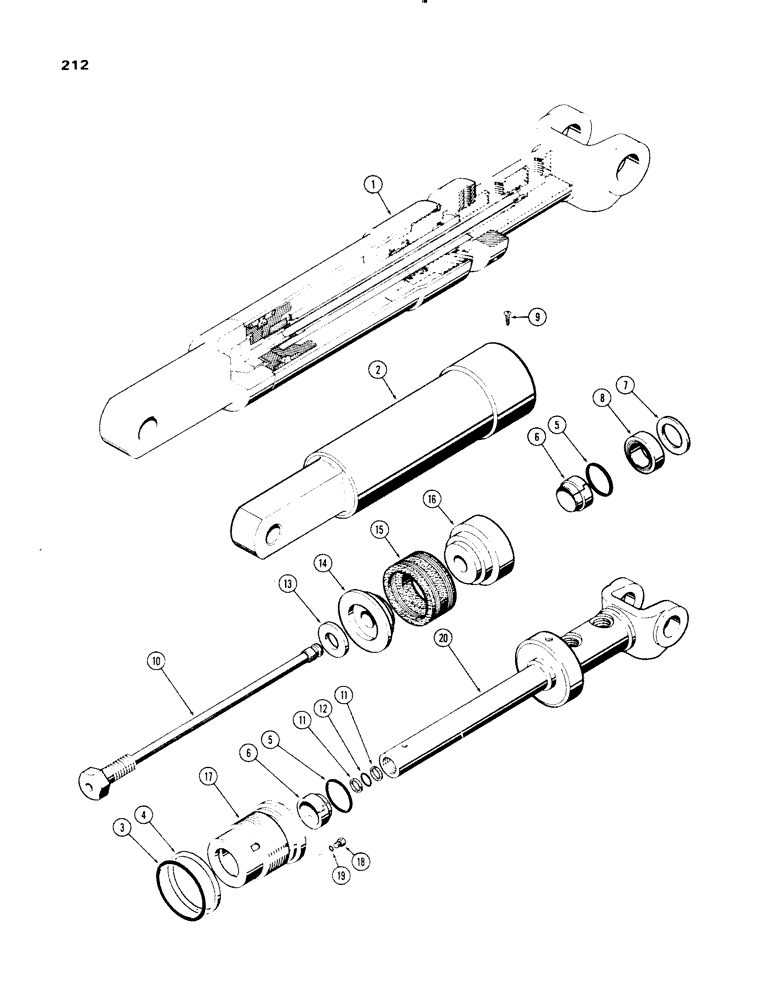

Запчасти Case 1150 (212) - TILT CYLINDER, POWER ANGLE TILT DOZER, 3-1/2" I.D. X 6" STROKE W/ SPLIT SNAP-IN OUTER ROD WIPER (07) - HYDRAULIC SYSTEM

1

D46828

CYLINDER

- std. track dozer, tilt, Includes: Ref. 2 - 20

2шт.

1

D50201

CYLINDER - wide track dozer, tilt, Includes: Ref. 2 - 20

2шт.

2

D46827

CYLINDER

TUBE - cylinder (Used with D46828 cylinder only)

1шт.

2

D50200

TUBE

- cylinder (Used with D50201 cylinder only)

1шт.

3

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

Part of Cylinder Packing Kit P/N D42873

1шт.

4

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup

1шт.

Part of Cylinder Packing Kit P/N D42873

1шт.

5

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring, wiper (if required)

2шт.

Part of Cylinder Packing Kit P/N D42873

1шт.

6

D27432

SHIM

- rod

2шт.

Part of Cylinder Packing Kit P/N D42873

1шт.

7

D28499

RING

- backup, piston packing

1шт.

Part of Cylinder Packing Kit P/N D42873

1шт.

8

D36970

CUP

PACKING - piston rod

1шт.

Part of Cylinder Packing Kit P/N D42873

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - #8 x 1/4" N.C. self-tapping

1шт.

10

D42525

TUBE

- hydraulic, piston rod (Inner)

1шт.

11

D34938

BACK-UP RING,0.827" OD

- backup

2шт.

12

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

13

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- special

1шт.

14

D28367

PISTON

- split, closed end

1шт.

15

D36963

PACKING

- piston

1шт.

16

D42528

PISTON

- split, yoke end

1шт.

17

D45267

WASHER

- packing

1шт.

18

218-5151

PLUG,Hex Hd, 5/16"-24 ORB

- bleeder, Includes: Ref. 19

1шт.

19

218-5001

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

2-1, .239" ID x .064" Thk

1шт.

20

D42520

PISTON ROD

ROD - piston, 1-3/4" dia.

1шт.

D42873

GASKET KIT

KIT - cylinder packing, Includes: Ref. 3, 4, 5, 6, 7 and 8

1шт.
