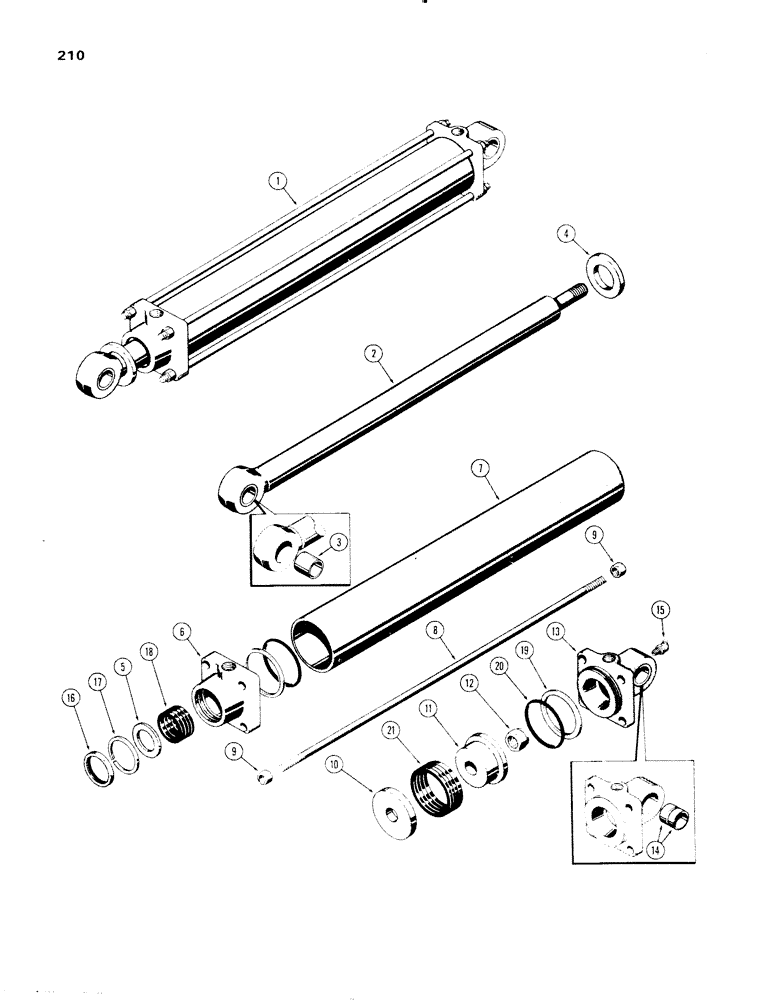

Запчасти Case 1150 (210) - POWER ANGLING CYLINDER, 3" I.D. X 33-1/4" STROKE (07) - HYDRAULIC SYSTEM

1

R19345

CYLINDER

- hydraulic, angling, Includes: Ref. 2 - 20

2шт.

2

R21042

ROD

- piston, 1-1/2" dia., Includes: Ref. 3

1шт.

3

R13096

BUSHING

- rod

1шт.

4

70324

RING

- scraper

1шт.

5

D25042

WASHER

- packing

1шт.

6

R16434

CAP

- cylinder end

1шт.

7

70345

TUBE,2.996" ID, 36.083" Length

- cylinder

1шт.

8

70347

ROD

- tie

4шт.

9

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

8шт.

10

R19908

WASHER

- retainer

1шт.

11

R14106

BLOCK ASSY.

BLOCK - piston

1шт.

12

131-15

LOCK NUT,3/4"-16, GB

NUT, LOCK, 3/4"-16, GB

1шт.

13

R18885

CAP

END - cylinder, Includes: Ref. 14

1шт.

14

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

15

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8" P.T., 45 deg.

1шт.

16

17583

WIPER SEAL

- wiper

1шт.

Part of Cylinder Packing Kit P/N D30138

1шт.

17

34039

SNAP RING,2.50", Int, #250

RING - snap, 2.50", Int, #250

1шт.

Part of Cylinder Packing Kit P/N D30138

1шт.

18

17577

PACKING

- rod

1шт.

Part of Cylinder Packing Kit P/N D30138

1шт.

19

D24986

RING

WASHER - backup, leather

2шт.

Part of Cylinder Packing Kit P/N D30138

1шт.

20

49385

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

SEAL - "O" ring

2шт.

Part of Cylinder Packing Kit P/N D30138

1шт.

21

31662

PACKING

- piston

1шт.

Part of Cylinder Packing Kit P/N D30138

1шт.

D30138

KIT

- cylinder packing, Includes: Ref. 16, 17, 18, 19, 20 and 21

1шт.
