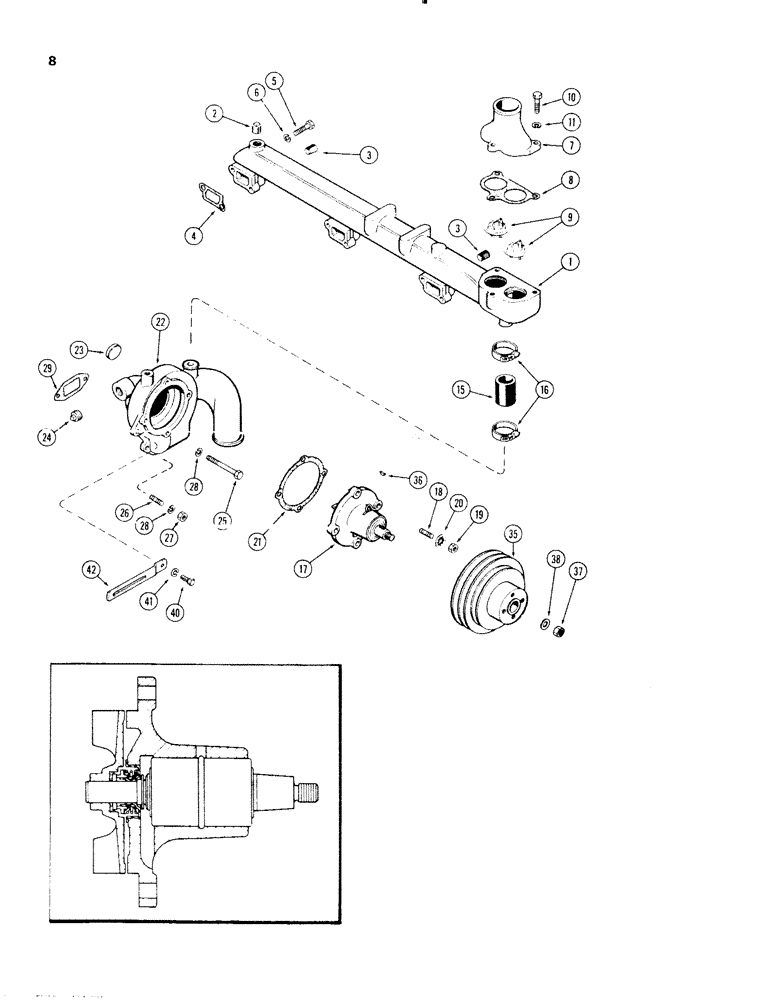

Запчасти Case 1150 (008) - WATER PUMP AND MANIFOLD, (401B) DIESEL ENGINE (01) - ENGINE
№
Артикул
Название
Примечание
Количество
2
221-4
DRAIN PLUG,Sq Hd, 1/2"-14 NPTF
PLUG - pipe, 1/2" sq. hd.
1шт.
3
221-1845
DRAIN PLUG,Hex Soc, 3/4"-14, NPTF
PLUG - pipe (3/4" hex. socket head)
2шт.
4
A58637
MANIFOLD GASKET
- water manifold
3шт.
5
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
- 3/8" x 1-1/2" N.C. hex.
3шт.
5
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
3шт.
6
92-6
LOCK WASHER,3/8"
6шт.
7
A58638
HOUSING
- thermostat
1шт.
8
A58639
GASKET
- thermostat housing
1шт.
9
A57641
THERMOSTAT
- (180deg.)
2шт.
10
13-618
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5
3шт.
11
92-6
LOCK WASHER,3/8"
3шт.
15
A58737
HOSE,30.99mm ID x 134.62mm L, SAE 20R4
- water by-pass (1-1/4" I.D. x 5")
1шт.
16
214-256
HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm
CLAMP - hose, 1-3/16 to 1-3/4"
2шт.
17
A61266
PUMP
ASSY. - water
1шт.
18
A62234
STUD
- pump to body (3/8" N.C. x 1-5/16")
4шт.
19
25-146
JAM NUT,Jam, 3/8"-16, G5
- 3/8" N.C. hex jam
4шт.
20
193-30
LOCK WASHER,Int Tooth, 3/8"
WASHER, LOCK, Int Tooth, 3/8"
4шт.
21
A58646
GASKET
-, Serial Range: pump-body
1шт.
2
A59220
BODY
ASSY. - water pump
1шт.
23
A58568
PLUG,Cup, 1 3/8", Stainless
- body (1-25/64" cup type
1шт.
24
221-1005
PLUG - pipe, 3/4" sq. hd.
1шт.
25
13-618
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5
2шт.
26
G11204
STUD
- housing to block (3/8" N.C. x 1-1/2")
2шт.
27
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex.
2шт.
28
92-6
LOCK WASHER,3/8"
4шт.
29
A58649
GASKET
-, Serial Range: housing-block
1шт.
35
A60504
PULLEY
PULLETY - water pump & fan
1шт.
36
126-116
WOODRUFF KEY,#9, 3/16" x 3/4", HT
Pulley #9, 3/16" x 3/4", HT
1шт.
37
131-1106
LOCK NUT,1/2"-20, GB
NUT, LOCK, 1/2"-20, GB
1шт.
38
A58651
WASHER
- pulley nut (17/32 x 1-1/16 x 3/32")
1шт.
40
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
1шт.
41
92-6
LOCK WASHER,3/8"
1шт.
42
A62429
STRAP
- alternator adjusting (Replaced A34548)
1шт.
Выбрано товаров: 34
