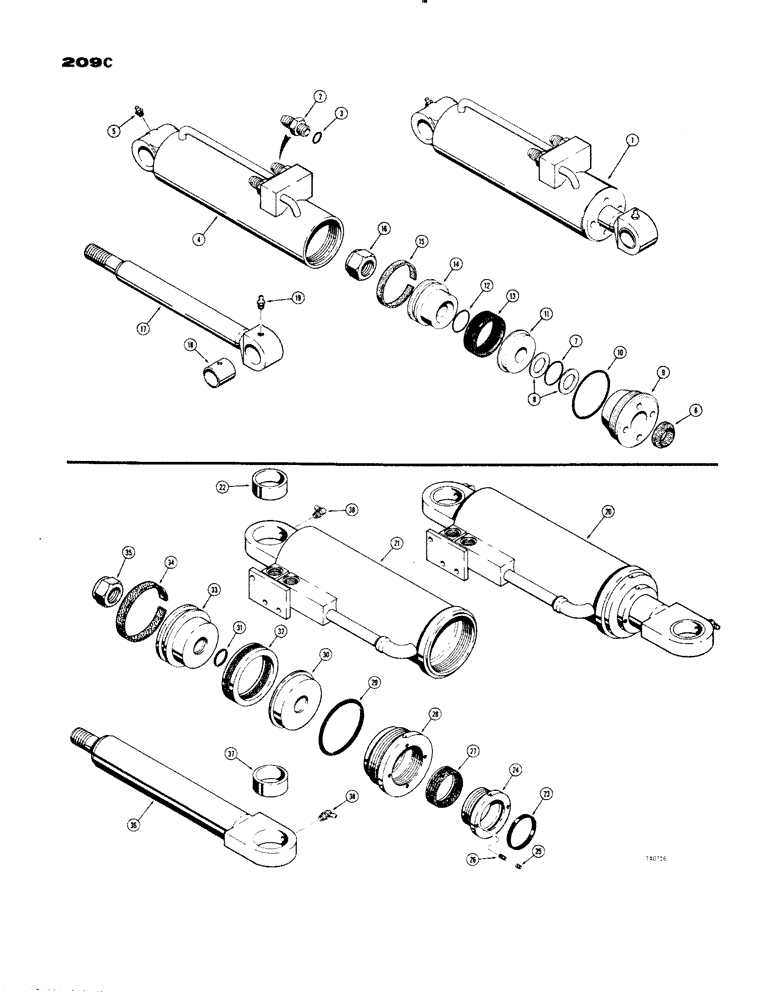

Запчасти Case 1150 (209C) - FELLER BUNCHER CYLINDERS, S504748 GRAB ARM CYLINDER (07) - HYDRAULIC SYSTEM

1

S504748

CYLINDER - grab arm (3-1/2" I.D. x 9.70" stroke), Includes: Ref. 2 - 19

2шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

FITTING - tube (1/2" JIC), Incl. Ref 3

2шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring, 218-5059 fitting

1шт.

4

S216140

TUBE - cylinder, Includes: Ref. 5

1шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

6

A18690

RING

WIPER RING - rod, outer

1шт.

7

A18687

O-RING

SEAL - "O" ring, rod

1шт.

8

A18686

WASHER

RING - backup for rod seal (Leather)

2шт.

9

A18689

GLAND

- cylinder

1шт.

10

A30389

O-RING,3.359" ID x 3.637" OD x 0.139"

SEAL - "O" ring, gland

1шт.

11

S49783

PISTON - split, rod end half

1шт.

12

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

SEAL - "O" ring, split piston

1шт.

13

A18684

PACKING

- piston, chevron

1шт.

14

A18682

PISTON

- split, nut end half

1шт.

15

A18693

RING

- wear, piston

1шт.

16

D35645

X

NUT - lock (1-1/8" - 12 NF)

1шт.

17

S202796M1

ROD - piston (1-1/4" dia.), Includes: Ref. 18 and 19

1шт.

18

S64396

BUSHING - rod

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

20

S502258M2

CYLINDER - shear (6-1/4" I.D. x 15" stroke), , Includes: Ref. 21 - 38, S502258M2

1шт.

21

S211538

TUBE - cylinder, , Includes: Ref. 22, S502258M2 shear 25.62" L

1шт.

22

S202195

BUSHING

- tube, S502258M2 shear cylinder

1шт.

23

S43987

RING

WIPER RING - rod, outer, S502258M2 shear cylinder

1шт.

24

S28247

GLAND

- cylinder, small, S502258M2 shear

1шт.

25

178-846

SET SCREW,Hex Soc, #10-32 x 1/4"

SCREW - set, #10 - 32 NC x 1/4" (Oval point), S502258M2 shear cylinder

2шт.

26

178-839

SET SCREW,Hex Soc, #10-32 x 5/8"

SCREW - set, #10 - 32 NF x 5/8" (Socket point), S502258M2 shear cylinder

2шт.

27

S25164M1

X

PACKING - rod, chevron, S502258M2 shear cylinder

1шт.

28

S28257M2

GLAND

- cylinder, large, S502258M2 shear

1шт.

29

S6028

O-RING,5.725" ID x 6.275" OD x 0.275"

SEAL - "O" ring, gland, S502258M2 shear cylinder

1шт.

30

S29929

PISTON - split, rod end half, S502258M2 shear cylinder

1шт.

31

A31183

O-RING,0.21" Thk x 1.725" ID, -327, Cl 5, 75 Duro

SEAL - "O" ring, split piston, S502258M2 shear cylinder

1шт.

32

S23717M1

PACKING

- piston, chevron, S502258M2 shear cylinder

1шт.

33

S28239

PISTON - split, nut end half, S502258M2 shear cylinder

1шт.

34

S23716

SEAL

RING - wear, piston, S502258M2 shear cylinder

1шт.

35

S80914

NUT

- lock (1-3/4" - 14 UNS), S502258M2 shear cylinder

1шт.

36

S211542M1

ROD - piston (3-1/2" dia.), Includes: Ref. 37, S502258M2 shear cylinder

1шт.

37

S202195

BUSHING

- rod, S502258M2 shear cylinder

1шт.

38

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , S502258M2 Shear cylinder 90º, 1/8" NPT x .84" lg

2шт.
