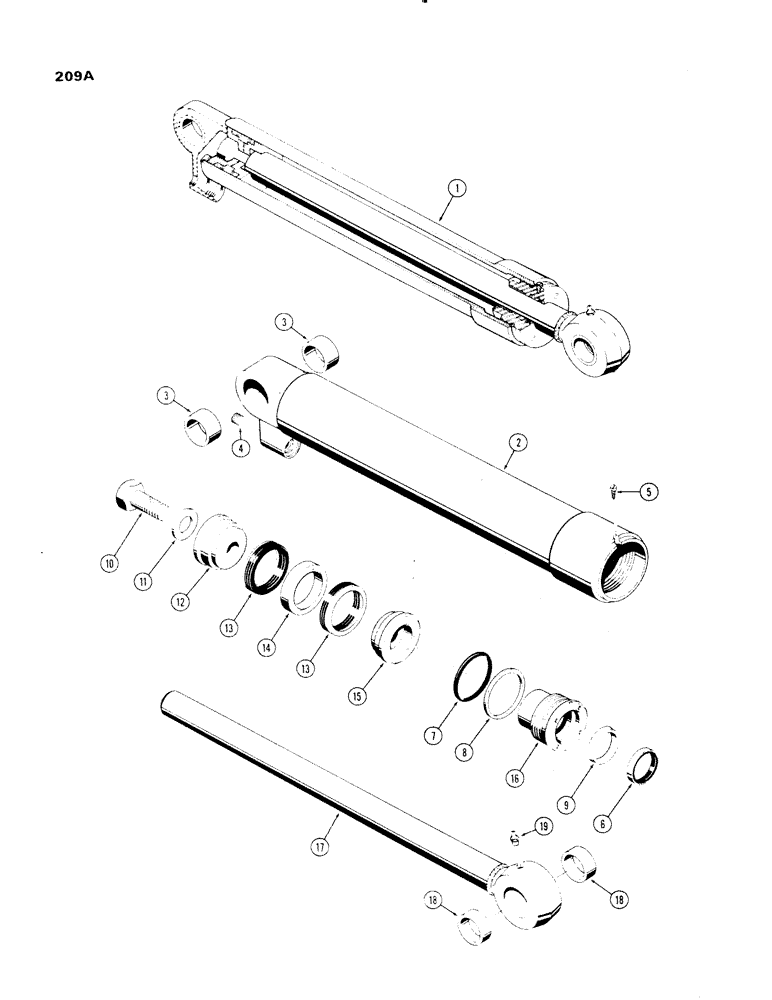

Запчасти Case 1150 (209A) - CLAM CYLINDER, 4-1/2" I.D. X 10-7/16" STROKE, USED ON D51605 4-IN-1 BUCKET (07) - HYDRAULIC SYSTEM

1

G32279

CYLINDER - clam, R.H., Includes: Ref. 2 - 19

1шт.

1

G32278

CYLINDER

- clam, L.H., Includes: Ref. 2 - 19

1шт.

2

G32282

TUBE

- R.H. cylinder, Includes: Ref. 3 and 4

1шт.

2

G32281

HYD TUBE,4.495" OD x 19.83" L

TUBE - L.H. cylinder, Includes: Ref. 3 and 4

1шт.

3

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- R.H. and L.H. cylinder

2шт.

4

221-844

PLUG,Hex Soc, 1/2"-14

- 1/2" hex. sckt. hd., pipe

1шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - #8 x 1/4" N.C. self-tapping

1шт.

6

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - rod, outer

1шт.

Part of Cylinder Packing Kit P/N G32285

1шт.

7

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

Part of Cylinder Packing Kit P/N G32285

1шт.

8

G32284

BACK-UP RING

- backup, gland seal

1шт.

Part of Cylinder Packing Kit P/N G32285

1шт.

9

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

SEAL - rod

1шт.

Part of Cylinder Packing Kit P/N G32285

1шт.

10

D38425

BOLT

- special

1шт.

11

D95033

WASHER

- special

1шт.

12

D46931

PISTON

- split, bolt end

1шт.

13

D47205

PACKING

- piston, chevron

2шт.

14

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - centering

1шт.

15

D46425

PISTON

- split, rod end

1шт.

16

D49504

GLAND - packing

1шт.

17

G32280

ROD

- piston, 2-1/4" dia., Includes: Ref. 18

1шт.

18

G32712

- rod

2шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

1шт.

G32285

SEAL

KIT - cylinder packing, Includes: Ref. 6, 7, 8 and 9

1шт.
