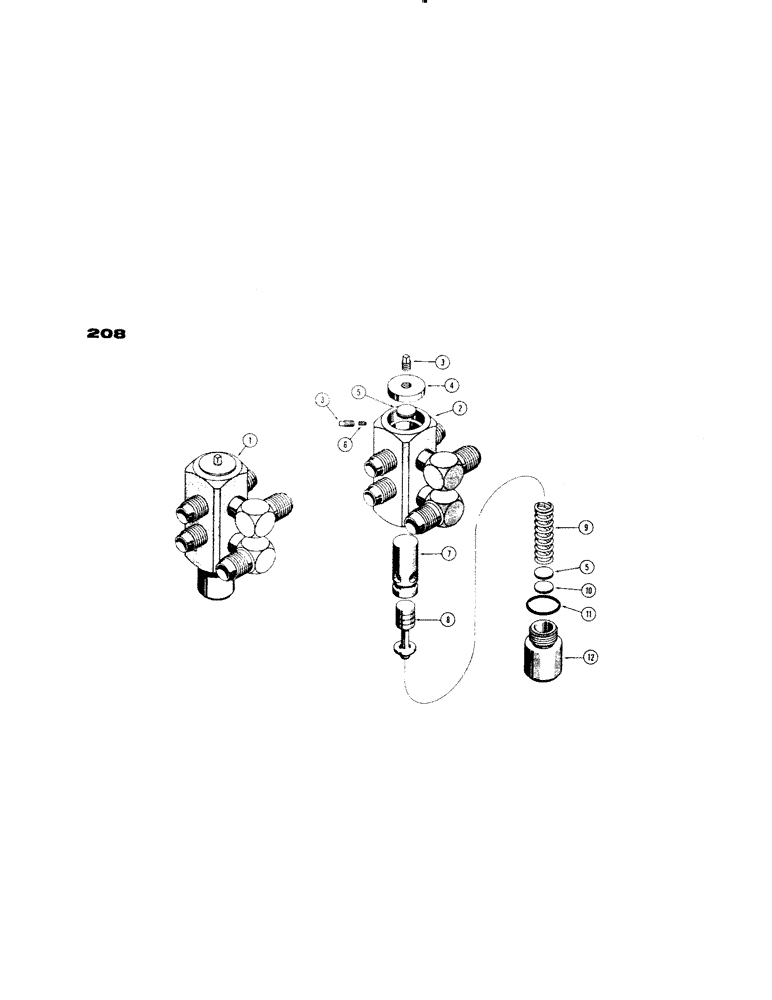

Запчасти Case 1150 (208) - D38826 DROTT RELIEF VALVE (07) - HYDRAULIC SYSTEM

1

D38826

HYDRAULIC VALVE

VALVE - relief, Drott bucket, Includes: Ref. 2 - 12

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

3

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, square socket head (1/8" NPT)

2шт.

4

NSS

NOT SOLD SEPARAT

PLUG - end, valve

1шт.

5

A17707

PLUG

- adjustment

1шт.

6

83-65

SET SCREW,Hex Soc, 3/8"-16 x 5/16"

SHSS - 3/8" - 16 NC x 5/16"

1шт.

7

A17703

SEAT

- valve

1шт.

8

A17704

PLUNGER

- valve

1шт.

9

A17705

SPRING

- valve

1шт.

10

D38831

PLUG

SLUG - adjustment

1шт.

11

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

SEAL - "O" ring

1шт.

12

A17708

CAP - relief valve

1шт.
