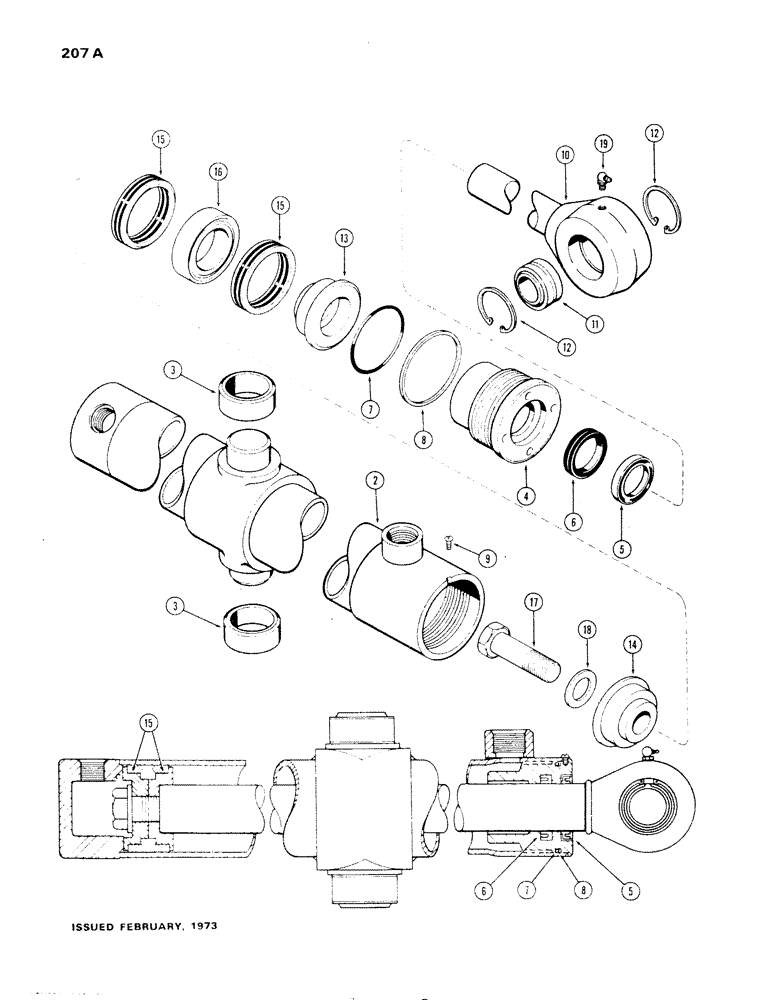

Запчасти Case 1150 (207A) - G33814 AND G33815 LOADER LIFT CYLINDERS, 5-1/2" DIA. CYLDR. W/ 30-5/8" STROKE W/ SCREW-IN TYPE GLAND (07) - HYDRAULIC SYSTEM

G33814

CYLINDER

ASSY. - lift, right hand, Includes: Ref. 2 - 19

1шт.

G33815

CYLINDER BLOCK

CYLINDER ASSY. - lift, left hand, Includes: Ref. 2 - 19

1шт.

2

G33818

TUBE

ASSY. - cylinder body, right hand, Includes: Ref. 3

1шт.

2

G33819

TUBE ASSY. - cylinder body, left hand, Includes: Ref. 3

1шт.

3

D33635

BUSHING,63.75mm ID x 76.2mm OD x 25.4mm L

- tube trunnion

2шт.

4

G33824

GLAND

ASSY. - w/bushing, Includes: Ref. 5 - 8

1шт.

5

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER - piston rod, outer (2-1/2 x 3 x 5/16")

1шт.

Part of seal kit cylinder repair P/N G33823

1шт.

6

D45571

ROD

SEAL - piston rod (2-1/2 x 3 x 7/16")

1шт.

Part of seal kit cylinder repair P/N G33823

1шт.

7

A55800

O-RING,0.139" Thk x 5.484" ID, -254, Cl 5, 75 Duro

"O" RING - gland (5-1/2 x 5-3/4 x 1/8")

1шт.

Part of seal kit cylinder repair P/N G33823

1шт.

8

G34260

RING,5.484" ID x 5.762" OD

- gland "O" ring back-up

1шт.

Part of seal kit cylinder repair P/N G33823

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

10

G34151

ROD

ASSY. - piston (2-1/2" dia.), Includes: Ref. 11 and 12

1шт.

11

D23601

HOUSING

BUSHING - piston rod (self-aligning)

1шт.

12

NLS

NO LONGER SERVICED

RING - snap, 3.156", Int, #315, bushing

2шт.

13

D49164

PISTON

- split (rod end)

1шт.

14

D49165

PISTON

- split (bolt end)

1шт.

15

D47207

GASKET KIT

PACKING ASSY. - piston ("V" type)

2шт.

Part of seal kit cylinder repair P/N G33823

1шт.

16

D47212

BEARING WASHER,4.256" ID x 5.491" OD x 0.748"

RING - center bearing

1шт.

17

28-2456

BOLT,Hex, 1-1/2" - 12 x 3-1/2", Gr 8

- piston (1-1/2 x 3-1/2" N.F. hex.)

1шт.

18

G32666

WASHER

- piston bolt (1-5/8 x 2-3/4 x 9/64")

1шт.

19

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

G33823

KIT

SEAL KIT - cylinder repair, Incl. Refs. 5, 6, 7, 8 and 15

1шт.
