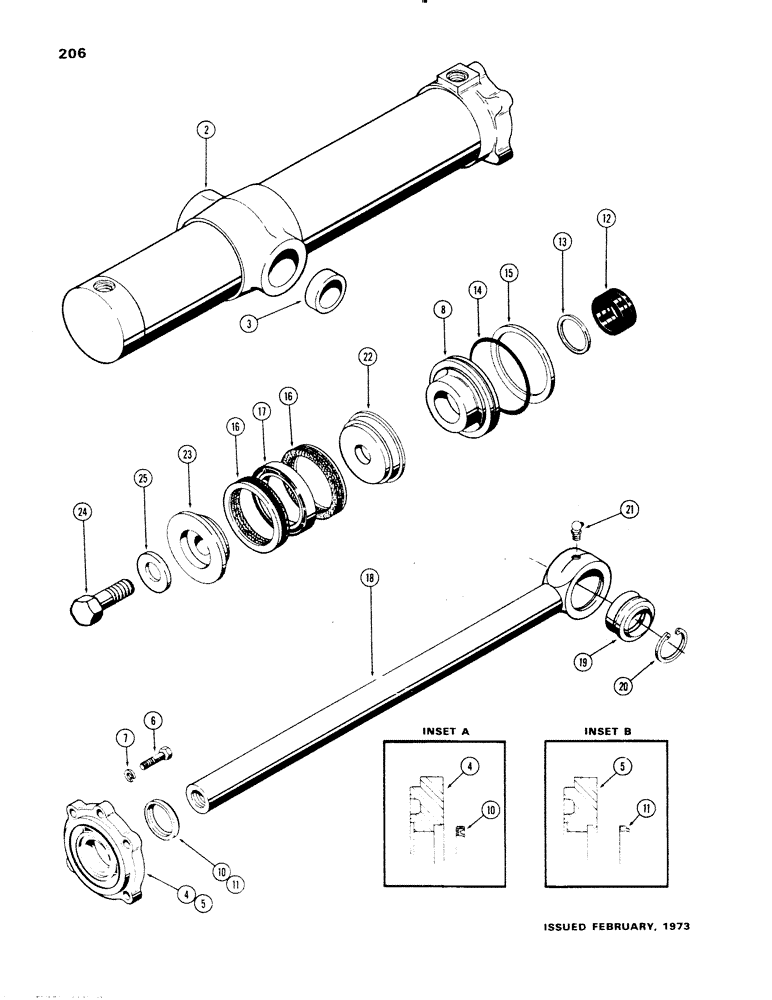

Запчасти Case 1150 (206) - D49528 AND D49529 LOADER LIFT CYLDRS, 5-1/2" DIA. CYLDR. W/ 30-1/2" STROKE W/ BOLT-ON TYPE END CAP (07) - HYDRAULIC SYSTEM

D49529

CYLINDER ASSY.

- lift, right hand (with U-Type outer piston rod wiper), Includes: Ref. 2 - 25

1шт.

D43353

CYLINDER

ASSY. - lift, R.H. (Order D49529 cyl.) (with step type outer piston rod wiper), Includes: Ref. 2 - 25

1шт.

D49528

CYLINDER

ASSY. - lift, left hand (with U-type outer piston rod wiper), Includes: Ref. 2 - 25

1шт.

D43352

CYLINDER

ASSY. - lift, L.H. (Order D49528 cyl.) (with step type outer piston rod wiper), Includes: Ref. 2 - 25

1шт.

2

D36153

TUBE ASSY. - cylinder body, right hand, Includes: Ref. 3

1шт.

2

D36154

TUBE

ASSY. - cylinder body, left hand, Includes: Ref. 3

1шт.

3

D33635

BUSHING,63.75mm ID x 76.2mm OD x 25.4mm L

- tube trunnion

2шт.

4

D49510

CAP

- end (used with D49528 & D49529 cylinders) (for U-type wiper) (See Inset A)

1шт.

5

D24431

RING

CAP - end (used with D43352 & D43353 cylinders) (for step type wiper) (See Inset B) (Order 1-D49510 cap & 1-D95146 wiper)

1шт.

6

114-621

BOLT

- cap to tube (5/8 x 1-3/4" N.F. hex.)

5шт.

7

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

8

D43225

PACKING

GLAND - packing

1шт.

D44117

KIT

PACKING KIT - cylinder repair, Includes: Ref. 10 - 16

1шт.

10

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER - piston rod (2-1/2 x 3 x 5/16" U-Type) (used with D49510 cap) (See Inset A)

1шт.

11

D43162

WIPER

- piston rod (2-1/2 x 3 x 1/2" step type) (used with D24431 cap) (See Inset B)

1шт.

12

D36108

PACKING

- piston rod

1шт.

13

D36172

WASHER

RING - backup, piston rod packing

1шт.

14

D36103

O-RING,0.139" Thk x 5.609" ID, -255, Cl 5, 75 Duro

"O" RING - gland (5-5/8 x 5-7/8 x 1/8")

1шт.

15

D42454

RING

- gland "O" ring back-up

1шт.

16

D47207

GASKET KIT

PACKING ASSY. - piston

2шт.

17

D47212

BEARING WASHER,4.256" ID x 5.491" OD x 0.748"

RING - center bearing

1шт.

18

D36146

ROD

ASSY. - piston (2-1/2" dia.), Includes: Ref. 19 and 20

1шт.

19

D23601

HOUSING

BUSHING - piston (self-aligning)

1шт.

20

49477

RING, SNAP

RING - snap, 3.156", Int, #315, bushing

2шт.

21

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

22

D36109

PISTON

- split (rod end)

1шт.

23

D36110

PISTON

- split (bolt end)

1шт.

24

D36104

BOLT

- piston (1-1/2 x 3-1/2" N.F. hex.)

1шт.

25

D36478

WASHER

- piston bolt (1-1/2 x 3 x 5/32")

1шт.
