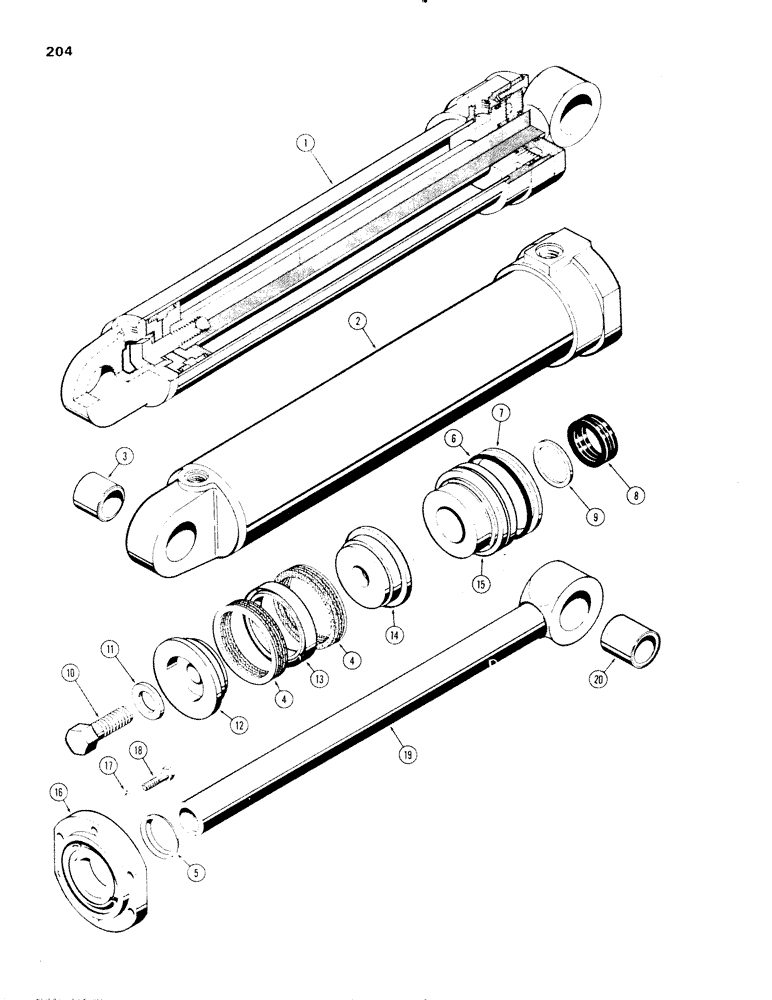

Запчасти Case 1150 (204) - LOADER BUCKET CYLINDER, USED PRIOR TO TRAC. SN. 7300094, 5" I.D. X 23-1/2" STROKE W/PRESS-IN "STEP" (07) - HYDRAULIC SYSTEM

1

D49177

CYLINDER

- hydraulic loader tilt, Includes: Ref. 2 - 20

2шт.

2

D36319

TUBE

- cylinder, Includes: Ref. 3

1шт.

3

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

- tube

1шт.

4

D47206

PACKING

- piston

2шт.

5

D39360

WIPER

- rod, press in "step" type

1шт.

Part of Cylinder Packing Kit P/N D44109

1шт.

6

D36183

O-RING,5.109" ID x 5.387" OD

SEAL - "O" ring, gland

1шт.

Part of Cylinder Packing Kit P/N D44109

1шт.

7

D42453

RING

- backup

1шт.

Part of Cylinder Packing Kit P/N D44109

1шт.

8

D38939

PISTON

PACKING - piston rod

1шт.

Part of Cylinder Packing Kit P/N D44109

1шт.

9

D38940

RING

- backup, piston packing

1шт.

Part of Cylinder Packing Kit P/N D44109

1шт.

10

D43746

SCREW,Hex, 1 1/4" - 12 x 3.50", Gr 8

BOLT - special, rod

1шт.

11

D95033

WASHER

- bolt

1шт.

12

D46932

PISTON

- split, bolt end

1шт.

13

D47211

BEARING WASHER,95.28mm ID x 126.69mm OD x 19mm Thk

RING - piston packing

1шт.

14

D46426

PISTON

- split, rod end

1шт.

15

D43157

GLAND

- packing

1шт.

16

D43156

CAP - cylinder end

1шт.

17

92-8

LOCK WASHER,1/2"

6шт.

18

114-424

X

BOLT - 1/2 x 1-3/4" N.F. hex

6шт.

19

D43152

ROD

- piston, 2-1/4" dia., Includes: Ref. 20

1шт.

20

D43223

BUSHING

- rod

1шт.

D44109

KIT

- cylinder packing, Includes: Ref. 4, 5, 6, 7, 8 and 9

1шт.
