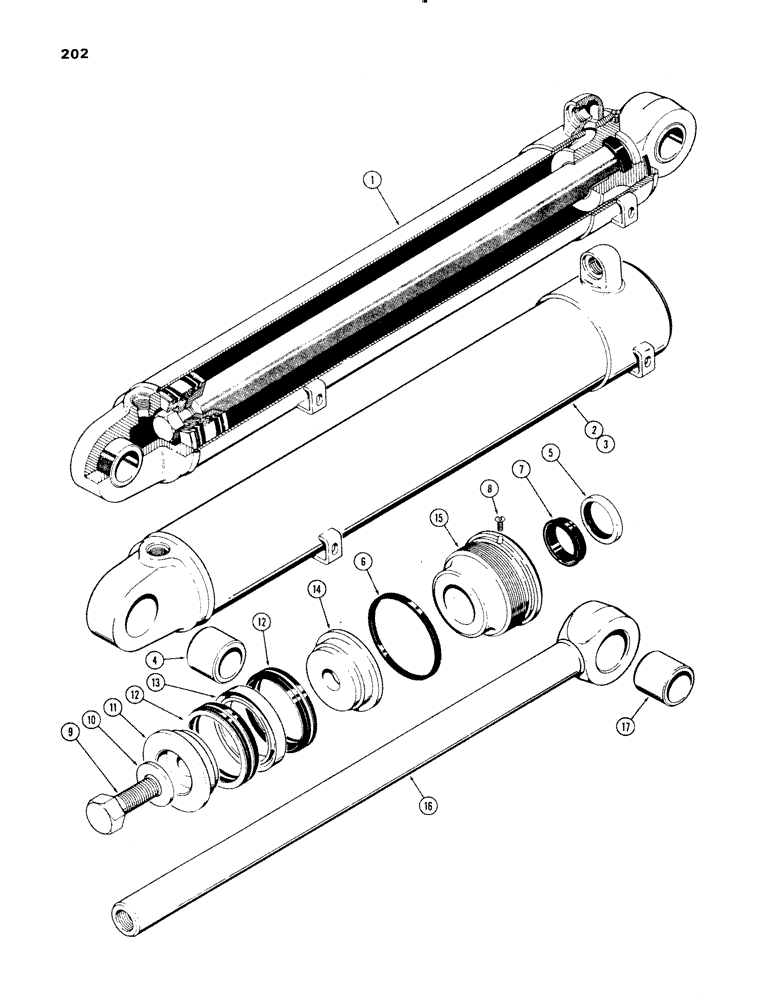

Запчасти Case 1150 (202) - LOADER BUCKET CYLINDER, 1ST USED TRAC. SER. #7300094, 5" I.D. X 30-1/2" STROKE (07) - HYDRAULIC SYSTEM

1

D49147

CYLINDER ASSY.

CYLINDER - loader tilt, R.H., Includes: Ref. 2 - 17

1шт.

1

D49148

CYLINDER ASSY.

CYLINDER - loader tilt, L.H., Includes: Ref. 2 - 17

1шт.

2

D49269

TUBE

- cylinder, R.H., Includes: Ref. 4

1шт.

3

D49270

TUBE

- cylinder, L.H., Includes: Ref. 4

1шт.

4

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

- tubes, cylinder

1шт.

5

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - rod

1шт.

Part of Cylinder Packing Kit P/N D47650

1шт.

6

D44723

SEAL

- gland

1шт.

Part of Cylinder Packing Kit P/N D47650

1шт.

7

D39359

RUBBER SEAL

SEAL - rod

1шт.

Part of Cylinder Packing Kit P/N D47650

1шт.

8

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - #8 x 1/4" N.C. self-tapping

1шт.

Part of Cylinder Packing Kit P/N D47650

1шт.

9

D43746

SCREW,Hex, 1 1/4" - 12 x 3.50", Gr 8

BOLT - piston retaining

1шт.

10

G32351

WASHER

- bolt

1шт.

11

D46932

PISTON

- split, bolt end

1шт.

12

D47206

PACKING

- piston

2шт.

Part of Cylinder Packing Kit, P/N G32696

1шт.

13

D47211

BEARING WASHER,95.28mm ID x 126.69mm OD x 19mm Thk

RING - packing, piston

1шт.

14

D46426

PISTON

- split, rod end

1шт.

15

D49213

GLAND

- packing

1шт.

16

D49150

ROD

- piston (2-1/4" dia.), Includes: Ref. 17

1шт.

17

D43223

BUSHING

- rod, 2-1/4" long (if used)

1шт.

17

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- rod, 1-1/8" long (if used)

2шт.

D47650

KIT

- cylinder packing, Includes: Ref. 5, 6, 7 and 8

1шт.

G32696

KIT

- cylinder packing (Can use in place of D47650 kit) (also includes Ref. 12)

1шт.
