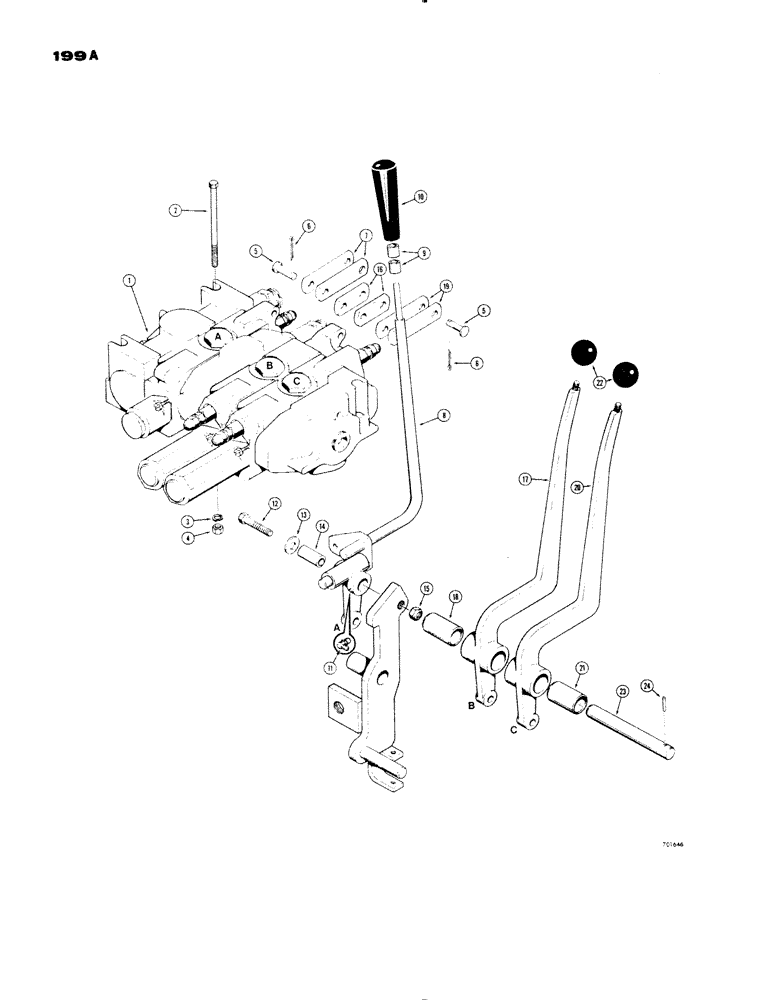

Запчасти Case 1150 (199A) - EQUIPMENT CONTROL VALVE AND LEVERS, 3 SPOOL FELLER BUNCHER (07) - HYDRAULIC SYSTEM

1

D50853

VALVE - hydraulic control (Parts list figure 229A)

1шт.

2

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

3шт.

3

92-8

LOCK WASHER,1/2"

3шт.

4

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

3шт.

5

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis

6шт.

6

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

6шт.

7

D36230

LEVER

LINK - lever to valve, A spool

2шт.

8

D50852

LEVER - control, A spool

1шт.

9

D38662

RING

- spacer

2шт.

10

D37550

KNOB

HANDLE - control tower

1шт.

11

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

12

14-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

HHCS - 1/2" - 20 NF x 2-1/2"

1шт.

13

195-33

WASHER,1/2"

- plain () 1/2"

1шт.

14

D40893

BUSHING

- linkage bracket

1шт.

15

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex., jam (1/2" - 20 NF)

1шт.

16

R22269

LINK

- valve to lever, B spool

2шт.

17

D43165

LEVER

- control, B spool, Includes: Ref. 18

1шт.

18

D36231

BUSHING

- lever

1шт.

19

D38065

LINK - valve to lever, C spool

2шт.

20

D43166

LEVER - control, C spool, Includes: Ref. 21

1шт.

21

D36231

BUSHING

- lever

1шт.

22

70213

KNOB

- control levers

2шт.

23

D42983

SHAFT

PIN - control lever

1шт.

24

138-102

LOCK PIN,3/16" x 1 3/4", Slotted

PIN, 3/16" x 1 3/4", Slotted

1шт.
