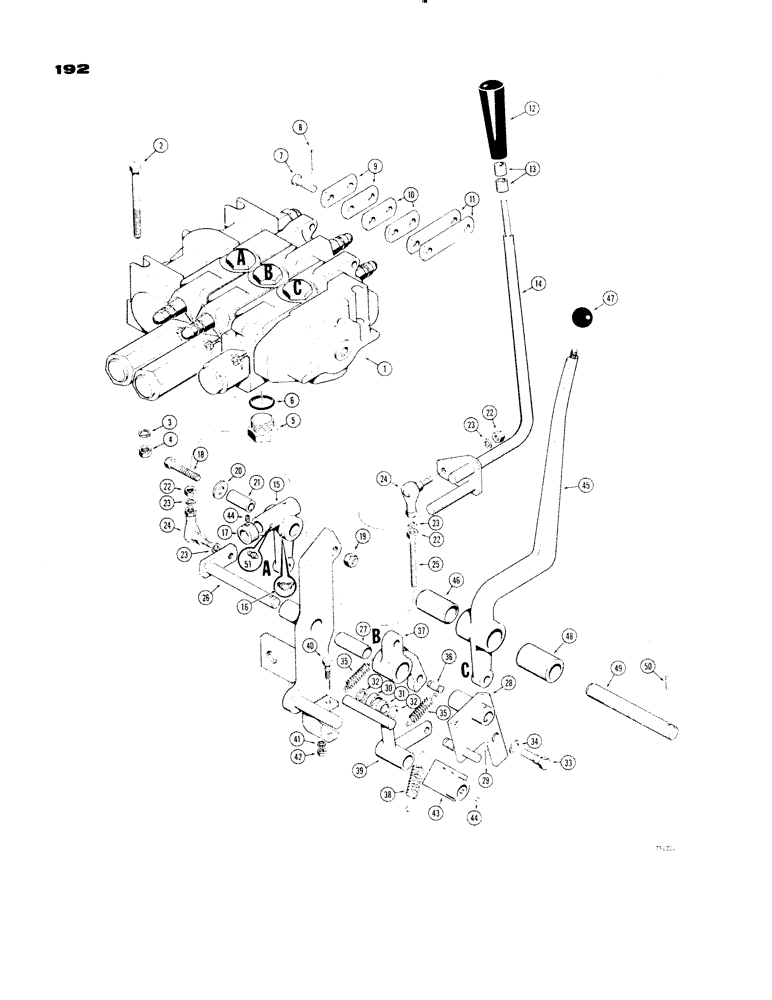

Запчасти Case 1150 (192) - EQUIPMENT CONTROL VALVES AND LEVERS, 3 SPOOL LOADER (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - hydraulic (See figure 224 and 226 for proper valve)

1шт.

2

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

3шт.

3

92-8

LOCK WASHER,1/2"

3шт.

4

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

3шт.

5

273916

PLUG,Hex, 1-5/16" - 12 ORB

Hydraulic (If used), Includes Ref. 6 Hex Hd, 1 5/16"-12 ORB

2шт.

6

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

7

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis

4-6шт.

8

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

4-6шт.

9

R22269

LINK

- connecting, No. 1 spool

2шт.

10

D45014

LINK

- connecting, No. 2 spool

2шт.

11

D36230

LEVER

LINK - connecting (If used)

2шт.

12

D37550

KNOB

HANDLE - control lever

1шт.

13

D38662

RING

BUSHING - spacer

2шт.

14

D42994

LEVER

- control, loader lift and tilt

1шт.

15

D40877

PIVOT

LEVER - pivot

1шт.

16

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

17

D43620

COLLAR

- control lever

1шт.

18

14-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

HHCS - 1/2" - 20 NF x 2-1/2"

1шт.

19

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex., jam (1/2" - 20 NF)

1шт.

20

195-33

WASHER,1/2"

- plain () 1/2"

1шт.

21

D40893

BUSHING

- lever

1шт.

22

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

3шт.

23

92-6

LOCK WASHER,3/8"

4шт.

24

D45509

BALL

JOINT

2шт.

25

D40917

STUD

BOLT - stud

1шт.

26

D42975

PIN

- linkage

1шт.

27

D42980

BUSHING

- linkage bracket

1шт.

28

D42972

LEVER

- linkage

1шт.

29

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

D44353

BUSHING

ROLLER ASSEMBLY - switch actuating, Includes: Ref. 30 and 31

1шт.

30

NSS

NOT SOLD SEPARAT

ROLLER - switch

1шт.

31

D44352

BUSHING

- roller

1шт.

32

A31197

WASHER

- special

2шт.

33

D40909

BOLT (SPREADER)

BOLT - stop, special

1шт.

34

92-8

LOCK WASHER,1/2"

1шт.

35

D40889

SPRING

- lever return

2шт.

36

D40901

PIN

- spring anchor

1шт.

37

D40929

LEVER

- linkage

1шт.

38

D40891

SPRING

- latch, lever return

1шт.

39

D42988

LEVER - latch

1шт.

40

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(Detent adjustment) Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

41

92-5

LOCK WASHER,5/16"

1шт.

42

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

43

D42993

PLATE - switch

1шт.

44

83-54

SET SCREW,Hex Soc, 5/16"-18 x 1/4", Cup Pt

1шт.

45

D43165

LEVER

- control, clam or ripper (If used), Includes: Ref. 46

1шт.

46

D36231

BUSHING

- lever

1шт.

47

70213

KNOB

- control lever (If used)

1шт.

48

F62203

BUSHING

SPACER - lever (If used)

1шт.

49

D42983

SHAFT

PIN - mounting (If used)

1шт.

50

138-102

LOCK PIN,3/16" x 1 3/4", Slotted

PIN, 3/16" x 1 3/4", Slotted

1шт.

51

219-103

FITTING

- grease, straight (1/8" NPT)

1шт.
