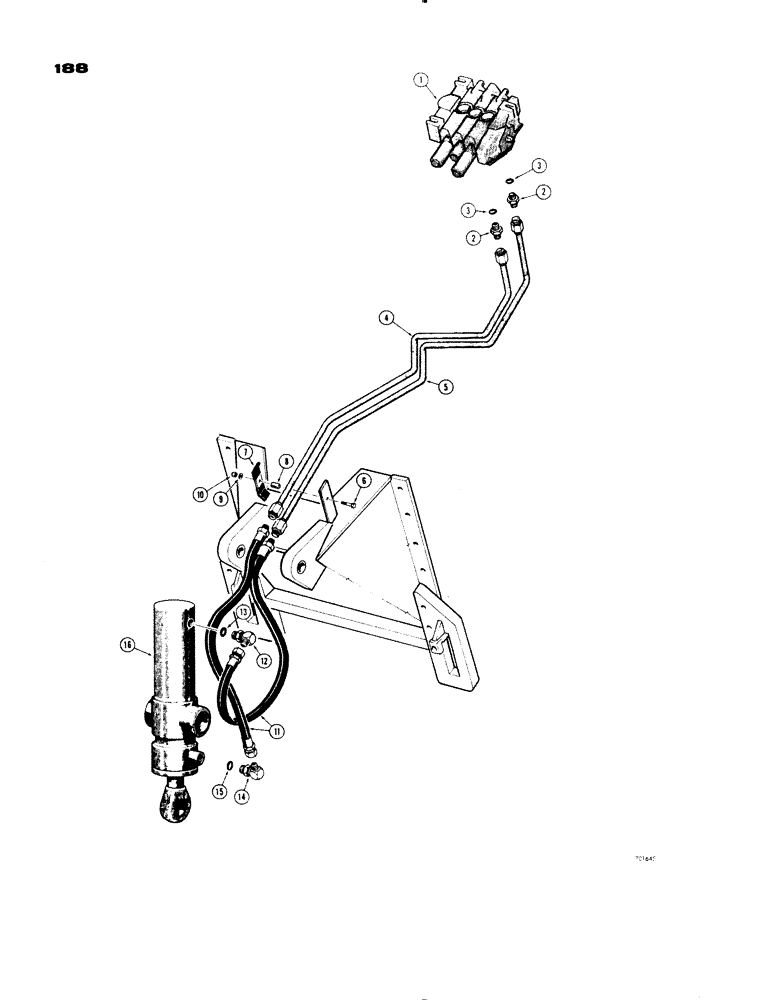

Запчасти Case 1150 (188) - RIPPER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - equipment control (See figures 192 thru 198 for proper valve)

1шт.

2

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight male, Includes: Ref. 3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

4

D36003

TUBE

- valve to cylinder, closed end (3 spool valve)

1шт.

4

D36007

TUBE - valve to cylinder, closed end (4 spool valve)

1шт.

5

D36005

TUBE

- valve to cylinder, rod end (3 spool valve)

1шт.

5

D36009

TUBE

- valve to cylinder, rod end (4 spool valve)

1шт.

6

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

7

D33316

CLAMP

- tube

1шт.

8

D33552

BUSHING

SPACER - clamp

1шт.

9

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

1шт.

10

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

1шт.

11

NLS

NO LONGER SERVICED

- valve to ripper (19-5/16" long)

2шт.

12

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 deg., Incl. Ref. 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

14

R20839

FITTING

ELBOW - restrictor, 90 deg. (5/8" JIC x 5/8" JIC), Includes: Ref. 15

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

16

REF

INSTRUCTION

CYLINDER - ripper (See figures 218 and 219A for cylinders)

1шт.
