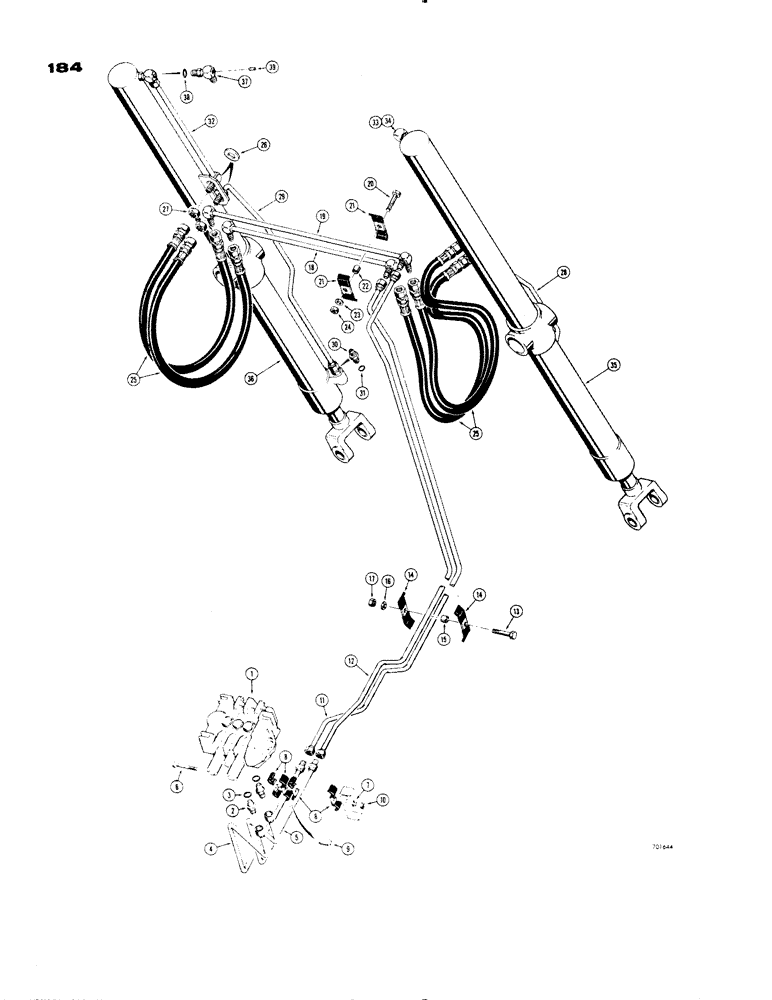

Запчасти Case 1150 (184) - DOZER LIFT HYDRAULICS (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - equipment control (See figures 196 and 198 for proper valve)

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

4

D36017

TUBE

- valve to cylinder, rod end

1шт.

5

D36019

TUBE

- valve to cylinder, closed end

1шт.

6

13-564

BOLT,Hex, 5/16" - 18 x 4", Gr 5

HHCS - 5/16" - 18 NC x 4"

1шт.

7

195-21

WASHER,5/16"

- plain () 5/16"

1шт.

8

R15257

CLAMP

- tube

4шт.

9

D34089

SPACER

- clamp

1шт.

10

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

1шт.

11

D49139

TUBE

- valve to cylinder, rod end

1шт.

12

D49137

TUBE

- valve to cylinder, closed end

1шт.

13

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

14

D33316

CLAMP

- tube

2шт.

15

D36040

BUSHING

SPACER - clamp

1шт.

16

195-21

WASHER,5/16"

- plain () 5/16"

1шт.

17

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

1шт.

18

D49133

TUBE

- valve to L.H. cylinder, rod end, Serial Range: -7301835

1шт.

18

R25593

TUBE

- valve to L.H. cylinder, rod end, Start Serial: 7301835

1шт.

19

D49130

TUBE - valve to L.H. cylinder, closed end

1шт.

20

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

21

D33316

CLAMP

- tube

4шт.

22

D36040

BUSHING

SPACER - clamp

2шт.

23

195-21

WASHER,5/16"

- plain () 5/16"

2шт.

24

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

2шт.

25

35543

HOSE

- valve to cylinder, 28" long, Serial Range: -7301835

4шт.

25

R25709

TUBE

HOSE - valve to cylinder, 26" long, Start Serial: 7301835

4шт.

26

D49345

WASHER

- special

4шт.

27

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

4шт.

28

D49142

TUBE - R.H. cylinder, rod end (Power Tilt Dozer)

1шт.

Ref. 28 & 28A are L.H.tube.

1шт.

28

D49124

TUBE - R.H. cylinder, rod end (Power Angle Tilt Dozer)

1шт.

29

D49141

TUBE - L.H. cylinder, rod end (Power Tilt Dozer)

1шт.

Ref. 29 & 29A are R.H. tube.

1шт.

29

D49123

TUBE

- R.H. cylinder, rod end (Power Angle Tilt Dozer)

1шт.

30

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, straight, Includes: Ref. 31

2шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

32

D49127

TUBE - cylinder, closed end (Power Tilt Dozer)

2шт.

32

D49282

TUBE

- cylinder, closed end (Power Angle Tilt Dozer)

2шт.

33

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 deg., male, Incl. Ref. 34

1шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

35

REF

INSTRUCTION

CYLINDER - lift, R.H. (Power Tilt Dozer) See figures 217C and 217E for proper cylinder

1шт.

35

REF

INSTRUCTION

CYLINDER - lift, R.H. (Power Angle Tilt Dozer) See figure 216 and 217A for cylinders

1шт.

36

REF

INSTRUCTION

CYLINDER - lift, L.H. (Power Tilt Dozer) See figures 217C and 217E for proper cylinders

1шт.

36

REF

INSTRUCTION

CYLINDER - lift, L.H. (Power Angle Tilt Dozer) See figures 216 and 217A for cylinders

1шт.

37

R19576

FITTING

ELBOW - 90 deg., special, Includes: Ref. 38

1шт.

38

219-5007

SEAL - "O" ring

1шт.

39

221-11

PLUG,Sq Hd, 1/8"-27

- pipe (1/8" NPT)

1шт.
