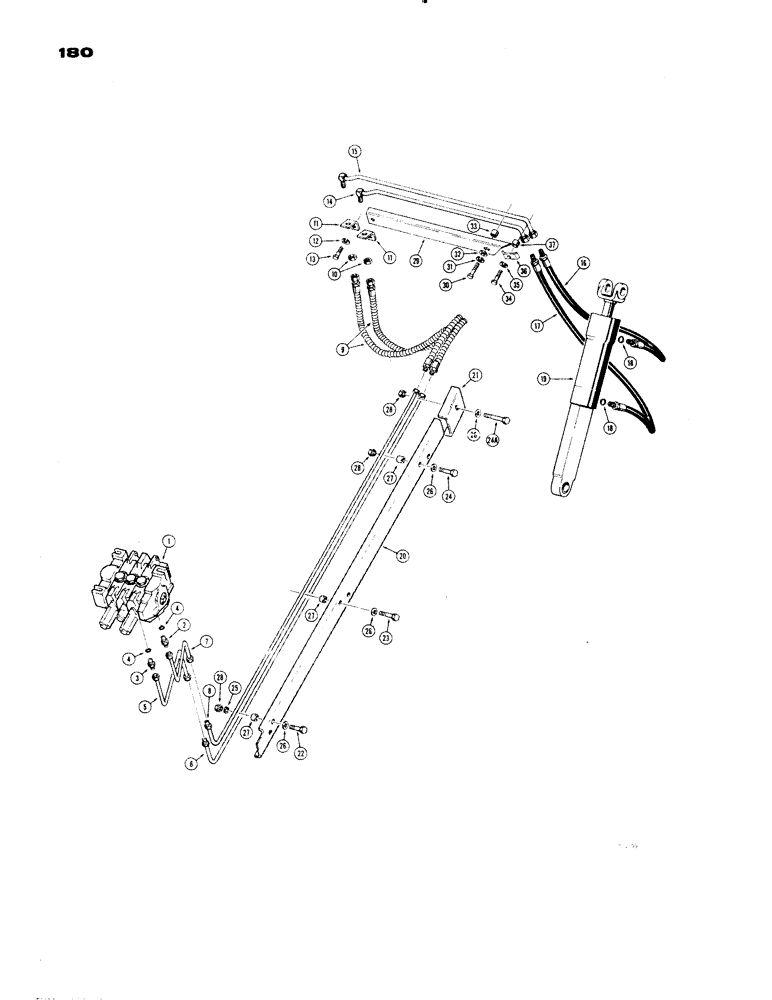

Запчасти Case 1150 (180) - POWER TILT DOZER HYDRAULICS, POWER TILT HYDRAULICS (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - equipment control (See figures 196 and 198 for proper valve)

1шт.

2

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - male, straight, Includes: Ref. 4

1шт.

3

D45321

ADAPTER

- restrictor, special, Includes: Ref. 4

1шт.

4

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring, 218-5078 and D45321 adapters

1шт.

5

D46174

TUBE

- valve to cylinder, rear (Closed end)

1шт.

6

D45280

TUBE

- valve to cylinder, front (Closed end)

1шт.

7

D46172

TUBE

- valve to cylinder, rear (Rod end)

1шт.

8

D45122

TUBE

- valve to cylinder, front (Rod end)

1шт.

9

D45114

HOSE

- tube to blade (45-1/2" long)

2шт.

10

50875

NUT

- lock, special

2шт.

11

D48233

BRACKET - hose mounting

2шт.

12

92-8

LOCK WASHER,1/2"

2шт.

13

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2" - 13 NC x 3/4"

2шт.

14

D48277

TUBE - on blade, lower (Closed end)

1шт.

15

D48278

TUBE

- on blade, upper (Rod end)

1шт.

16

D28081

HOSE

- to tilt cylinder, rod end (22" long)

1шт.

17

D33516

HOSE ASSY.

HOSE - to tilt cylinder, closed end (27" long), Includes: Ref. 18

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (D28081 and D33516 hoses)

1шт.

19

REF

INSTRUCTION

CYLINDER - tilt (See figures 214 and 215A for cylinders)

1шт.

20

D45132

GUARD ASSY.

GUARD - tubing, side (Rear)

1шт.

21

D49176

GUARD - tubing, side (Front)

1шт.

22

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

23

D45289

BOLT - special

1шт.

24

D45290

BOLT

- special

1шт.

24a

D45289

BOLT - special

1шт.

25

92-8

LOCK WASHER,1/2"

1шт.

26

195-33

WASHER,1/2"

- plain () 1/2"

4шт.

27

D44228

BUSHING

SPACER - tubing guard

3шт.

28

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

3шт.

29

D48279

GUARD - tubing, dozer blade

1шт.

30

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

31

92-8

LOCK WASHER,1/2"

2шт.

32

195-33

WASHER,1/2"

- plain () 1/2"

2шт.

33

D44228

BUSHING

SPACER - tubing guard

2шт.

34

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

35

92-8

LOCK WASHER,1/2"

1шт.

36

38363

CLAMP - tubing

1шт.

37

D44228

BUSHING

SPACER - clamp

1шт.
