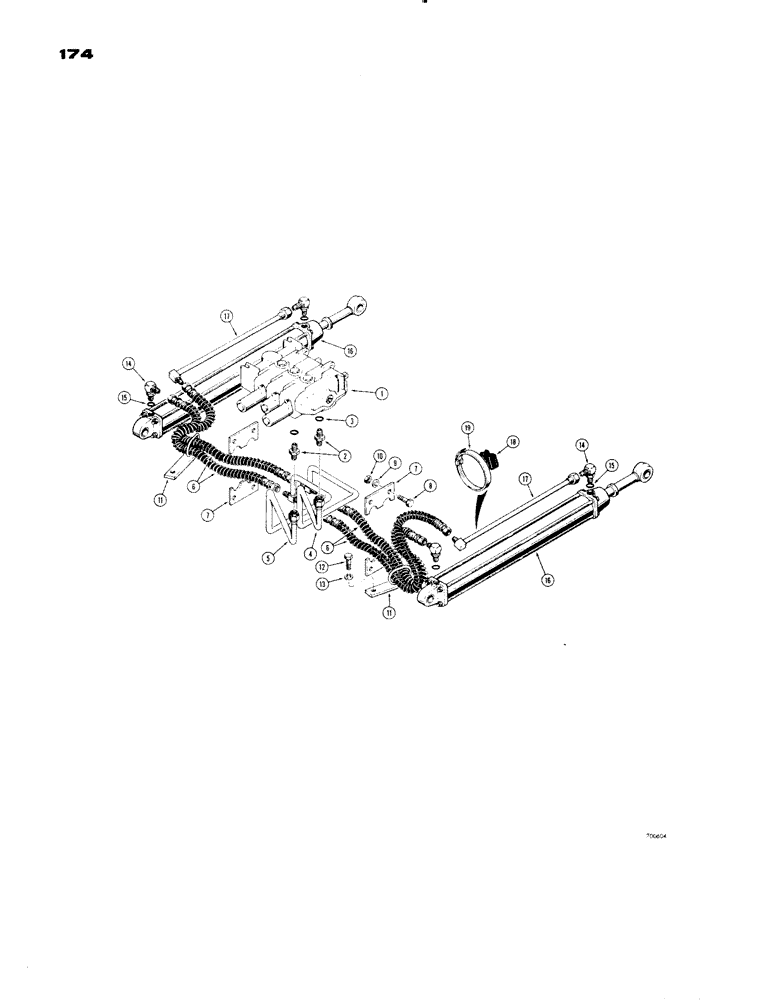

Запчасти Case 1150 (174) - POWER ANGLE TILT DOZER HYDRAULICS, POWER ANGLING CIRCUIT (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - equipment control (See figures 196 and 198 for proper valve)

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight male, Incl. Ref. 3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

4

D46176

TUBE - valve to R.H. cylinder rear port, L.H. cylinder front port

1шт.

5

D46178

TUBE

- valve to R.H. cylinder front port, L.H. cylinder rear port

1шт.

6

D47246

HOSE

- valve to cylinders, 51" long (Standard track dozer)

4шт.

6

D47535

HOSE

- valve to cylinders, 55" long (Wide track dozer)

4шт.

7

R19592

CLAMP - hose

4шт.

8

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

8шт.

9

95-6

WASHER,3/8"

- standard wrot () 3/8"

8шт.

10

131-6

LOCK NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC)

8шт.

11

D40386

GUIDE - hose

2шт.

12

13-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

2шт.

13

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

14

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male, 90 deg., Incl. Ref. 15

4шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

16

R19345

CYLINDER

- moldboard angling, 3" I.D. x 33-1/4" stroke (Parts list figure 210)

2шт.

17

D47247

TUBE

-, Serial Range: valve-cylinder

2шт.

18

D38648

BLOCK

SADDLE - tube mounting

2шт.

19

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube

2шт.
