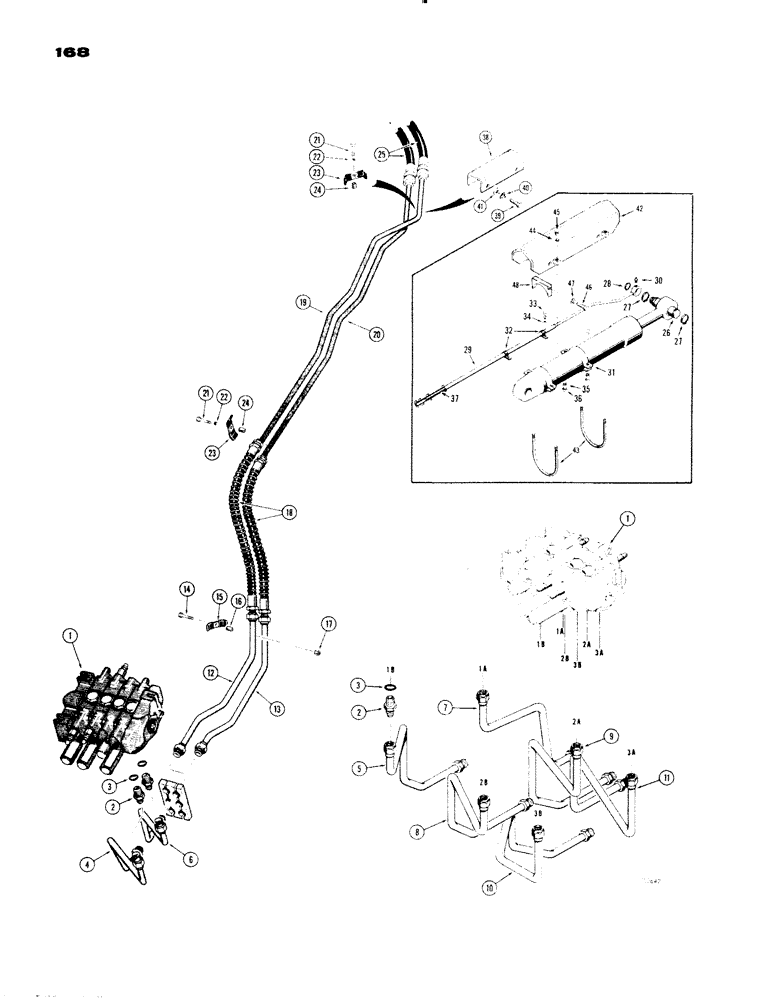

Запчасти Case 1150 (168) - OPTIONAL LOADER HYDRAULICS, CLAM TYPE BUCKET OR FELLER BUNCHER (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control (See figures 224, 226 and 229A for proper valve)

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, male, Incl. Ref. 3

2-6шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

4

D36032

TUBE

- valve to bucket (Rear Port)

1шт.

5

D50840

TUBE - valve to buncher (Rear Port)

1шт.

6

D36034

TUBE

- valve to bucket (Front Port)

1шт.

7

D50842

TUBE

- valve to buncher (Front Port)

1шт.

8

D50844

TUBE - valve to loader lift circuit, buncher only (Rear Port)

1шт.

9

D50846

TUBE - valve to loader lift circuit, buncher only (Front Port)

1шт.

10

D50850

TUBE - valve to loader tilt circuit, buncher only (Rear Port)

1шт.

11

D50848

TUBE - valve to loader tilt circuit, buncher only (Front port)

1шт.

12

D36036

TUBE - valve to bucket or buncher (Upper)

1шт.

13

D36038

TUBE - valve to bucket or buncher (Lower)

1шт.

14

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

15

D33316

CLAMP

- tube

1шт.

16

D36040

BUSHING

SPACER - tube

1шт.

17

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

1шт.

18

D37141

HOSE

- valve to bucket or feller buncher (32-1/4" long)

2шт.

19

D41485

TUBE

- valve to bucket (Upper)

1шт.

19

R24093

TUBE - valve to Feller Buncher (Upper)

1шт.

20

D41487

TUBE

- valve to bucket (Lower)

1шт.

20

R24095

TUBE - valve to Feller Buncher (Lower)

1шт.

21

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16"-18 NC x 1-1/2"

2шт.

22

92-5

LOCK WASHER,5/16"

2шт.

23

D33316

CLAMP

- hose

2шт.

24

D36040

BUSHING

SPACER - hose

2шт.

25

D32411

HOSE

- valve to bucket (42" long)

2шт.

25

R24091

HOSE - valve to feller buncher, guarded (32" long)

2шт.

26

D36051

PIN

- lever to tilt cylinder, 4 in 1 bucket or feller buncher indicator and guards

1шт.

27

D26919

SNAP RING,#200, Ext

RING - snap, , cylinder pin, 4 in 1 bucket or feller buncher indicator and guards #200, Ext

2шт.

28

D25279

SNAP RING,M35, Int

RING - retaining, leveling gauge, 4 in 1 bucket or feller buncher indicator and guards

1шт.

29

D39208

TUBE - indicator, bucket and buncher position, 4 in 1, feller and guards

1шт.

30

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT), 4 in 1 bucket or feller buncher indicator and guards

1шт.

31

D36050

CLAMP

- cylinder, 4 in 1 bucket or feller buncher indicator and guards

4шт.

32

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- tube, 4 in 1 bucket or feller buncher indicator and guards

2шт.

33

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

4 in 1 bucket or feller buncher indicator and guards Hex, 3/8"-16 x 1 5/8", G5

4шт.

34

195-25

WASHER,3/8"

- flat (), 4 in 1 bucket or feller buncher indicator and guards 3/8"

2шт.

35

92-6

LOCK WASHER,3/8"

4 in 1 bucket or feller buncher indicator and guards 3/8"

4шт.

36

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), 4 in 1 bucket or feller buncher indicator and guards

4шт.

37

D38488

ELECTRICAL GAUGE

ROD - leveling gauge, 4 in 1 bucket or feller buncher indicator and guards

1шт.

38

R24090

GUARD - tube, 4 in 1 bucket or feller buncher indicator and guards

1шт.

39

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4 in 1 bucket or feller buncher indicator and guards Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

40

92-5

LOCK WASHER,5/16"

4 in 1 bucket or feller buncher indicator and guards 5/16"

3шт.

41

195-21

WASHER,5/16"

- plain (), 4 in 1 bucket or feller buncher indicator and guards 5/16"

3шт.

42

R24088

GUARD - tilt cylinders, 4 in 1 bucket or feller buncher indicator and guards

2шт.

43

R24086

BOLT - "U", 5/16" - 18 NC, 4 in 1 bucket or feller buncher indicator and guards

4шт.

44

92-5

LOCK WASHER,5/16"

4 in 1 bucket or feller buncher indicator and guards 5/16"

8шт.

45

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC), 4 in 1 bucket or feller buncher indicator and guards

8шт.

46

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4 in 1 bucket or feller buncher indicator and guards Hex, 1/2"-13 x 1", G5, Full Thd

8шт.

47

92-8

LOCK WASHER,1/2"

4 in 1 bucket or feller buncher indicator and guards 1/2"

8шт.

48

R24085

SUPPORT - guard, 4 in 1 bucket or feller buncher indicator and guards

4шт.
