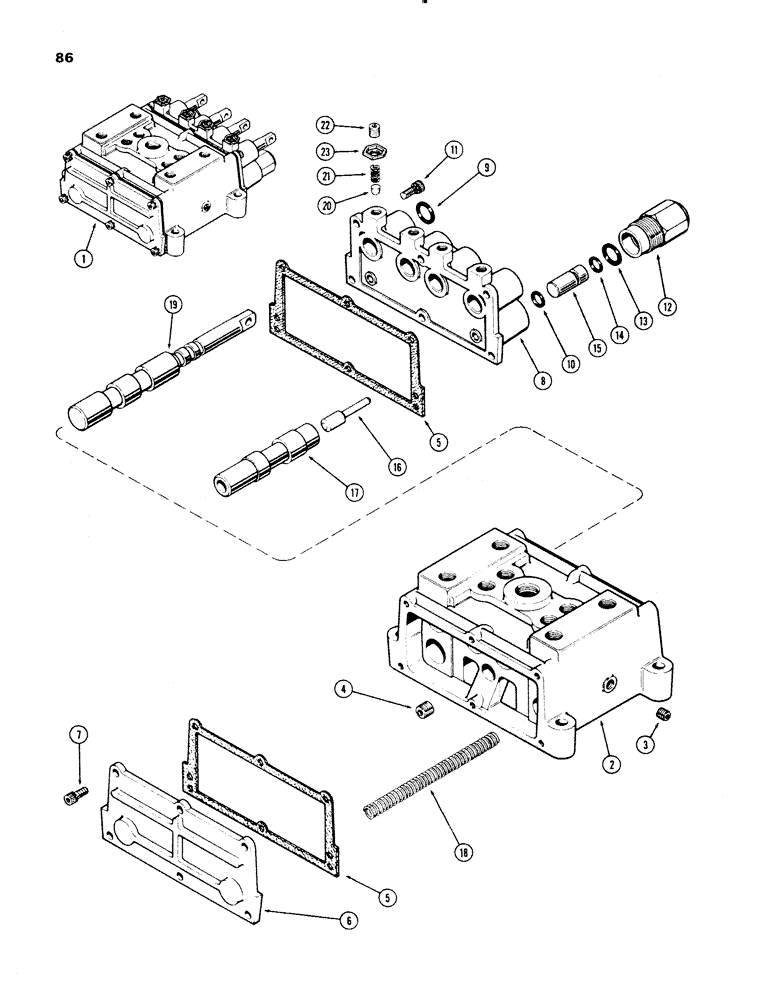

Запчасти Case 1150 (086) - R20723 VALVE (07) - HYDRAULIC SYSTEM

1

R20723

VALVE

ASSY. - transmission control (4 spool), Includes: Ref. 2 - 23

1шт.

2

R21379

HOUSING

BODY - control valve

1шт.

3

221-1849

PLUG

- pipe, 1/8" hex. sckt. hd.

2шт.

4

221-42

X,Sltd, 1/4" NPT

PLUG - pipe, 1/4" hex. sckt. hd.

1шт.

5

71113

GASKET

- cover, front & rear

2шт.

6

R21380

COVER - control valve, rear

1шт.

7

193-511

HEX SOC SCREW,Sems, 1/4"-28 x 5/8"

SCREW ASSY. - rear cover, 1/4 x 5/8" N.F., 12 pt. sckt. hd.

6шт.

8

R13942

COVER

ASSY. - valve, front, Includes: Ref. 9 and 10

1шт.

9

71121

WIPER SEAL,15.88mm ID x 20.78mm OD x 2.74mm Thk

- oil, shifter shaft spool (5/8 x 13/16 x 3/32")

4шт.

10

51200266

SEAL

- oil, brake valve spool (1/4 x 1/2 x 1/8")

2шт.

11

193-511

HEX SOC SCREW,Sems, 1/4"-28 x 5/8"

SCREW ASSY. - front cover, 1/4 x 5/8" N.F., 12 pt. sckt. hd.

6шт.

12

A50455

HOUSING

ASSY. - brake piston, Includes: Ref. 13

2шт.

13

71121

WIPER SEAL,15.88mm ID x 20.78mm OD x 2.74mm Thk

- oil (5/8 x 13/16 x 3/32")

1шт.

14

71131

RING

"O" RING - oil seal, brake valve (27/64 x 5/8 x 7/64")

2шт.

15

A50457

PISTON

- brake valve (1-19/32" long)

2шт.

16

71141

ROD

- push, brake valve

2шт.

17

74916

SPOOL

- brake valve

2шт.

18

71125

SPRING

- brake valve spool

2шт.

19

G107659

ROD

SPOOL ASSY. - valve

4шт.

20

71120

VALVE

DETENT - valve spool

4шт.

21

71119

SPRING

- spool detent

4шт.

22

178-655

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

SCREW - set, 3/8 x 1/2" N.C. sckt. hd. oval pt.

4шт.

23

131-407

LOCK NUT,Pal, 3/8" - 16, 0.145" High

set screw PAL, 3/8"-16

4шт.
