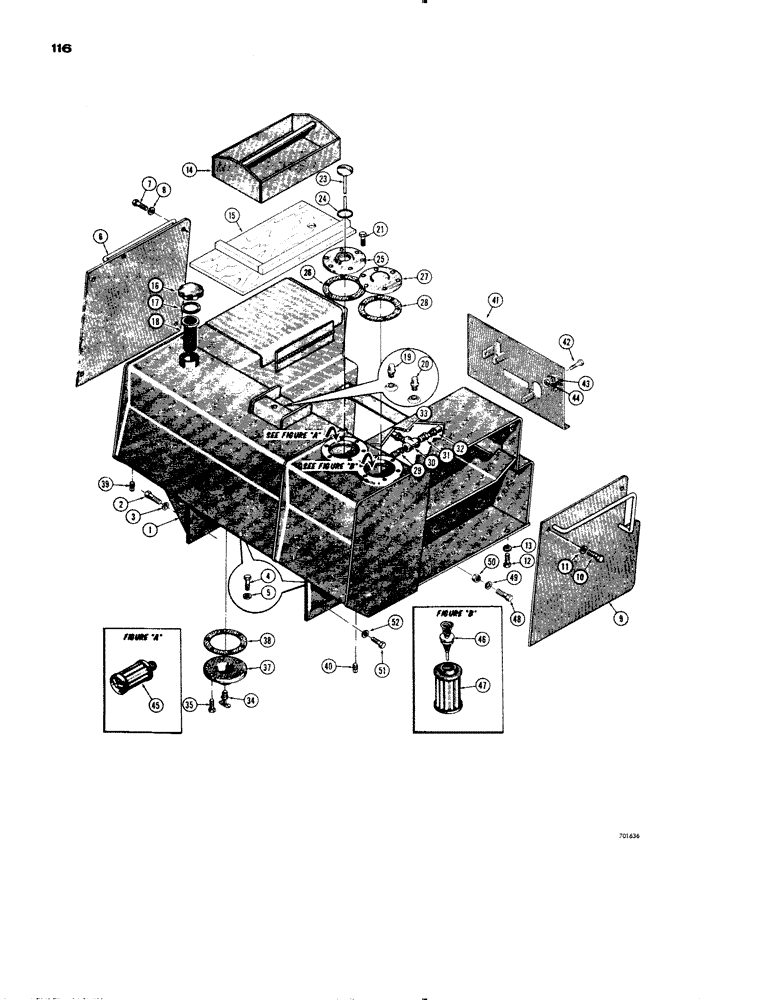

Запчасти Case 1150 (116) - FUEL AND HYDRAULIC TANK ASSEMBLIES (07) - HYDRAULIC SYSTEM

1

D42959

SEAT AND TANK - crawler

1шт.

2

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

3шт.

3

A28084

WASHER

- special

3шт.

4

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

6

D36330

PLATE

- side, L.H.

1шт.

7

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

8

92-8

LOCK WASHER,1/2"

4шт.

9

D36275

PLATE - side, R.H.

1шт.

10

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

11

92-8

LOCK WASHER,1/2"

2шт.

12

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

13

92-8

LOCK WASHER,1/2"

2шт.

14

D39415

TRAY - tool

1шт.

15

D40248

BOARD

- bottom

1шт.

16

D31747

COVER

CAP - fuel tank

1шт.

17

D34975

GASKET

- cap

1шт.

18

D36346

STRAINER ELEMENT

STRAINER - fuel

1шт.

19

D33027

BREATHER

VALVE - air inlet, fuel tank

1шт.

20

D33028

VALVE

- relief, fuel tank

1шт.

21

D50550

BOLT

- special

12шт.

22

RESERVED

1шт.

23

D36276

DIPSTICK

- hydraulic oil

1шт.

24

A7552

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

SEAL - "O"ring

1шт.

25

D34977

CAP

COVER - hydraulic tank

1шт.

26

D34978

GASKET

- cover

1шт.

27

D34976

COVER - hydraulic tank

1шт.

28

D34978

GASKET

- cover

1шт.

29

221-130

PIPE,Nipple, 1/4" NPT x 7/8"

NIPPLE - pipe, reducing

1шт.

30

221-431

TEE

- pipe, reducing

1шт.

31

221-51

SUN VISOR,Hex, 1/4" x 1/8" NPT

BUSHING - pipe, 1/4" NPT x 1/8" NPT

1шт.

32

D38663

VENT

VALVE - relief, hydraulic tank

1шт.

33

R15538

VALVE

- air inlet, hydraulic tank

1шт.

34

217-81

VALVE

DRAIN COCK - fuel tank

1шт.

35

D50550

BOLT

- special

6шт.

36

RESERVED

1шт.

37

D34979

COVER

- fuel tank drain

1шт.

38

D50547

GASKET,1.52mm Thk

- cover

1шт.

39

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, square head (1/2" NPT)

1шт.

40

221-15

PLUG,Sq Hd, 3/4"-14

- pipe, square head (3/4" NPT)

1шт.

41

D42963

PLATE - heel

1шт.

42

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

43

92-8

LOCK WASHER,1/2"

4шт.

44

25-108

NUT,1/2"-13, G5

- hex (1/2" - 13 NC)

2шт.

45

D42995

FILTER

- hydraulic tank, suction line

1шт.

46

D35996

VALVE PRESSURE RELIE

VALVE - pressure relief

1шт.

47

D35995

STRAINER ELEMENT

FILTER - hydraulic tank, return line

1шт.

48

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

2шт.

49

A28084

WASHER

- special

4шт.

50

25-1010

NUT,5/8"-11, G5

2шт.

51

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

3шт.

52

A28084

WASHER

- special

3шт.

53

D42979

BRACKET - linkage, valve (Not shown)

1шт.
