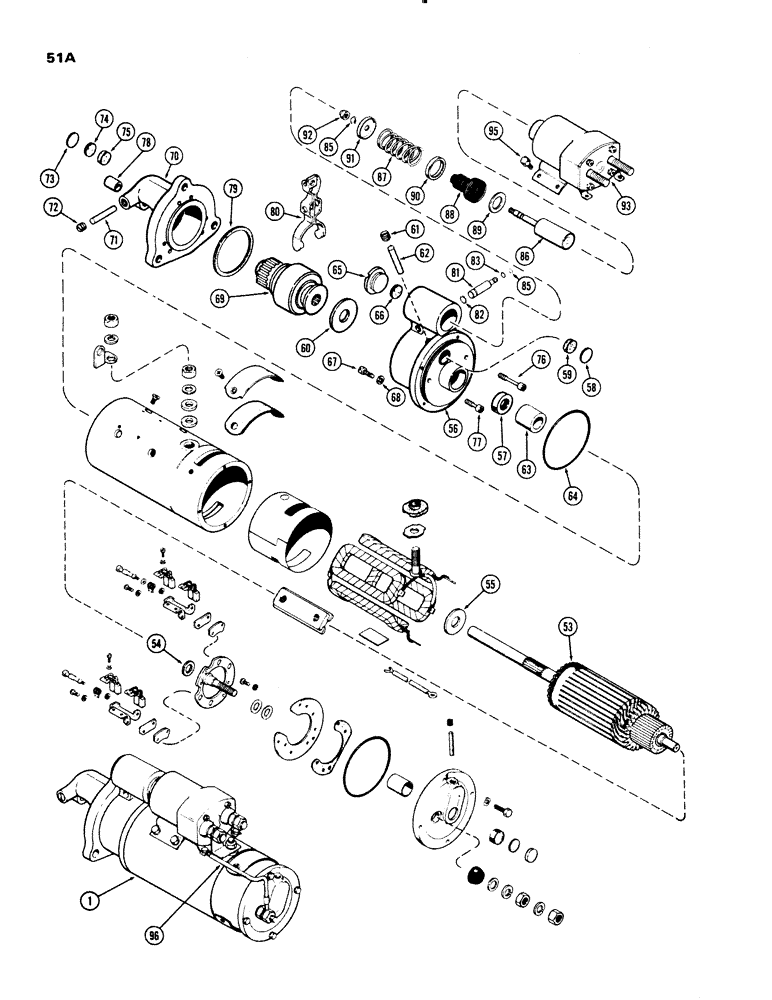

Запчасти Case 1150 (051A) - D42964 STARTER (06) - ELECTRICAL SYSTEMS

1

D42964

X

STARTER ASSY - motor, Includes: Ref. 53 - 96 on this Figure and Ref. 1 - 52 on Figure 50

1шт.

53

A41458

ARMATURE

- starter

1шт.

54

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- armature (at commutator end)

1шт.

55

A40892

WASHER

- armature spacer

1шт.

56

R21579

HOUSING

ASSY. - shift lever, Includes: Ref. 57 - 62

1шт.

57

R21582

OIL SEAL

- oil, lever housing

1шт.

58

41-57

PLUG,Exp, 1 1/32"

- expansion

1шт.

59

A41923

PLUG

- housing

1шт.

60

R15145

DISC

WASHER - brake

1шт.

61

221-1041

PLUG

- pipe

1шт.

62

R15023

WICK

- oil lever housing

1шт.

63

R21580

BUSHING

- lever housing

1шт.

64

D31954

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

"O" RING - shift lever housing

1шт.

65

R21587

PLUG

- shift lever housing

1шт.

66

A41973

GASKET

- plug

1шт.

67

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

Shift lever housing Hex, 1/4"-28 x 1", G5

5шт.

68

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Bolt 1/4"

5шт.

69

A42397

DRIVE

ASSY. - starter (Replaces R21589)

1шт.

70

A40283

HOUSING

ASSY. - drive end, Includes: Ref. 71 - 75

1шт.

71

R15023

WICK

- oil, drive housing

1шт.

72

221-1041

PLUG

- wick, drive housing

1шт.

73

41-57

PLUG,Exp, 1 1/32"

- expansion, drive housing

1шт.

74

A41973

GASKET

- plug

1шт.

75

A41923

PLUG

- reservoir, felt

1шт.

76

D32488

HEX SOC SCREW,5/16" - 18 x 1.50"

SCREW - attaching, drive end (long)

1шт.

77

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - attaching, drive end (short)

1шт.

78

A40893

BUSHING

- starter drive end, 5/8 x 3/4 x 25/32"

1шт.

79

R21562

GASKET

- drive end housing

1шт.

80

D32547

LEVER

ASSY. - shifter

1шт.

81

A42199

PIN

STUD - starter shifter lever (Replaces R21564)

1шт.

82

R21573

O-RING,0.369" ID x 0.515" OD x 0.073"

"O" RING - stud (large)

1шт.

83

R21574

O-RING,0.244" ID x 0.391" OD x 0.073"

"O" RING - stud (small)

1шт.

85

G46146

SNAP RING,#37, Ext

Ring, Snap, , stud & plunger retaining #37, Ext

2шт.

86

A42309

PLUNGER

- starter solenoid switch

1шт.

87

A41242

SPRING

- starter plunger

1шт.

88

A42308

BOOT

- plunger

1шт.

89

A41922

WASHER

SEAT - boot

1шт.

90

A43380

BACK-UP RING

SEAT - spring (at solenoid end)

1шт.

91

R21571

RETAINER

SEAT - spring (at lever end)

1шт.

92

131-31

LOCK NUT,5/16"-24, G8

NUT - plunger spring retaining

1шт.

93

A42376

SWITCH

SOLENOID ASSY. - (See Figure 51C)

1шт.

93

A15358

SOLENOID

ASSY. - (See Figure 51C) (Order A42376)

1шт.

95

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

- solenoid mounting

4шт.

96

A41978

ELECTRICAL WIRE

WIRE -, Serial Range: terminal-switch

1шт.
