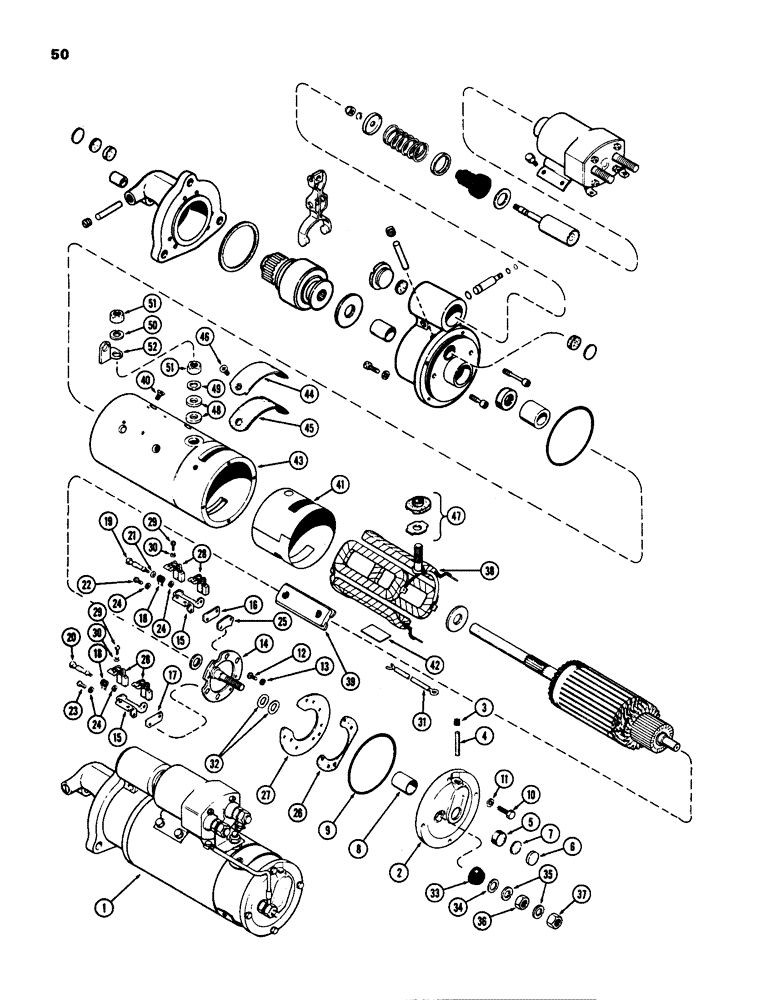

Запчасти Case 1150 (050) - D42964 STARTER (06) - ELECTRICAL SYSTEMS

1

D42964

X

STARTER ASSY. - motor (Delco - Remy #1113949), Includes: Ref. 1 - 52 this figure and Ref. 53 - 96 on Figure 51A

1шт.

2

A42314

GASKET

FRAME ASSY. - commutator end, Includes: Ref. 3 - 7

1шт.

3

221-1041

PLUG

- oil wick hole

1шт.

4

R15023

WICK

- oil

1шт.

5

A41923

PLUG

- oil reservoir, felt

1шт.

6

41-57

PLUG,Exp, 1 1/32"

- oil reservoir hole, (expansion)

1шт.

7

A41973

GASKET

- expansion plug

1шт.

8

A25336

BUSHING

- commutator end

1шт.

9

D31954

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

"O" RING - commutator end frame

1шт.

10

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

Commutator end to coil housing Hex, 1/4"-28 x 1", G5

4шт.

11

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Commutator end housing bolt 1/4"

4шт.

12

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

BOLT - spacer mounting ring

3шт.

13

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, , Spacer bolt #8

3шт.

A41461

PLATE

ASSY. - starter brush (less bushes), Includes: Ref. 14 - 27

1шт.

14

A41921

PLATE

RING - brush mounting

1шт.

14

A42425

NOZZLE HOLDER

HOLDER - starter brush

4шт.

16

A41454

SPACER - starter insulated holder

2шт.

17

A41455

SPACER

- starter grounded holder

2шт.

18

A25393

SPRING

- starter brush

8шт.

19

A41915

STUD - brush spring carrier (for insulated brush)

2шт.

20

A41972

SCREW,#10 - 32 x 1.36, 0.4"

STUD - brush spring carrier (for grounded brush)

2шт.

21

A41916

WASHER

- insulated (for insulated brush)

4шт.

22

A41974

SCREW,#10 - 32 x 5/8"

- brush holder (for insulated brush)

2шт.

23

A41959

SCREW,#10 - 32 x 3/8"

- brush holder (for grounded brush)

2шт.

24

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

8шт.

25

A40674

NOZZLE HOLDER

PLATE - connector (for insulated brush)

1шт.

26

A41914

SUPPORT

- plate assy.

1шт.

27

A41457

INSULATOR

- starter brush plate

1шт.

28

A41456

BRUSH, COMMUTATOR

BRUSHES - starter

8шт.

29

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- brush retaining, #8-32 x 5/16" rd. hd.

8шт.

30

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, , Brush screw #8

8шт.

31

A41978

ELECTRICAL WIRE

WIRE -, Serial Range: brush-field

1шт.

32

A41971

WASHER

- terminal stud

2шт.

33

A41918

INSULATOR

- terminal stud

1шт.

34

D30006

WASHER

- terminal stud, flat

1шт.

35

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Terminal stud 1/2"

2шт.

36

129-145

JAM NUT,Jam, 1/2"-13, G5

Terminal stud Jam, 1/2"-13, G5

1шт.

37

D30009

NUT

- terminal stud

1шт.

38

A41590

COIL

ASSY. - starter field

1шт.

39

R15115

SHOE

- starter pole

4шт.

40

74-610

SCREW,3/8" - 24 x 5/8"

- pole shoes

8шт.

41

A41920

INSULATOR

- field coil

1шт.

42

A41977

RUBBER INSULATOR

INSULATION - jumper wire junction

2шт.

43

NSS

NOT SOLD SEPARAT

FRAME - field (Order D42964)

1шт.

44

A41957

PLATE

COVER - brush inspection

2шт.

45

A41849

GASKET

- inspection cover

2шт.

46

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- inspection voer, #8-24 x 1/2" rd. hd

4шт.

47

A41925

BUSHING

INSULATOR - field terminal stud, inner

1шт.

48

D30005

INSULATOR

- field terminal stud, outer

2шт.

49

D30006

WASHER

- field terminal stud, flat

1шт.

50

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Field terminal stud 1/2"

1шт.

51

129-145

JAM NUT,Jam, 1/2"-13, G5

Field terminal stud Jam, 1/2"-13, G5

2шт.

52

A40894

CONNECTOR, ELEC

CONNECTOR - starter, Serial Range: terminal-switch

1шт.

53

A41458

ARMATURE

- starter

1шт.

54

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- armature (at commutator end)

1шт.

55

A40892

WASHER

- armature spacer

1шт.

56

R21579

HOUSING

ASSY. - shift lever

1шт.

57

R21582

OIL SEAL

- oil, lever housing

1шт.

58

41-57

PLUG,Exp, 1 1/32"

- expansion

1шт.

59

A41923

PLUG

- housing

1шт.

60

R15145

DISC

WASHER - brake

1шт.

61

221-1041

PLUG

- pipe

1шт.

62

R15023

WICK

- oil lever housing

1шт.

64

D31954

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

"O" RING - shift lever housing

1шт.

65

R21587

PLUG

- shift lever housing

1шт.

66

A41973

GASKET

- plug

1шт.

67

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

Shift lever housing Hex, 1/4"-28 x 1", G5

5шт.

68

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Bolt 1/4"

5шт.

69

A42397

DRIVE

ASSY. - starter (Replaces R21589)

1шт.

70

A40283

HOUSING

ASSY. - drive end

1шт.

71

R15023

WICK

- oil, drive housing

1шт.

72

221-1041

PLUG

- wick, drive housing

1шт.

73

41-57

PLUG,Exp, 1 1/32"

- expansion, drive housing

1шт.

74

A41973

GASKET

- plug

1шт.

75

A41923

PLUG

- reservoir, felt

1шт.

76

D32488

HEX SOC SCREW,5/16" - 18 x 1.50"

SCREW - attaching, drive end (long)

1шт.

77

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - attaching, drive end (short)

1шт.

78

A40893

BUSHING

- starter drive end, 5/8 x 3/4 x 25/32"

1шт.

79

R21562

GASKET

- drive end housing

1шт.

80

D32547

LEVER

ASSY. - shifter

1шт.

81

A42199

PIN

STUD - starter shifter lever (Replaces R21564)

1шт.

82

R21573

O-RING,0.369" ID x 0.515" OD x 0.073"

"O" RING - stud (large)

1шт.

83

R21574

O-RING,0.244" ID x 0.391" OD x 0.073"

"O" RING - stud (small)

1шт.

85

G46146

SNAP RING,#37, Ext

Ring, Snap, , stud & plunger retaining #37, Ext

2шт.

86

A42309

PLUNGER

- starter solenoid switch

1шт.

87

A41242

SPRING

- starter plunger

1шт.

88

A42308

BOOT

- plunger

1шт.

89

A41922

WASHER

SEAT - boot

1шт.

90

A43380

BACK-UP RING

SEAT - spring (at solenoid end)

1шт.

91

R21571

RETAINER

SEAT - spring (at lever end)

1шт.

92

131-31

LOCK NUT,5/16"-24, G8

NUT - plunger spring retaining

1шт.

93

A42376

SWITCH

SOLENOID ASSY. - (See Figure 51C)

1шт.

95

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

- solenoid mounting

4шт.

96

A41978

ELECTRICAL WIRE

WIRE -, Serial Range: terminal-switch

1шт.
