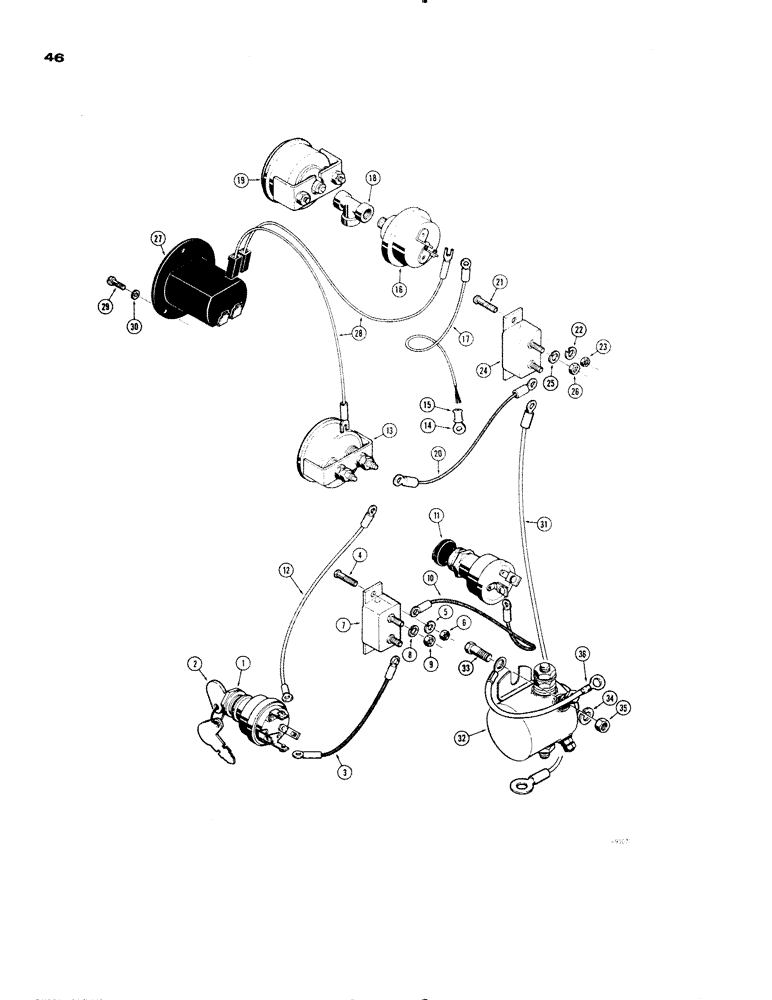

Запчасти Case 1150 (046) - INSTRUMENT PANEL WIRING (06) - ELECTRICAL SYSTEMS

D35092

SWITCH

AND KEY - electrical, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

SWITCH - electrical

1шт.

2

D36822

KEY

- switch, set of two

1шт.

3

71214

INSERT

WIRE - jumper, electrical switch to circuit breaker

1шт.

4

173-226

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

RHMS - #8 - 32 NC x 3/8" (Zinc plated)

2шт.

5

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

6

129-16

NUT,#8-32

2шт.

7

D37252

BREAKER

CIRCUIT BREAKER - 10 amps, 12 volt

1шт.

8

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

9

129-37

NUT,#10-32

2шт.

10

51200220

ELECTRICAL WIRE

WIRE - jumper, circuit breaker to light switch

1шт.

11

D35065

SWITCH

- light

1шт.

12

71214

INSERT

WIRE - jumper, electrical, Serial Range: switch-ammeter

1шт.

13

R18748

AMMETER

GAUGE - ammeter

1шт.

14

223-50

TERMINAL CONNECTOR,14 - 16

TERMINAL - electrical, oil pressure gauge wire

1шт.

15

223-83

SLEEVE

- terminal

1шт.

16

D28798

SWITCH

- pressure, Includes: Ref. 17

1шт.

17

D28797

ELECTRICAL WIRE

WIRE - switch

1шт.

18

217-10

TEE,1/8" - 27 NPTF Fem

- pipe, female (1/8" NPT)

1шт.

19

D22853

GAUGE

- engine oil pressure

1шт.

20

51200220

ELECTRICAL WIRE

WIRE - jumper, ammeter to circuit breaker

1шт.

21

173-226

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

RHMS - #8 - 32 NC x 3/8" (Zinc plated)

2шт.

22

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

23

129-16

NUT,#8-32

2шт.

24

A22877

BREAKER,40A

CIRCUIT BREAKER - electrical

1шт.

25

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

26

129-37

NUT,#10-32

2шт.

27

D39287

HOURMETER

METER - hour, Serial Range: -7109998

1шт.

D44786

HOURMETER

METER, Start Serial: 7109998

1шт.

28

D39285

ELECTRICAL WIRE

WIRE - hour meter

2шт.

D39284

KIT

PACKAGE - mounting hardware, Includes: Ref. 29 and 30

1шт.

29

173-61

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

RHMS - #6 - NC x 1/2"

3шт.

30

193-24

LOCK WASHER,Int Tooth, #6

WASHER, LOCK, Int Tooth, #6

3шт.

31

A9340

ELECTRICAL WIRE

WIRE - jumper, circuit, Serial Range: breaker-solenoid

1шт.

32

D31479

SOLENOID SWITCH

SWITCH - solenoid, electrical, Serial Range: switch-starter

1шт.

D31548

ELECTRICAL WIRE

WIRE - solenoid to ground (Not shown)

1шт.

33

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

34

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

35

25-104

NUT,1/4"-20, G5

2шт.

36

D31548

ELECTRICAL WIRE

WIRE -, Serial Range: solenoid-ground

1шт.
