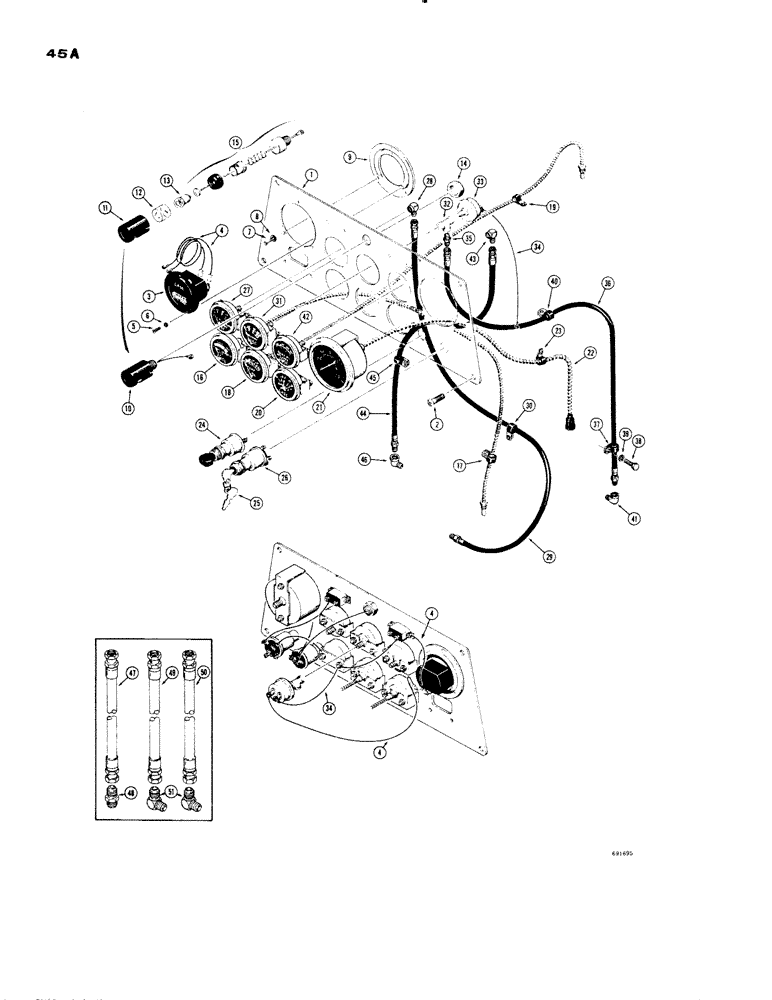

Запчасти Case 1150 (045A) - INSTRUMENT PANEL, OIL PRESSURE GAUGES WITH HOSES, USED ON TRAC. 7110110 & AFTER (06) - ELECTRICAL SYSTEMS

1

D41010

PANEL

- instrument

1шт.

2

174-205

SCREW,Phil Rnd Hd, 5/16" - 24 x 7/8"

RHMS - 5/16" - 24 NF x 7/8"

4шт.

3

D44786

HOURMETER

METER - hour

1шт.

4

D39285

ELECTRICAL WIRE

WIRE - hour meter (36" long)

2шт.

D39284

KIT

PACKAGE - mounting hardware, Includes: Ref. 5 and 6

1шт.

5

173-61

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

RHMS - #6 - 32 NC x 1/2"

3шт.

6

193-24

LOCK WASHER,Int Tooth, #6

WASHER, LOCK, Int Tooth, #6

3шт.

7

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

RHMS - #6 - 32 NC x 1/2" (Zinc plated)

3шт.

8

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

3шт.

9

D35079

DAMPER

DAMPENER - vibration

1шт.

10

D35815

LAMP

- dash, Includes: Ref. 11 - 15

1шт.

11

D37918

COVER

- lamp

1шт.

12

D37919

LENS

- lamp

1шт.

13

R19897

BULB

- lamp

1шт.

14

D39095

NUT

- hex, special

1шт.

15

NSS

NOT SOLD SEPARAT

BODY AND WIRE - lamp

1шт.

16

D44005

ELECTRICAL GAUGE

GAUGE - torque converter temperature

1шт.

17

80049853

YOKE

- converter temperature tube

1шт.

18

D22768

ELECTRICAL GAUGE

GAUGE - water temperature

1шт.

19

49832

CLAMP

- water temperature cable

1шт.

20

R18748

AMMETER

GAUGE - ammeter

1шт.

21

D38122

TACHOMETER

- engine R.P.M.

1шт.

22

D48095

CABLE

- tachometer

1шт.

23

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- tachometer cable

1шт.

24

D35065

SWITCH

- light

1шт.

D35092

SWITCH

AND KEY - electrical, Includes: Ref. 25 and 26

1шт.

25

D36822

KEY

- switch, set of two

1шт.

26

NSS

NOT SOLD SEPARAT

SWITCH - electrical

1шт.

27

R15953

GAUGE

- torque converter oil pressure

1шт.

28

218-511

ELBOW,90º, 7/16"-20, 37º x 1/8"-27, Fem NPTF

- female, 90deg.

1шт.

29

D95005

HOSE

- converter to oil pressure gauge, female and male fittings (For service, use D95115 hose and 218-441 adapter)

1шт.

30

49774

CLAMP

- converter pressure hose

1шт.

31

D22853

GAUGE

- engine oil pressure

1шт.

32

217-10

TEE,1/8" - 27 NPTF Fem

- pipe, female (1/8" NPT)

1шт.

33

D28798

SWITCH

- pressure, Includes: Ref. 34

1шт.

34

D28797

ELECTRICAL WIRE

WIRE - switch

1шт.

35

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - male

1шт.

36

D95006

HOSE

- engine to oil pressure gauge, female and male fittings (For service, use D95116 hose and 218-441 adapter)

1шт.

37

D47783

CLAMP

- engine oil pressure hose

1шт.

38

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

39

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

40

49838

CLAMP

- engine oil pressure hose

1шт.

41

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street 90º, 1/8"-27, NPT

1шт.

42

D29570

GAUGE

- transmission oil pressure

1шт.

43

218-511

ELBOW,90º, 7/16"-20, 37º x 1/8"-27, Fem NPTF

- female, 90 deg.

1шт.

44

D95004

HOSE

- transmission to oil pressure gauge, female and male fittings (For service, use D95114 hose and 218-441 adapter)

1шт.

45

NLS

NO LONGER SERVICED

- transmission oil pressure hose

1шт.

46

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street 90º, 1/8"-27, NPT

1шт.

47

D95115

HOSE

- converter to oil pressure gauge - female fittings, Start Serial: 7110110

1шт.

48

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, male, Start Serial: 7110110

1шт.

49

D95114

HOSE

- transmission to oil pressure gauge - female ends, Start Serial: 7110110

1шт.

50

D95116

HOSE

- engine to oil pressure gauge - female ends, Start Serial: 7110110

1шт.

51

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 deg., male, Start Serial: 7110110

2шт.
