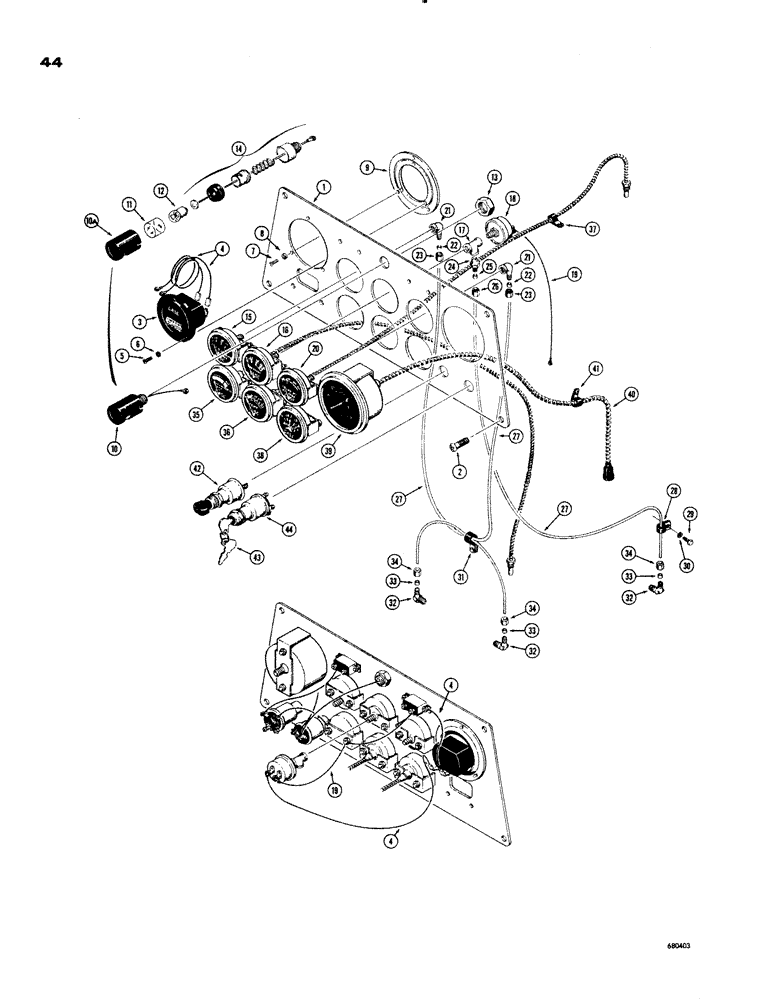

Запчасти Case 1150 (044) - INSTRUMENT PANEL, OIL PRESSURE GAUGES WITH TUBES (06) - ELECTRICAL SYSTEMS

1

D41010

PANEL

- instrument

1шт.

2

174-205

SCREW,Phil Rnd Hd, 5/16" - 24 x 7/8"

RHMS - 5/16" - 24 NF x 7/8"

4шт.

3

D39287

HOURMETER

METER - hour, Serial Range: -7109998

1шт.

D44786

HOURMETER

METER - hour, Start Serial: 7109998

1шт.

4

D39285

ELECTRICAL WIRE

WIRE - hour meter (36" long)

2шт.

D39284

KIT

PACKAGE - mounting hardware, Includes: Ref. 5 and 6

1шт.

5

173-61

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

RHMS - #6 - 32 NC x 1/2"

3шт.

6

193-24

LOCK WASHER,Int Tooth, #6

WASHER, LOCK, Int Tooth, #6

3шт.

7

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

RHMS - #6 - 32 NC x 1/2" (Zinc plated)

3шт.

8

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

3шт.

9

D35079

DAMPER

DAMPENER - vibration

1шт.

10

D35815

LAMP

- dash, Includes: Ref. 10A - 14

1шт.

10a

D37918

COVER

- lamp

1шт.

11

D37919

LENS

- lamp

1шт.

12

R19897

BULB

- lamp

1шт.

13

D39095

NUT

- hex, special

1шт.

14

NSS

NOT SOLD SEPARAT

BODY AND WIRE - lamp

1шт.

15

R15953

GAUGE

- torque converter oil pressure

1шт.

16

D22853

GAUGE

- engine oil pressure

1шт.

17

217-10

TEE,1/8" - 27 NPTF Fem

- pipe, female (1/8" NPT)

1шт.

18

D28798

SWITCH

- pressure, Includes: Ref. 19

1шт.

19

D28797

ELECTRICAL WIRE

WIRE - switch

1шт.

20

D29570

GAUGE

- transmission oil pressure

1шт.

D35895

FITTING

ELBOW ASSEMBLY - female, flex tube, Includes: 21 - 23

2шт.

21

NSS

NOT SOLD SEPARAT

ELBOW - flex tube

1шт.

22

D37177

SLEEVE

- flex tube

1шт.

23

D37178

NUT

- flex tube

1шт.

D35816

CONNECTOR, ELEC

CONNECTOR ASSEMBLY - male, flex tube, Includes: Ref. 24 - 26

1шт.

24

NSS

NOT SOLD SEPARAT

CONNECTOR - flex tube

1шт.

25

D37176

SLEEVE

- flex tube

1шт.

26

D37362

TUBE NUT

- flex tube

1шт.

27

D35089

TUBE

- oil pressure (For service see Figure 45A items 29, 36 and 44)

3шт.

28

D43839

CLAMP

- engine oil pressure tube

1шт.

29

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

30

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

31

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- torque converter and transmission oil pressure tubes

1шт.

D35081

FITTING

ELBOW ASSEMBLY - male, flex tube, Includes: Ref. 32 - 34

3шт.

32

NSS

NOT SOLD SEPARAT

ELBOW - flex tube

1шт.

33

D37176

SLEEVE

- flex tube

1шт.

34

D37362

TUBE NUT

- flex tube

1шт.

A24523

KIT

Core - kit, tachometer (Not shown)

1шт.

35

D44005

ELECTRICAL GAUGE

GAUGE - torque converter temperature

1шт.

36

D22768

ELECTRICAL GAUGE

GAUGE - water temperature

1шт.

37

49832

CLAMP

- water temperature cable

1шт.

38

R18748

AMMETER

GAUGE - ammeter

1шт.

39

D38122

TACHOMETER

- engine R.P.M.

1шт.

40

D48095

CABLE

- tachometer

1шт.

41

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- tachometer cable

1шт.

42

D35065

SWITCH

- light

1шт.

D35092

SWITCH

AND KEY - electrical, Includes: Ref. 43 and 44

1шт.

43

D36822

KEY

- switch, set of two

1шт.

44

NSS

NOT SOLD SEPARAT

SWITCH - electrical

1шт.
