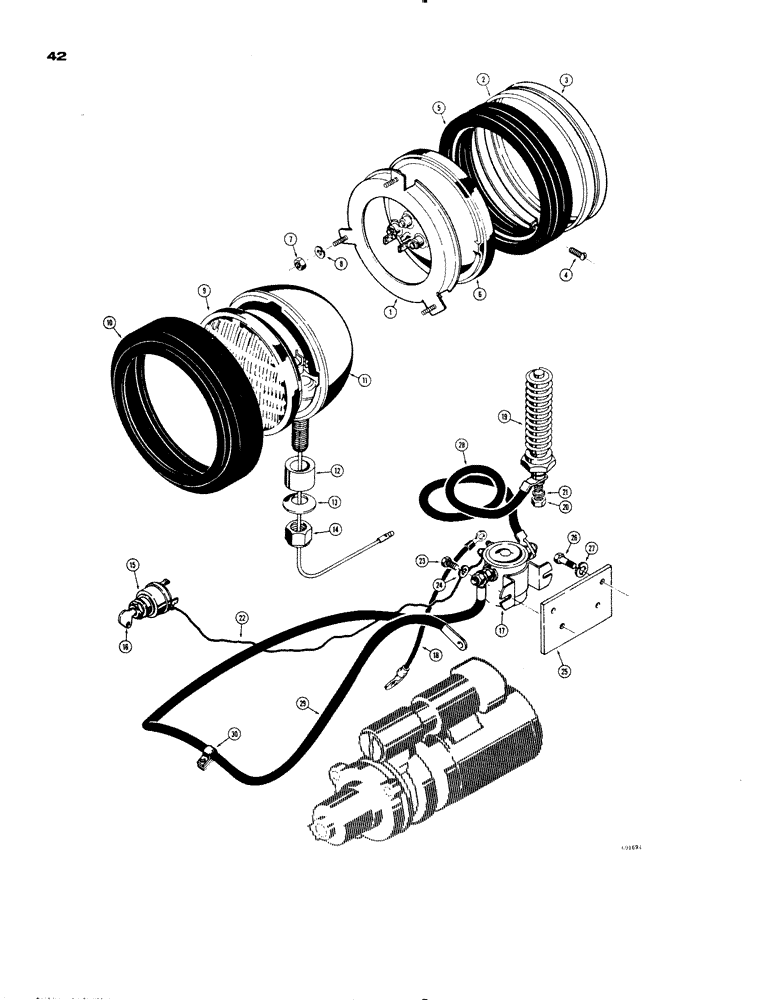

Запчасти Case 1150 (042) - D41701 HEADLIGHT ASSY. (06) - ELECTRICAL SYSTEMS

D41701

LAMP

HEADLIGHT ASSEMBLY - 24 volt, Includes: Ref. 1 - 6

2шт.

1

NSS

NOT SOLD SEPARAT

FRAME - light

1шт.

2

A40693

HUB CAP

RETAINING RING - light, rear

1шт.

3

A40694

RETAINER

RETAINING RING - light, front

1шт.

4

173-204

SCREW,Sl Rnd Hd, #10 - 24 x 3/4"

RHMS - #10 - 24 NC x 3/4" (Zinc plated)

2шт.

5

A40695

RING

RETAINER - light, rubber

1шт.

6

D37920

LAMP

LIGHT - sealed beam, 24 volt

1шт.

7

129-17

NUT,Hex, #10 - 24

NUT - hex,. (#10 - 24 NC) Zinc plated

6шт.

8

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

6шт.

D35913

LAMP

TAILLIGHT ASSEMBLY - 24 VOLT, Includes: Ref. 9 - 14

1шт.

9

D37920

LAMP

LIGHT - sealed beam, 24 volt

1шт.

10

A25210

MOUNTING PARTS

RETAINER - light, rubber

1шт.

11

NSS

NOT SOLD SEPARAT

SHELL - light

1шт.

12

D37048

BUSHING

1шт.

13

D37049

WASHER

- special

1шт.

14

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - hex, lock (1/2" - 20 NF)

1шт.

15

D35092

SWITCH

AND KEY - electrical, Includes: Ref. 16, engine preheater

1шт.

16

D36822

KEY

- switch, set of two, engine preheater

1шт.

17

D31479

SOLENOID SWITCH

SWITCH - solenoid, preheater, engine

1шт.

18

D31548

ELECTRICAL WIRE

WIRE - ground, solenoid, engine preheater

1шт.

19

A34278

HEATER

ELEMENT - manifold heater preheater (24 volt), engine

1шт.

20

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Engine Pre-heater

1шт.

21

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Engine preheater 1/4"

1шт.

22

F12860

WIRE - electrical switch to solenoid (32" long), engine preheater

1шт.

23

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Engine preheater Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

24

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Engine preheater 1/4"

2шт.

24

A25-104

NUT - hex. (1/4" - 20 NC) Not shown, engine preheater

2шт.

25

A34047

PLATE ASSY.

BRACKET - solenoid mounting, engine preheater

1шт.

26

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

HHCS - 3/8" - 16 NC x 1/2", engine preheater

2шт.

27

92-6

LOCK WASHER,3/8"

med. sect., engine preheater 3/8"

2шт.

28

A21483

CABLE

- solenoid to preheater element (15-3/4" long), engine

1шт.

29

D32643

CABLE

- starter to solenoid (36" long), engine preheater

1шт.

30

49836

CLAMP

- cable, engine preheater

1шт.

A40476

HEATER

- engine block (Includes cord) Not illustrated

2шт.
