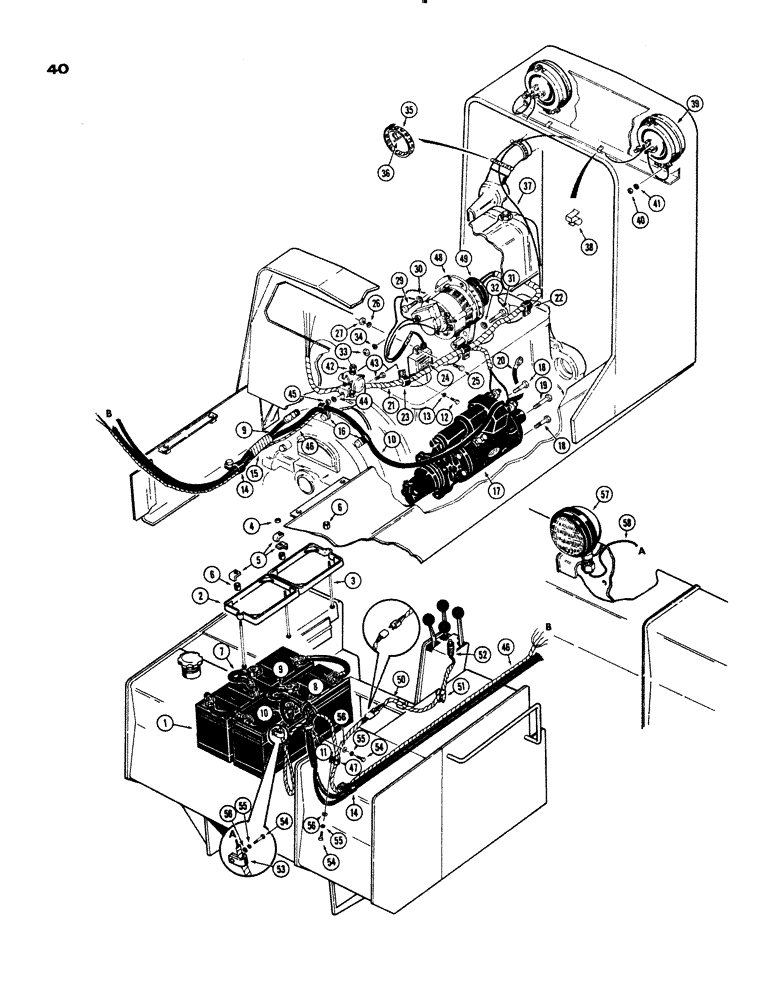

Запчасти Case 1150 (040) - ELECTRICAL SYSTEM (06) - ELECTRICAL SYSTEMS

1

D44177

DRY BATTERY

BATTERY - dry type, 6 volt

4шт.

2

R13004

CLAMP

HOLD DOWN - battery

4шт.

3

R21737

BOLT

ROD - hold down

6шт.

4

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, lock (5/16" - 18 NC)

6шт.

5

D29453

CLIP

CLIP - hold down

8шт.

6

G46096

RETAINER

BUSHING - hold down, rubber

6шт.

7

72176

CABLE

CABLE - jumper

3шт.

8

D35078

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

GROMMET - battery cable

1шт.

9

D42967

CABLE

CABLE - ground (Neg.)

1шт.

10

D35910

CABLE

CABLE - hot (Pos.)

1шт.

11

D49498

CLAMP

CLAMP - cable

1шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

13

92-6

LOCK WASHER,3/8"

LOCK WASHER, , med. sect. 3/8"

1шт.

14

D35908

CLAMP,1" Clamping pipe

CLAMP -, Serial Range: cable-cowl

2шт.

15

R12586

TAPE

WRAP - battery cable

1шт.

16

R14668

CLAMP

CLAMP - cable to converter housing

2шт.

17

D42964

X

STARTER - engine (Parts list Figure 50)

1шт.

18

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

19

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

BOLT, Hex, 1/2"-13 x 2 3/4", G5

1шт.

20

D43390

CABLE

CABLE - ground

1шт.

21

D42913

CABLE

HARNESS - wiring, main

1шт.

22

49845

CLAMP

CLAMP - harness

2шт.

23

D47783

CLAMP

CLAMP - harness

1шт.

24

D41431

REGULATOR

REGULATOR - voltage

1шт.

SHOULD USE A75072 & A59704

1шт.

25

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

26

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

27

25-104

NUT,1/4"-20, G5

NUT, 1/4"-20, G5

3шт.

28

RESERVED

1шт.

29

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

30

92-5

LOCK WASHER,5/16"

LOCK WASHER, , med sect. 5/16"

1шт.

31

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

HHCS - 3/8" - 16 NC x 3-1/4"

1шт.

32

92-6

LOCK WASHER,3/8"

LOCK WASHER, , med. sect. 3/8"

1шт.

33

129-17

NUT,Hex, #10 - 24

NUT - hex, #10 - 24 NC (Zinc plated)

3шт.

34

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

3шт.

35

D41077

STRAP

STRAP - retainer, headlight wire

2шт.

36

D41075

STUD

STUD - strap mounting

2шт.

37

D35912

ELECTRICAL WIRE

WIRE WIRING - headlight

1шт.

38

49874

ROD

CLAMP - wiring

2шт.

39

D41701

LAMP

HEADLIGHT ASSEMBLY - 24 volt (Parts list Figure 42)

2шт.

40

129-17

NUT,Hex, #10 - 24

NUT - hex, #10 - 24 NC (Zinc plated)

6шт.

41

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

6шт.

42

A18501

SOLENOID SWITCH

SWITCH - solenoid, electrical, Serial Range: switch-starter

1шт.

43

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

44

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

45

25-104

NUT,1/4"-20, G5

NUT, 1/4"-20, G5

2шт.

46

D39733

HARNESS

HARNESS - taillight and starter button

1шт.

47

49839

CLAMP

CLAMP - wiring

1шт.

48

A41360

ALTERNATOR

ALTERNATOR - electrical (Parts list Figure 48)

1шт.

48

104021A1R

REMAN-ALTERNATOR

Remanufactured 24 Volt, 35 Amp Alternator

1шт.

48

104021A1C

CORE-ALTERNATOR

Return Number, 24 Volt, 35 Amp Alternator

1шт.

49

A41361

PULLEY

PULLEY - alternator drive

1шт.

50

D39130

ELECTRICAL WIRE

WIRE WIRE - starter switch

1шт.

51

NLS

NO LONGER SERVICED

CLAMP - wiring

2шт.

52

D34924

SWITCH

SWITCH - push button, starter

1шт.

53

49832

CLAMP

CLAMP - wiring

1шт.

54

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2" - 13 NC x 3/4"

3шт.

55

92-8

LOCK WASHER,1/2"

LOCK WASHER, , med. sect. 1/2"

3шт.

56

195-33

WASHER,1/2"

WASHER - plain

3шт.

57

D35913

LAMP

TAILLIGHT ASSEMBLY - 24 volt (Parts list Figure 42)

1шт.

58

D35906

BUSHING,LARGE LOOM - wiring

1шт.
