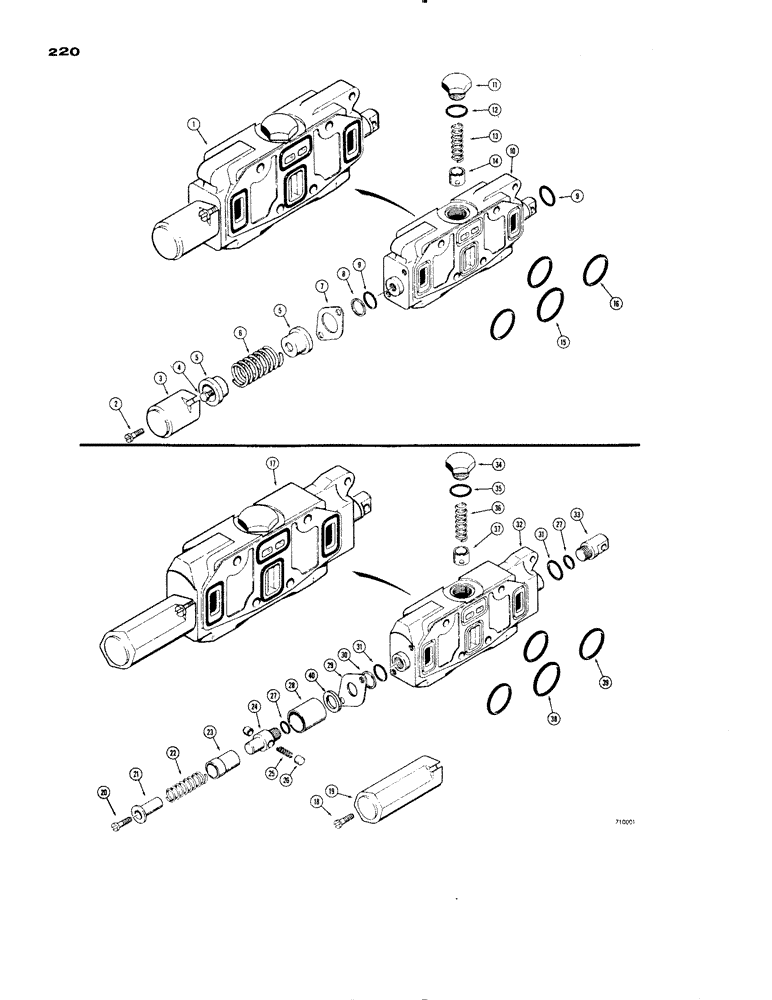

Запчасти Case 1150 (220) - D32123 DOZER TILT, ANGLING, PULL BEHIND, OR LOADER CLAM (05) - UPPERSTRUCTURE CHASSIS

1

D32123

KNIFE SECTION

SECTION, KNIFE VALVE SECTION - equipment control valve, Incl. Ref. 2 - 16

1шт.

2

71-512

SCREW,Slotted Fil Hd, 5/16"-18 x 3/4"

2шт.

3

D32221

COVER

Valve section

1шт.

4

D32128

BOLT (SPREADER)

Stripper

1шт.

5

D32130

GUIDE

Spring

2шт.

6

D32129

SPRING

Centering

1шт.

7

D32456

PLATE

Retaining

1шт.

8

D32215

RING

Backup

1шт.

9

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

Seal (1-1/8" OD)

2шт.

10

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - valve section

1шт.

11

39007

CAP

Check valve

1шт.

12

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

Seal - 1" I.D. x 1-3/8" OD

1шт.

13

R15308

VALVE SPRING

Check valve

1шт.

14

R45694

POPPET - check valve

1шт.

15

D32127

O-RING

Seal - 1-13/16" I.D. x 2" OD

1шт.

16

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

Seal (1-3/4" OD)

3шт.

17

D38092

SPARE PART VALVE - CS & S No. HP 1030, dozer lift, Incl. Ref. 18 - 40

1шт.

18

D52443

VALVE

SECTION - CS & S No. SY 1030, dozer lift, Incl. Ref. 18 - 40

1шт.

D52479 Spacer is used only in D52443 section only.

1шт.

18

71-514

SCREW,Slotted Fil Hd, 5/16"-18 x 7/8"

2шт.

19

D32459

CAP

Valve section

1шт.

20

D39711

SPARE PART Fillister head, special

1шт.

21

D32452

SPARE PART Spring, inner

1шт.

22

D32453

SPRING

Centering

1шт.

23

D32454

RETAINER

Spring, outer

1шт.

24

D32455

RETAINER

Poppet

1шт.

25

D32450

SPRING

Poppet

1шт.

26

D32226

SPOOL

Poppet - relief

2шт.

27

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

Seal (11/16" OD) (Replaced D38813)

2шт.

28

D32225

SPARE PART Poppet

1шт.

29

D32456

PLATE

Retaining

1шт.

30

D32457

RING

Backup

1шт.

31

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

Seal (1-1/4" OD)

2шт.

32

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - valve section

1шт.

33

D32223

LUG

Spool

1шт.

34

39007

CAP

Check valve

1шт.

35

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

Seal, 1" I.D. x 1-3/8" OD

1шт.

36

R15308

VALVE SPRING

Check valve

1шт.

37

D45694

SPOOL

POPPET - check valve

1шт.

38

D32127

O-RING

Seal, 1-13/16" I.D. x 2" OD

1шт.

39

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

Seal (1-3/4" OD)

3шт.

40

D52479

SPARE PART Stop

1шт.

D52479 Spacer is used only in D52443 section only.

1шт.
