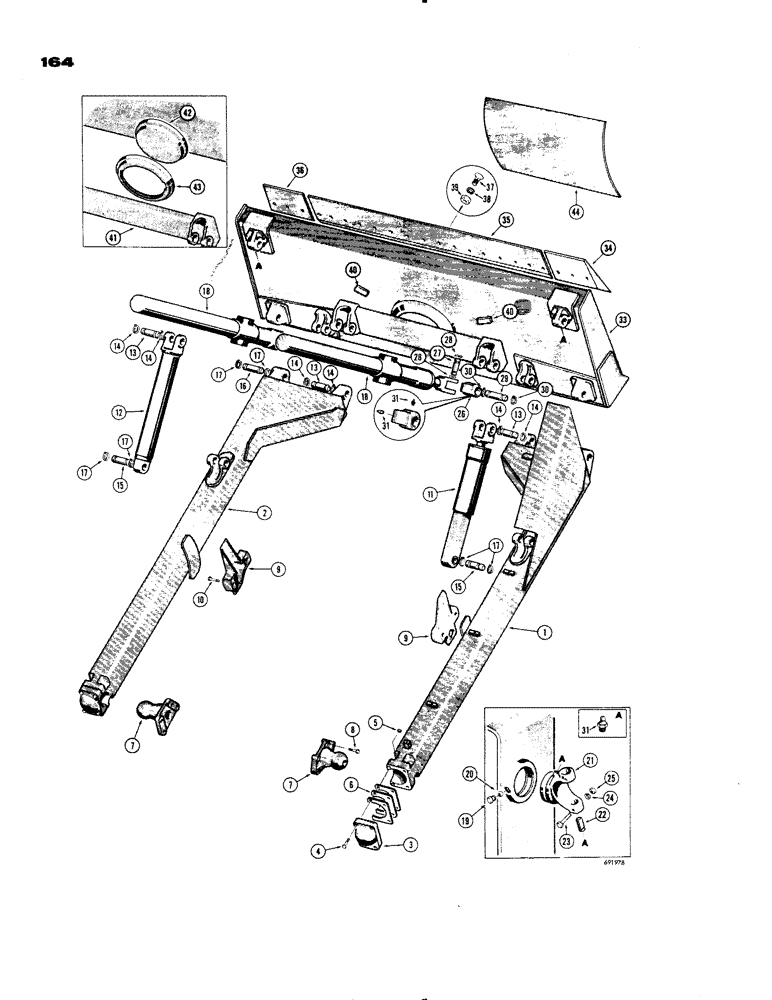

Запчасти Case 1150 (164) - POWER TILT DOZER (05) - UPPERSTRUCTURE CHASSIS

1

D29611

BEAM - push, R.H., Includes: Ref. 3 - 6

1шт.

2

D29610

BEAM - push, L.H., Includes: Ref. 3 - 6

1шт.

70396

KIT

- "C" Frame, cap (l Kit per beam), Includes: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

CAP - push beam

1шт.

4

14-1064

BOLT,Hex, 5/8" - 18 x 4", Gr 5

HHCS - 5/8" - 18 NF x 4"

4шт.

5

231-46110

LOCK NUT,5/8"-18, GB

NUT - hex (5/8" - 18 NF)

4шт.

6

D49981

SHIM,1/32" Thk

1шт.

7

R18645

TRUNNION

- push

2шт.

8

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

8шт.

9

D44191

BRACKET

- rub

2шт.

10

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

4шт.

11

REF

INSTRUCTION

CYLINDER - power tilt (See Figure 200 for cylinders)

1шт.

12

R21554

STRUT - moldboard

1шт.

13

D32933

PIVOT PIN,31.75mm OD x 127mm L

PIN - mounting

4шт.

14

D26818

RING - snap

8шт.

15

D25078

PIN

- mounting

2шт.

16

D42611

PIN

- mounting

2шт.

17

D25279

SNAP RING,M35, Int

RING - snap

8шт.

18

REF

INSTRUCTION

CYLINDER - dozer lift (See Figure 202 for cylinders)

2шт.

19

D28481

PLUG

- special

2шт.

20

211-17

BALL,3/4" Dia

- trunnion retaining

50шт.

21

D36175

YOKE

- trunnion, lift cylinder

2шт.

22

D36176

PIN,38.1mm OD x 63.5mm L

- mounting

4шт.

23

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

4шт.

24

92-6

LOCK WASHER,3/8"

4шт.

25

25-106

NUT,3/8"-16, G5

- hex (3/8" - 16 NC)

4шт.

26

70328

YOKE

JOINT - universal, lift, Serial Range: cylinder-moldboard

2шт.

27

D32933

PIVOT PIN,31.75mm OD x 127mm L

PIN - mounting

2шт.

28

D26918

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

4шт.

29

D33769

PIN

- mounting

2шт.

30

D26918

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

4шт.

31

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" NPT)

12шт.

32

RESERVED

1шт.

33

R18989

MOLDBOARD - standard, 96", Includes: Ref. 34 - 44

1шт.

33

R19018

MOLDBOARD - with pushing plate, 96", Includes: Ref. 34 - 44

1шт.

33

R18990

MOLDBOARD - standard, 104", Includes: Ref. 34 - 44

1шт.

33

R19017

MOLDBOARD - with pushing plate, 104", Includes: Ref. 34 - 44

1шт.

34

70441

BLADE

- end, cutting (R.H.)

1шт.

35

D29981

BLADE

- center, cutting (96" moldboard)

1шт.

35

R22973

KNIFE

BLADE - center, cutting (104" moldboard)

1шт.

36

70442

BLADE

- end, cutting (L.H.)

1шт.

37

19-1036

PLOW BOLT,5/8" - 11 x 2 1/4", Gr 5

BOLT - plow, 5/8" - 11 NC x 2-1/4"

26шт.

38

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

26шт.

39

25-1010

NUT,5/8"-11, G5

26шт.

R3131

KIT - blade, stop block, Includes: Ref. 40

1шт.

40

NSS

NOT SOLD SEPARAT

BLOCK - blade stop

2шт.

R3703

X

KIT - lift beam swivel, Includes: Ref. 41 - 43

1шт.

41

R18539

BEAM - lift

1шт.

D47997

KIT

- trunnion, Includes: Ref. 42 and 43

1шт.

42

NSS

NOT SOLD SEPARAT

SWIVEL - blade

1шт.

43

R13622

RING

- swivel

1шт.

44

R14502

PLATE - pusher (R19017 & R19018 moldboard)

1шт.

D11670

KIT - moldboard reinforcement (R18990 only)

1шт.

NSS

NOT SOLD SEPARAT

PLATE - moldboard (Not illustrated)

1шт.

ILLUSTRATION PAGE,TO THE RIGHT OF ITEM#20,THE PART IS D35758

1шт.
