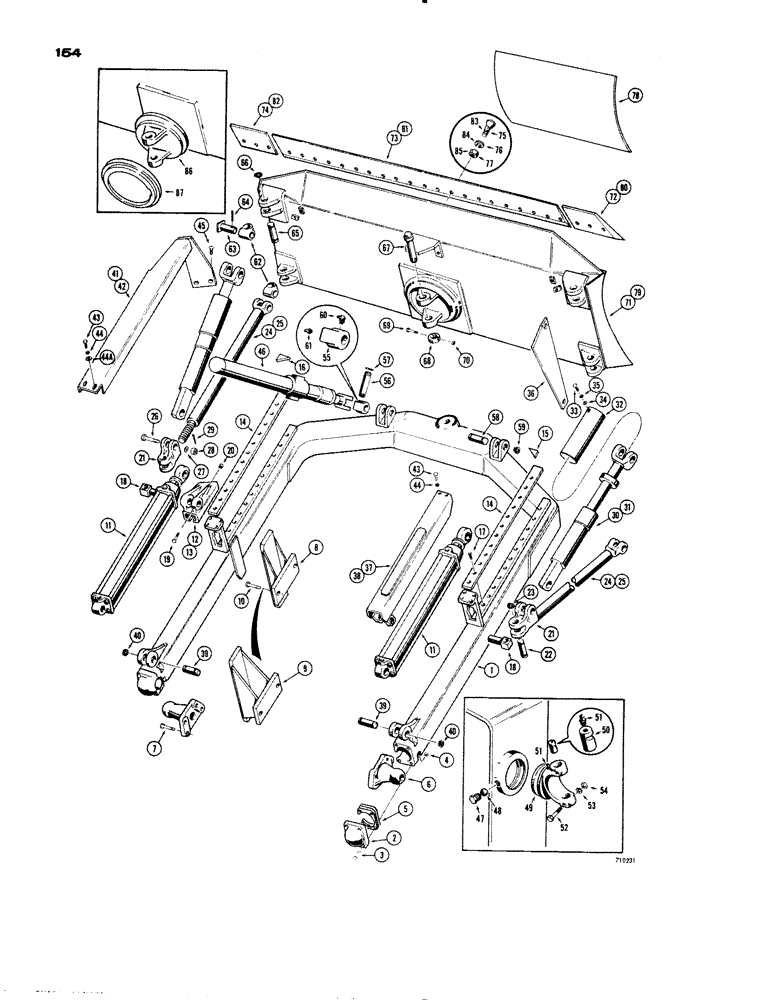

Запчасти Case 1150 (154) - POWER ANGLE TILT DOZER (05) - UPPERSTRUCTURE CHASSIS

1

D29600

"C" FRAME - Angle Tilt Dozer (Standard track dozer only), Includes: Ref. 2 - 5

1шт.

D43861

"C" FRAME - Angle Tilt Dozer (Wide track dozer only), Includes: Ref. 2 - 5

1шт.

70396

KIT

- "C" Frame, cap, Includes: Ref. 2 - 5

2шт.

2

NSS

NOT SOLD SEPARAT

CAP - "C" Frame

1шт.

3

14-1064

BOLT,Hex, 5/8" - 18 x 4", Gr 5

HHCS - 5/8" - 18 NF x 4"

4шт.

4

231-46110

LOCK NUT,5/8"-18, GB

NUT - hex, lock (5/8" - 18 NF)

4шт.

5

D49981

SHIM,1/32" Thk

10шт.

6

R18645

TRUNNION

- push

2шт.

7

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

8шт.

8

D44191

BRACKET

- rub (Standard track dozer only)

2шт.

9

D43867

BRACKET

- rub (Wide track dozer only)

2шт.

10

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

4шт.

11

R19345

CYLINDER

- moldboard angling (Parts list Figure 196)

2шт.

12

D37535

BRACKET

- slide, L.H. (with straight pin only) See ref #18, Serial Range: -7109724

1шт.

12

D45579

BRACKET

- slide, L.H. (with step pin only) See ref #18A, Serial Range: -7109724

1шт.

12

D46832

BRACKET

- slide, L.H., Start Serial: 7109724

1шт.

13

D37536

BRACKET

- slide, R.H. (with straight pin only) See ref. #18, Serial Range: -7109724

1шт.

13

D45578

BRACKET

- slide, R.H. (with step pin only) See ref. #18A, Serial Range: -7109724

1шт.

13

D46831

BRACKET

- slide, R.H., Start Serial: 7109724

1шт.

14

D45878

PLATE ASSY.

SLIDE - bolt on, Serial Range: -7109724

2шт.

14

D46837

SLIDE

- bolt on, Serial Range: 7109724-7300042

2шт.

D49603

SERVICE KIT

KIT - slide, weld on (Service option), Includes: Ref. 14A, Start Serial: 7109724

1шт.

14a

D49597

SLIDE VALVE

SLIDE - weld on, Not shown, Start Serial: 7399942

2шт.

15

D29922

BLOCK

STOP BLOCK - angling cylinder, R.H. (D45578 slide)

1шт.

16

D29923

STOP BLOCK - angling cylinder, L.H. (D45579 slide)

1шт.

17

164-135

HEX SOC SCREW,Flat Hd, 5/8" - 18 x 1 1/2"

- cap, flat head hex, socket (5/8" - 18 NF x 1-1/2")

20шт.

18

D35681

PIN

- straight (Use on D37535 and D37536 brackets)

2шт.

18a

D45580

PIN

- special, step (Use with D45578, D45579, D46831 and D46832 brackets) Not illustrated

2шт.

19

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

HHCS - 3/8" - 16 NC x 3-1/2"

2шт.

20

131-352

LOCK NUT,3/8"-16, GA

NUT - hex, lock (3/8" - 16 NC)

2шт.

21

70316

BRACKET

- strut and cylinder

2шт.

22

D43733

PIN

- mounting

2шт.

23

D25279

SNAP RING,M35, Int

RING - pin retaining

4шт.

24

D44280

STAY

STRUT - lower (Standard track dozer only)

2шт.

25

D43873

NO LONGER SERVICED

STRUT - lower (Wide track dozer only)

2шт.

26

70378

STAY

BOLT - cylinder to strut bracket

2шт.

27

95-16

WASHER,1 1/16" x 2 1/2" x .164"

- standard wrot (1")

2шт.

28

25-2316

SLOTTED NUT

- hex., castle (1" - 14NF)

2шт.

29

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

30

REF

INSTRUCTION

CYLINDER - tilt, std. track dozer (See Figure 198 for cylinders)

2шт.

31

REF

INSTRUCTION

CYLINDER - tilt, wire track dozer (See Figure 198 for cylinders)

2шт.

32

D42529

GUARD

- rod, tilt cylinder

2шт.

33

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

34

195-25

WASHER,3/8"

- plain () 3/8"

6шт.

35

92-6

LOCK WASHER,3/8"

6шт.

36

D44277

GUARD

- hose, tilt cylinder

2шт.

37

70400

GUARD - angling cylinder, R.H. (Rear)

1шт.

38

70401

GUARD - angling cylinder, L.H. (Rear)

1шт.

39

D33769

PIN

- mounting

2шт.

40

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin #125, Ext

4шт.

41

D46838

COVER

GUARD - angling cyl., R.H. front, Start Serial: 7109724

1шт.

41

D44275

GUARD - angling cyl., R.H. front, Serial Range: -7109724

1шт.

42

D44276

GUARD - angling cyl., L.H. front, Serial Range: -7109724

1шт.

42

D46839

GUARD

- angling cyl., L.H. front, Start Serial: 7109724

1шт.

43

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

8шт.

44

92-8

LOCK WASHER,1/2"

8шт.

44a

95-8

WASHER,1/2"

- plain 1/2"

8шт.

45

164-83

HEX SOC SCREW,Flat Hd, 5/8" - 11 x 2

SCREW - cap, flat head hex. socket (5/8" - 18 NF x 2")

4шт.

46

REF

INSTRUCTION

CYLINDER - dozer lift (See Figure 202 for cylinders)

2шт.

47

D28481

PLUG

- special

2шт.

48

211-17

BALL,3/4" Dia

- trunnion retaining

50шт.

49

D36175

YOKE

- trunnion, lift cylinder

2шт.

50

D36176

PIN,38.1mm OD x 63.5mm L

- mounting

4шт.

52

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

4шт.

51

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

6шт.

53

92-6

LOCK WASHER,3/8"

4шт.

54

25-106

NUT,3/8"-16, G5

- hex (3/8" - 16 NC)

4шт.

55

70328

YOKE

JOINT - universal, lift cylinder to "C" Frame

2шт.

56

D32933

PIVOT PIN,31.75mm OD x 127mm L

PIN - mounting

2шт.

57

D26918

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

4шт.

58

D33769

PIN

- mounting

2шт.

59

D26918

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

4шт.

60

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

61

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

62

70315

UNIVERSAL JOINT

JOINT - universal, moldboard to strut and tilt cylinder

4шт.

63

D41266

PIN

- mounting

4шт.

64

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

4шт.

65

D33769

PIN

- mounting

4шт.

66

D26918

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

8шт.

67

D37532

AXLE PIN

PIN - swivel

1шт.

68

D37529

COLLAR

- pin

1шт.

69

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

HHCS - 5/8" - 11 NC x 4"

1шт.

70

230-4117

LOCK NUT,7/16"-14, GA

NUT - hex. lock (5/8" - 11 NC)

1шт.

71

R18992

MOLDBOARD - standard, 120", Includes: Ref. 72 - 78

1шт.

R19022

MOLDBOARD - with pusher plate, 120", Includes: ref. 72 - 78

1шт.

72

70375

SHARE

BLADE - end, cutting (R.H.)

1шт.

73

R22981

BLADE

- center, cutting

1шт.

74

70376

BLADE

- end, cutting (L.H.)

1шт.

75

19-1036

PLOW BOLT,5/8" - 11 x 2 1/4", Gr 5

BOLT - plow, 5/8" - 11 NC x 2-1/4"

28шт.

76

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

28шт.

77

25-1010

NUT,5/8"-11, G5

28шт.

D11671

NO LONGER SERVICED

KIT - moldboard reinforcement

1шт.

NSS

NOT SOLD SEPARAT

PLATE - reinforcement (Not illustrated)

1шт.

78

R14502

PLATE - pusher (R19022 only)

1шт.

79

D43682

MOLDBOARD - wide track dozer (113-7/8" wide) Order D47775 moldboard and D47776 cutting edge for replacement

1шт.

79

D47775

MOLDBOARD - wide track dozer (121-7/8" wide)

1шт.

80

70375

SHARE

BLADE - end, cutting (R.H)

1шт.

81

R22981

BLADE

- center, cutting (Used on D43862 moldboard)

1шт.

81

D47776

CUTTING EDGE

BLADE - center, cutting (Used on D4775 moldboard)

1шт.

82

70376

BLADE

- end, cutting (L.H.)

1шт.

83

19-1036

PLOW BOLT,5/8" - 11 x 2 1/4", Gr 5

BOLT - plow, 5/8" - 11 NC x 2-1/4"

30шт.

84

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

30шт.

85

25-1010

NUT,5/8"-11, G5

30шт.

R2594

PIVOT

KIT - swivel (Used on all moldboards), Includes: Ref. 86 and 87

1шт.

86

NSS

NOT SOLD SEPARAT

SWIVEL - pivot

1шт.

87

NSS

NOT SOLD SEPARAT

RING - swivel

1шт.
