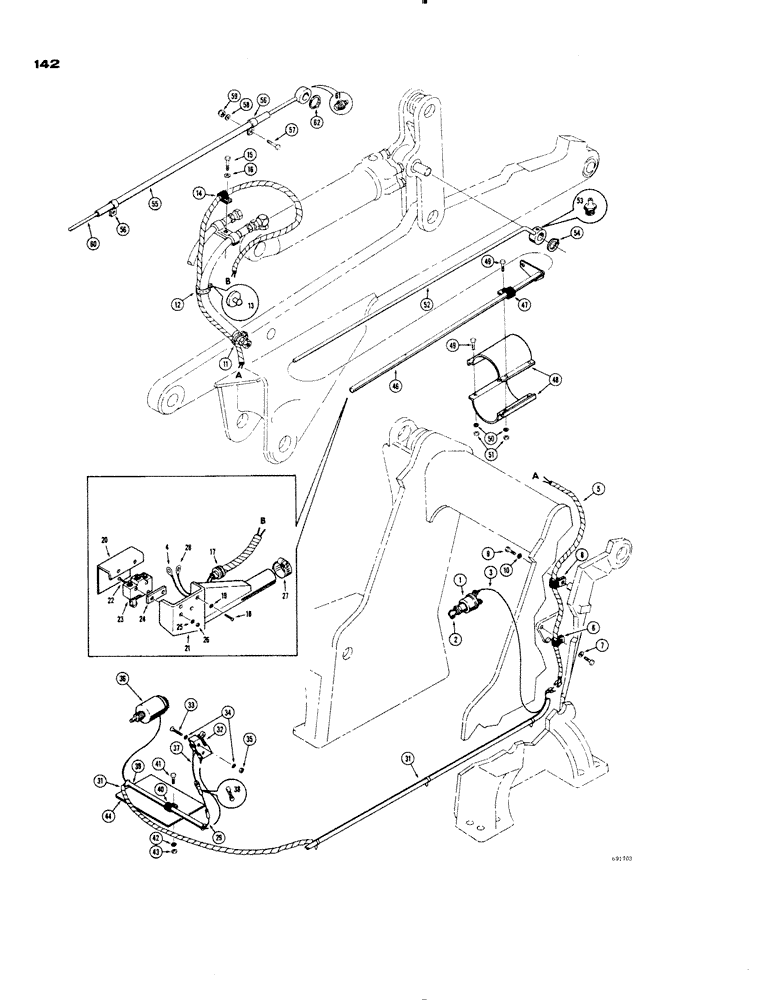

Запчасти Case 1150 (142) - LOADER RETURN TO DIG PARTS (05) - UPPERSTRUCTURE CHASSIS

D35092

SWITCH

AND KEY - electrical, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

SWITCH - electrical

1шт.

2

D36822

KEY

- switch, set of two

1шт.

3

D43177

ELECTRICAL WIRE

WIRE - electrical switch to limit switch, at electrical switch (Code white)

1шт.

4

D43180

ELECTRICAL WIRE

WIRE - electrical switch to limit switch, at limit switch (Code white)

1шт.

5

D43190

LOOM

- protective, wire leads to limit switch

1шт.

6

49838

CLAMP

-, Serial Range: loom-engine

1шт.

7

195-25

WASHER,3/8"

- plain () 3/8"

1шт.

8

49838

CLAMP

- loom to loader upright

1шт.

9

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

10

92-6

LOCK WASHER,3/8"

1шт.

11

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

loom to tilt cylinder hose #24, 1.06/2.00 Type F Worm

1шт.

12

D43188

STRAP

- loom to tilt cylinder hose

1шт.

13

D41075

STUD

- strap retaining

1шт.

14

49838

CLAMP

- loom to tilt cylinder hose clamp

1шт.

15

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8" - 16 NC x 2"

1шт.

16

195-25

WASHER,3/8"

- plain () 3/8"

1шт.

17

NLS

NO LONGER SERVICED

- limit switch box

1шт.

18

173-224

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

RHMS - #8 - 32 NC x 1/4" (Zinc plated)

2шт.

19

193-90

LOCK WASHER,Ext, #8

WASHER, LOCK, Ext, #8

2шт.

20

D40922

COVER

- limit switch

1шт.

21

D40884

BOX

- limit switch mounting

1шт.

22

169-144

SCREW,Sl Fil Hd, #6 - 32 x 1 1/4"

- machine, fillister head (#6 - 32 NC x 1-1/4") Zinc plated

2шт.

23

D40921

SWITCH

- limit, at actuating rod

1шт.

24

D40924

SHIM

SPACER - switch

1шт.

25

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, Ext-Int Tooth, #6

2шт.

26

129-15

NUT,#6-32

2шт.

27

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - switch box to rod guide tube

1шт.

28

D43178

WIRE - limit switch, at rod (Code red)

1шт.

29

D45394

CABLE

WIRE - limit switch, at solenoid (Code red)

1шт.

30

D42931

X

STRAP - wire tie, fuel return line

4шт.

31

D42919

LOOM

- protective, wire to limit switch

1шт.

32

D40921

SWITCH

- limit, at solenoid

1шт.

33

169-144

SCREW,Sl Fil Hd, #6 - 32 x 1 1/4"

- machine, fillister head (#6 - 32 NC x 1-1/4")

2шт.

34

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, Ext-Int Tooth, #6

4шт.

35

129-15

NUT,#6-32

2шт.

36

D45387

SOLENOID

- electrical (See Figures 178 and 180 for location) Also order (1) D44304, (1) D44305 and (1) D45394 if no fuse was included in factory installation.

1шт.

37

D44304

HOLDER

- fuse

1шт.

38

D44305

FUSE

- protective

1шт.

39

D42927

TUBE

- wire protector

1шт.

40

NLS

NO LONGER SERVICED

- tube

1шт.

41

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

42

92-6

LOCK WASHER,3/8"

1шт.

43

25-106

NUT,3/8"-16, G5

- hex, (3/8" - 16 NC)

1шт.

44

D44231

PLATE - cover

1шт.

45

RESERVED

1шт.

46

D43005

GUIDE

TUBE - rod guide, Serial Range: -7300097

1шт.

47

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- rod guide tube, Serial Range: -7300097

2шт.

48

D43002

CLAMP - rod guide to tilt cylinder, Serial Range: -7300097

2шт.

49

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

, Serial Range: -7300097

4шт.

50

92-6

LOCK WASHER,3/8"

, Serial Range: -7300097

4шт.

51

25-106

NUT,3/8"-16, G5

- hex (3/8" - 16 NC), Serial Range: -7300097

4шт.

52

D43007

ROD

- limit switch, Serial Range: -7300097

1шт.

53

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT), Serial Range: -7300097

1шт.

54

D25279

SNAP RING,M35, Int

RING - retaining, Serial Range: -7300097

1шт.

55

D49171

GUIDE

TUBE - rod guide, Start Serial: 7300097

1шт.

56

D49180

CLAMP

- tube to tilt cylinder, Start Serial: 7300097

2шт.

57

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

, Start Serial: 7300097

2шт.

58

195-25

WASHER,3/8"

- plain () 3/8", Start Serial: 7300097

2шт.

59

131-352

LOCK NUT,3/8"-16, GA

NUT - hex, lock (3/8" - 16 NC), Start Serial: 7300097

2шт.

60

D49262

ROD

- limit switch, Start Serial: 7300097

1шт.

61

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT), Start Serial: 7300097

1шт.

62

D25279

SNAP RING,M35, Int

RING - retaining, Start Serial: 7300097

1шт.

45

RESERVED

1шт.
