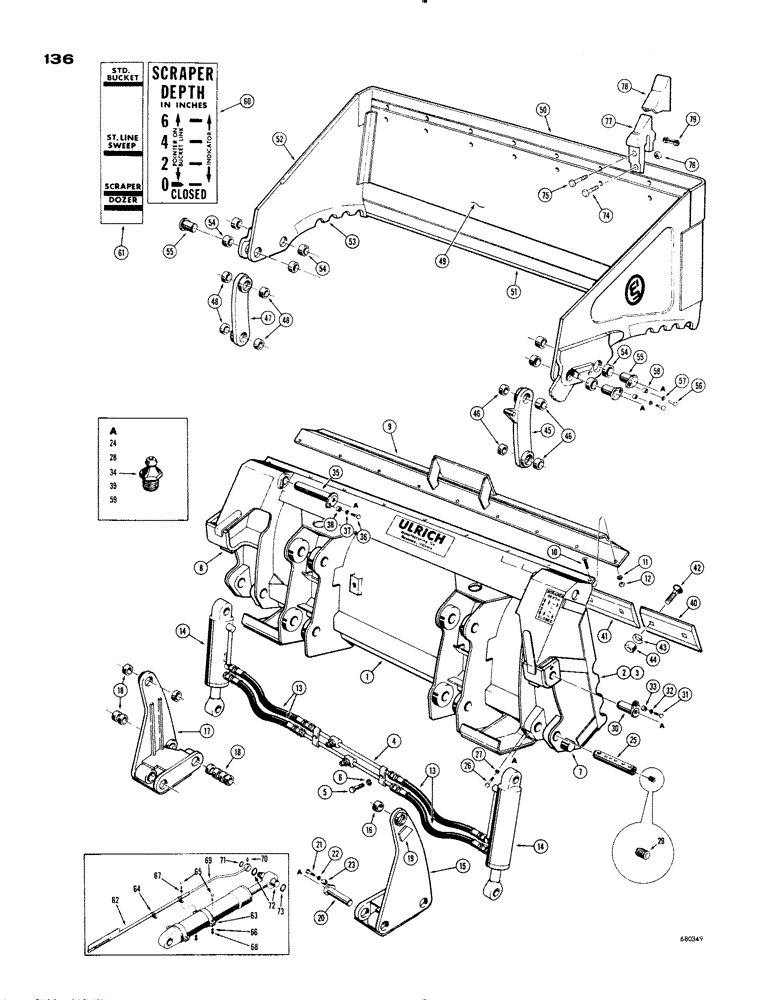

Запчасти Case 1150 (136) - ULRICH BUCKET (05) - UPPERSTRUCTURE CHASSIS

D44453

ULRICH BUCKET - without teeth (1-3/4 cu. yard) Machinery item, Includes: Ref. 1 - 62

1шт.

D39344

BLADE ASSEMBLY - bucket, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

BLADE - bucket

1шт.

2

D39439

WEAR BAR - blade, R.H.

1шт.

3

D39438

WEAR BAR - blade, L.H.

1шт.

4

D39084

TUBE - valve to clam cylinder

1шт.

5

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

6

92-6

LOCK WASHER,3/8"

2шт.

7

D39339

STOP - clam

2шт.

8

D39340

STOP - bellcrank

2шт.

9

D39429

SPILLGUARD - blade

1шт.

10

21-616

BOLT - step (3/8" - 16 NC x 1")

9шт.

11

92-6

LOCK WASHER,3/8"

9шт.

12

25-106

NUT,3/8"-16, G5

- hex (3/8" - 16 NC)

9шт.

13

38462

HOSE ASSY.

HOSE - tube to clam cylinders (25" long)

4шт.

14

D39349

CYLINDER - hydraulic (Parts list Figure 194)

2шт.

15

D39433

BELLCRANK - R.H., Includes: Ref. 16

1шт.

16

D39336

BUSHING - bellcrank

8шт.

17

D39354

BELLCRANK - L.H., Includes: Ref. 18

1шт.

18

D39336

BUSHING - bellcrank

8шт.

19

D39346

STOP BLOCK - clam

2шт.

20

D39424

PIN -, Serial Range: bellcrank-cylinder

2шт.

21

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

22

92-8

LOCK WASHER,1/2"

2шт.

23

D40607

BUSHING - pin bolt

2шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

25

D39337

PIN -, Serial Range: bellcrank-blade

2шт.

26

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

2шт.

27

92-8

LOCK WASHER,1/2"

2шт.

28

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

29

221-843

PLUG,Hex Soc, 3/8"-18

- pipe, hex, socket head (3/8" NPT)

2шт.

30

D39427

PIN -, Serial Range: link-blade

2шт.

31

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

32

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

33

D40607

BUSHING - pin bolt

2шт.

34

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

35

D39426

PIN -, Serial Range: blade-cylinder

2шт.

36

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

37

92-8

LOCK WASHER,1/2"

2шт.

38

D40607

BUSHING - pin bolt

2шт.

39

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

40

D39054

POINT

CUTTING EDGE - end

2шт.

41

D39352

CUTTING EDGE - center

1шт.

42

19-1236

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/4", Gr 5

BOLT - plow (3/4" - 10 NC x 2-1/4")

14шт.

43

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

14шт.

44

25-1012

NUT,3/4"-10, G5

14шт.

45

D39335

LINK - blade to clam, R.H., Includes: Ref. 46

1шт.

46

D39336

BUSHNG - link

4шт.

47

D39437

LINK - blade to clam, L.H., Includes: Ref. 49

1шт.

49

D39336

BUSHING - link

4шт.

D39431

CLAM ASSEMBLY - bucket, Includes: Ref. 49 - 54

1шт.

49

NSS

NOT SOLD SEPARAT

CLAM - bucket

1шт.

50

D39442

CUTTING EDGE - center, front

1шт.

51

D39440

CUTTING EDGE - center, rear

1шт.

52

D39345

CUTTING EDGE - side, front

2шт.

53

D39343

CUTTING EDGE - side, rear

2шт.

54

D39336

BUSHING - clam

8шт.

55

D39425

SHIFTER ROLLER

PIN - link and, Serial Range: bellcrank-clam

4шт.

56

13-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5, Full Thd

Hex 1/2"-13 x 7/8", G5, Full Thd

4шт.

57

92-8

LOCK WASHER,1/2"

4шт.

58

D40607

BUSHING - pin bolt

4шт.

59

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

4шт.

60

D39064

DECAL - scraper depth

1шт.

61

D39428

DECAL - bucket position indicator

1шт.

62

D44121

TUBE - indicator, bucket postion

1шт.

63

D36050

CLAMP

- cylinder

4шт.

64

D49858

ARM

CLAMP - tube

2шт.

65

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

4шт.

66

92-6

LOCK WASHER,3/8"

4шт.

67

195-25

WASHER,3/8"

- plain () 3/8"

2шт.

68

25-106

NUT,3/8"-16, G5

- hex (3/8" - 16 NC)

4шт.

69

D38488

ELECTRICAL GAUGE

ROD - leveling gauge

1шт.

70

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

71

D25279

SNAP RING,M35, Int

RING - retaining, leveling gauge

1шт.

72

D36051

PIN

- lever to tilt cylinder

1шт.

73

D26919

SNAP RING,#200, Ext

Ring, Snap, , cylinder pin #200, Ext

2шт.

D41316

TOOTH SET - bucket (Machinery item), Includes: Ref. 74 - 79

1шт.

74

14-1064

BOLT,Hex, 5/8" - 18 x 4", Gr 5

HHCS - 5/8" - 18 NF x 4", optional tooth

8шт.

75

14-1068

HHCS - 5/8" - 18 NF x 4-1/4", optional tooth Hex, 5/8"-18 x 4 1/4", G5

8шт.

76

131-13

LOCK NUT,5/8"-18, GB

NUT - hex, lock (5/8" - 18 NF), optional tooth

16шт.

D41370

TOOTH ASSEMBLY - bucket, optional, Includes: Ref. 77 - 79

8шт.

77

NSS

NOT SOLD SEPARAT

SHANK - tooth, optional

1шт.

78

D39090

POINT

- tooth, optional

1шт.

79

D39448

PIN

FLEX PIN - point, optional tooth

1шт.
