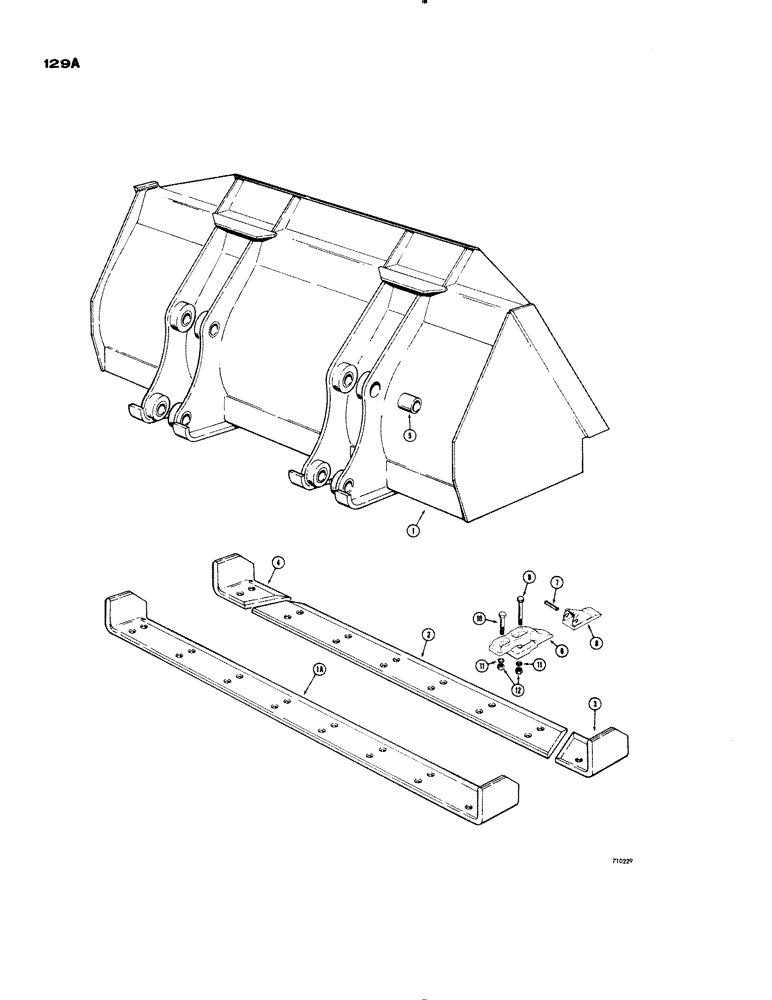

Запчасти Case 1150 (129A) - LOADER BUCKET, 1 3/4 CUBIC YARD BLUCKET (MACHINERY ITEM), WITH WELDED ON CUTTING EDGE (05) - UPPERSTRUCTURE CHASSIS

1

D49212

BUCKET - 1-3/4 cu. yd., Includes: Ref. 1A - 5

1шт.

1a

D51889

EDGE

CUTTING EDGE - one piece

1шт.

2

D49199

BLADE

CUTTING EDGE - center, 64-5/8"

1шт.

3

D49200

BLADE

CUTTING EDGE - R.H.

1шт.

4

D49201

BLADE

CUTTING EDGE - L.H.

1шт.

5

D40091

BUSHING,51.02mm ID x 63.5mm OD x 47.6mm L

- bucket mounting

4шт.

D49545

TOOTH

- bucket, Includes: Ref. 6 - 8

8шт.

6

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.

7

L32090

PIN

FLEX PIN - tooth

1шт.

8

L32089

POINT

- tooth

1шт.

9

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

HHCS - 5/8" - 11 NC x 3-1/2", optional tooth

8шт.

10

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

HHCS - 5/8" - 11 NC x 2-3/4", optional tooth

8шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Optional tooth 5/8"

16шт.

12

25-1010

NUT,5/8"-11, G5

Optional tooth 5/8"-11, G5

16шт.
