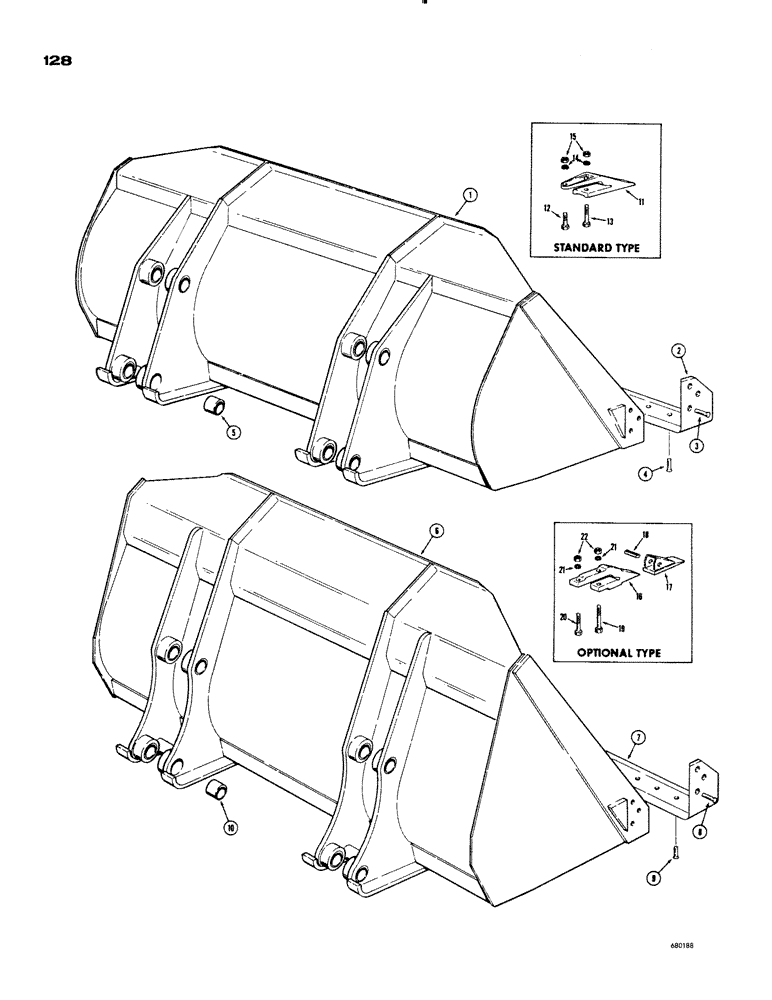

Запчасти Case 1150 (128) - LOADER BUCKETS (05) - UPPERSTRUCTURE CHASSIS

D33795

BUCKET - 1-1/2 cu. yd., with teeth, Includes: Ref. 1 - 5

1шт.

1

D33797

BUCKET - 1-1/2 cu. yd., without teeth, Includes: Ref. 2 - 5

1шт.

2

72855

BLADE

CUTTING EDGE - bucket

1шт.

3

46-840

RIVET,Pop, 1/2" x 2 1/2"

- 1/2" dia. x 2-1/2"

6шт.

4

46-836

RIVET,Csk, 1/2" x 2 1/4"

- 1/2" dia. x 2-1/4"

12шт.

5

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

- bucket ear

8шт.

6

D43402

BUCKET - 1-3/4 cu. yd., without teeth (When stock is exhausted, use D49212 bucket) Parts list Figure 129A, (machinery item) with riveted on cutting edges, Includes: Ref. 7 - 10

1шт.

7

72855

BLADE

CUTTING EDGE - bucket

1шт.

8

46-840

RIVET,Pop, 1/2" x 2 1/2"

- 1/2" dia. x 2-1/2"

6шт.

9

46-832

RIVET - 1/2" dia. x 2-1/4"

12шт.

10

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

- bucket ear

8шт.

D15170

TEETH

TOOTH SET - machinery item, Includes: Ref. 11 - 15

1шт.

11

R18502

TOOTH

- bucket, standard type

7шт.

12

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

HHCS - 1/2" - 20 NF x 2-1/4", standard tooth

7шт.

13

14-852

BOLT,Hex, 1/2" - 20 x 3-1/4", Gr 5

HHCS - 1/2" - 20 NF x 3-1/4", standard tooth

7шт.

14

92-8

LOCK WASHER,1/2"

standard tooth 1/2"

14шт.

15

25-118

NUT,1/2"-20, G5

- hex, (1/2" - 20 NF), standard tooth

14шт.

D40445

TOOTH

ASSEMBLY - optional type, Includes: Ref. 16 - 18

7шт.

16

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.

17

D39090

POINT

- tooth

1шт.

18

D39448

PIN

FLEX PIN - point

1шт.

19

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

Optional tooth Hex, 1/2"-13 x 4 1/4", G5

7шт.

20

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

HHCS - 1/2" - 13 NC x 3", optional tooth

7шт.

21

92-8

LOCK WASHER,1/2"

optional tooth 1/2"

14шт.

22

25-108

NUT,1/2"-13, G5

- hex (1/2" - 13 NC), optional tooth

14шт.
