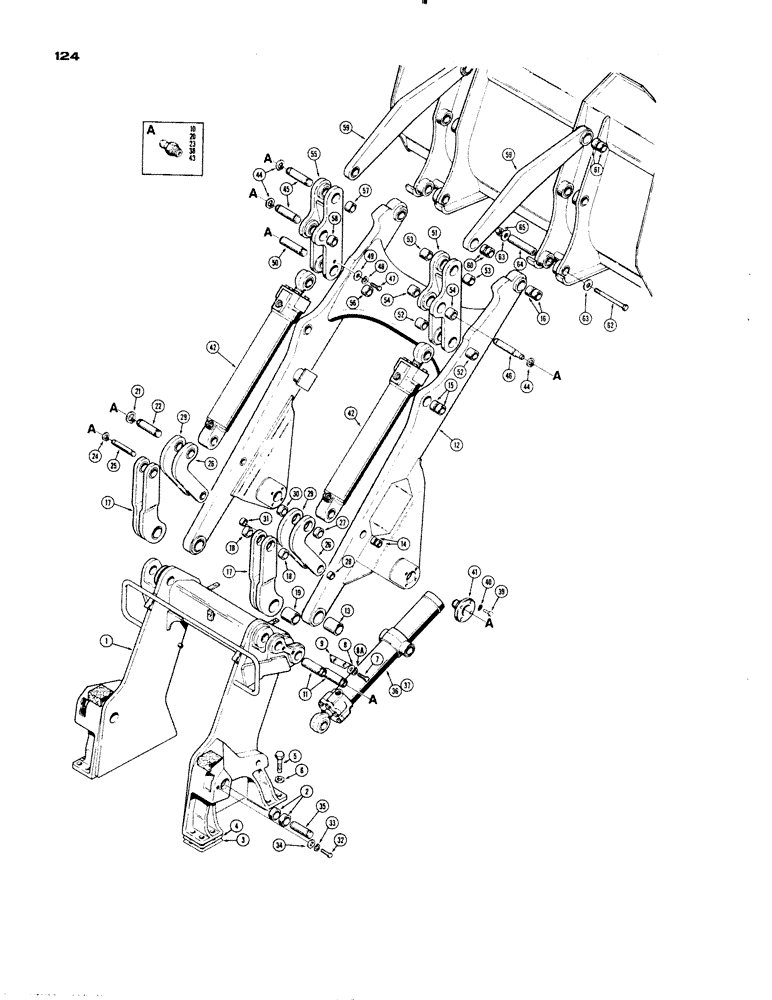

Запчасти Case 1150 (124) - LOADER (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
1
D36056
FRAME - upright, Includes: Ref. 2
1шт.
2
D23203
BUSHING
- frame
4шт.
3
73169
SHIM - 16 gauge
1шт.
4
73170
SHIM
- 10 gauge
1шт.
5
14-1644
BOLT,Hex, 1" - 14 x 2-3/4", Gr 5, Full Thd
HHCS - 1" - 14 NF x 2-3/4"
16шт.
6
D30196
WASHER
- special
16шт.
7
14-1028
BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5
4шт.
8
195-41
WASHER,5/8"
4шт.
9
D33630
PLATE
- retaining
2шт.
10
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (1/8" NPT)
4шт.
11
D33592
PIVOT
PIN - upright to lift frame and linkage
4шт.
12
D33596
FRAME - loader lift, Includes: Ref. 13 - 16
1шт.
13
D33616
BUSHING
- frame
2шт.
14
D30933
BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L
- frame
4шт.
15
D33024
BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L
- frame
4шт.
16
D31142
BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L
- frame
4шт.
17
D33652
DRAG LINK
LINK - upright to lift frame, Includes: Ref. 18 and 19
2шт.
18
D33659
BUSHING,51.02mm ID x 63.5mm OD x 19.1mm L
- link
2шт.
19
D33616
BUSHING
- link
1шт.
20
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (1/8" NPT)
2шт.
21
D26919
SNAP RING,#200, Ext
Ring, Snap, #200, Ext
4шт.
22
D33637
PIN
- lever to tilt cylinder
2шт.
23
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (1/8" NPT)
2шт.
24
D25279
SNAP RING,M35, Int
RING - snap
4шт.
25
D33638
PIN
- lever to lift frame
2шт.
26
D33658
LEVER
- lift frame to tilt cylinder, R.H., Includes: Ref. 27 and 28
2шт.
27
D33659
BUSHING,51.02mm ID x 63.5mm OD x 19.1mm L
- lever
1шт.
28
D30933
BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L
- lever
1шт.
29
D33657
LEVER
- lift frame to tilt cylinder, L.H., Includes: Ref. 30 and 31
2шт.
30
D33659
BUSHING,51.02mm ID x 63.5mm OD x 19.1mm L
- lever
1шт.
31
D30933
BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L
- lever
1шт.
32
14-1020
BOLT,Hex, 5/8" - 18 x 1-1/4", Gr 5
Hex, 5/8"-18 x 1 1/4
2шт.
34
70523
WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk
- pin retaining
2шт.
35
70524
PIN
- lift cylinder mounting
2шт.
36
REF
INSTRUCTION
CYLINDER - lift, R.H. (5-1/2" I.D. x 30-1/2" stroke) See Figure 190 for proper cylinder
1шт.
37
REF
INSTRUCTION
CYLINDER - lift, L.H. (5-1/2" L.D. x 30-1/2" stroke) See Figure 190 for proper cylinder
1шт.
38
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (1/8" NPT)
4шт.
39
13-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
16шт.
40
92-8
LOCK WASHER,1/2"
16шт.
41
D37960
PIN
- lift cylinder mounting
4шт.
42
REF
INSTRUCTION
CYLINDER - tilt (See Figure 188 for cylinders)ø
2шт.
43
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (1/8" NPT)
6шт.
44
D26919
SNAP RING,#200, Ext
Ring, Snap, #200, Ext
8шт.
45
D36055
AXLE PIN
PIN - lever to L.H. tilt cylinder and tilt links
3шт.
46
D36051
PIN
- lever to tilt cylinder, R.H.
1шт.
47
13-1016
BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd
2шт.
49
70523
WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk
- pin retaining
2шт.
50
D33660
PIN
- lever to lift frame
2шт.
51
D43232
LEVER - lift frame to tilt cylinder to tilt link, R.H., Includes: Ref. 52 - 54
1шт.
52
D33024
BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L
- lever
2шт.
53
D30756
BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L
- lever
2шт.
54
D38943
BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L
- lever
2шт.
55
D43231
LEVER - lift frame to tilt cylinder to tilt link, L.H., Includes: Ref. 56 - 58
1шт.
56
D33024
BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L
- lever
2шт.
57
D30756
BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L
- lever
2шт.
58
D38943
BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L
- lever
2шт.
59
D33625
LINK - tilt, Includes: Ref. 60 and 61
2шт.
60
D33678
BUSHING,51.02mm ID x 63.5mm OD x 22.3mm L
- link
2шт.
61
D31142
BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L
- link
2шт.
62
13-12160
BOLT,Hex, 3/4" - 10 x 10", Gr 5
4шт.
63
72915
GASKET
- pin retaining
8шт.
64
R13427
PIN
- pivot
4шт.
65
230-41112
LOCK NUT,3/4"-10, GA
NUT - lock (3/4" - 10 NC)
4шт.
50
D33660
PIN
- lever to lift frame
2шт.
Выбрано товаров: 67
