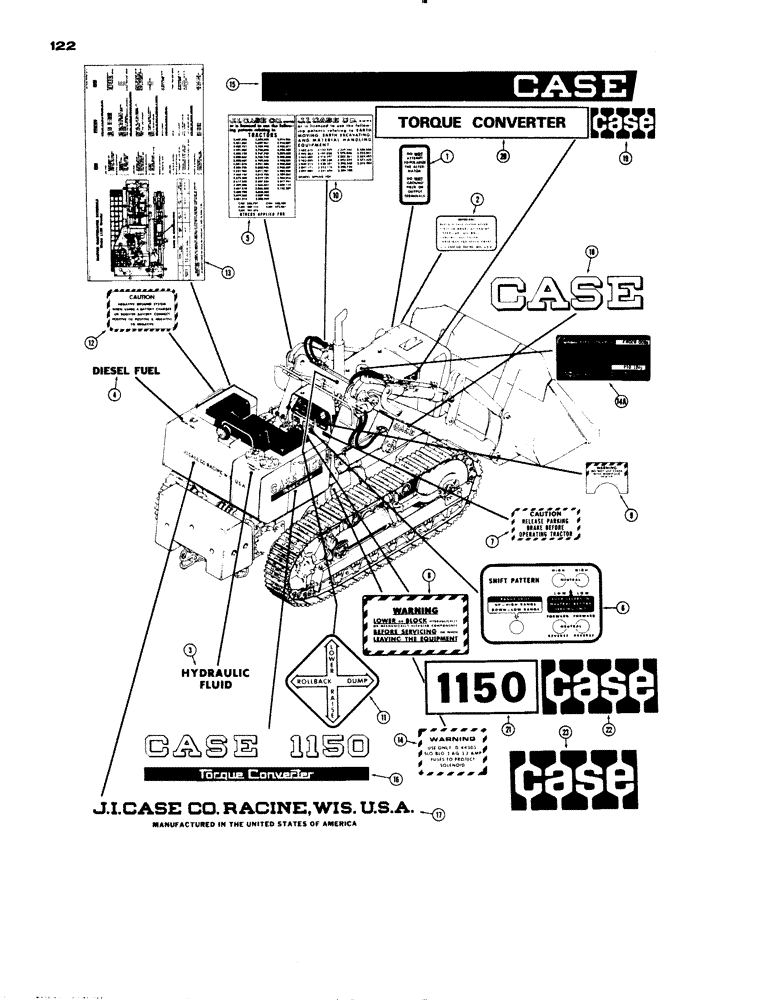

Запчасти Case 1150 (122) - DECALS (05) - UPPERSTRUCTURE CHASSIS

1

321-1061

DECAL

- alternator instruction

1шт.

2

321-367

DECAL

- engine oil filter replacement

1шт.

3

321-229

DECAL

- hydraulic fluid, R.H. top of tank

1шт.

4

321-230

DECAL

- Diesel fuel, L.H. top tank

1шт.

5

321-246

DECAL

- patent, tractor (L.H.side)

1шт.

6

D36894

DECAL

- transmission control, on dash

1шт.

7

321-208

DECAL

- warning, parking brake (On dash)

1шт.

8

321-662

DECAL

- warning, blocking for service (On dash)

1шт.

9

321-1089

DECAL

- warning, starting instructions (At starter switch)

1шт.

10

321-663

DECAL

- patent, equipment (L.H. side)

1шт.

11

321-920

DECAL

- loader controls (On dash)

1шт.

12

321-1062

DECAL

- battery ground, under L.H. arm rest

1шт.

13

321-916

DECAL

- Master Maintenance Schedule, under L.H. arm rest

1шт.

14

321-1258

DECAL

- warning, fuse (Return-to-dig)

1шт.

14a

321-1731

DECAL

- air cleaner instruction (On air cleaner)

1шт.

15

321-1054

DECAL

- Case, R. H. (On hood), early production models

1шт.

321-1055

DECAL

- Case, L.H. (On hood), early production models

1шт.

16

321-804

DECAL

- Case 1150 and Torque Converter, side of tank, early production models

2шт.

17

321-805

DECAL

- address, rear of tank, early production models

1шт.

18

321-675

DECAL

- Case, loader arm, early production models

2шт.

19

321-1438

DECAL

- Case, 3" high (On hood), late production models

2шт.

20

321-1483

DECAL

- Case torque converter (On hood), late production models

2шт.

21

321-1479

DECAL

- 1150, 5" high (On side of tank), late production models

2шт.

22

321-1441

DECAL

- Case, 5" high (On side of tank), late production models

2шт.

23

321-1445

DECAL

- Case, 9" high (Rear of tank), late production models

1шт.

DECAL (OPTIONAL BRAKE SYSTEM) USE 321-2114

1шт.
