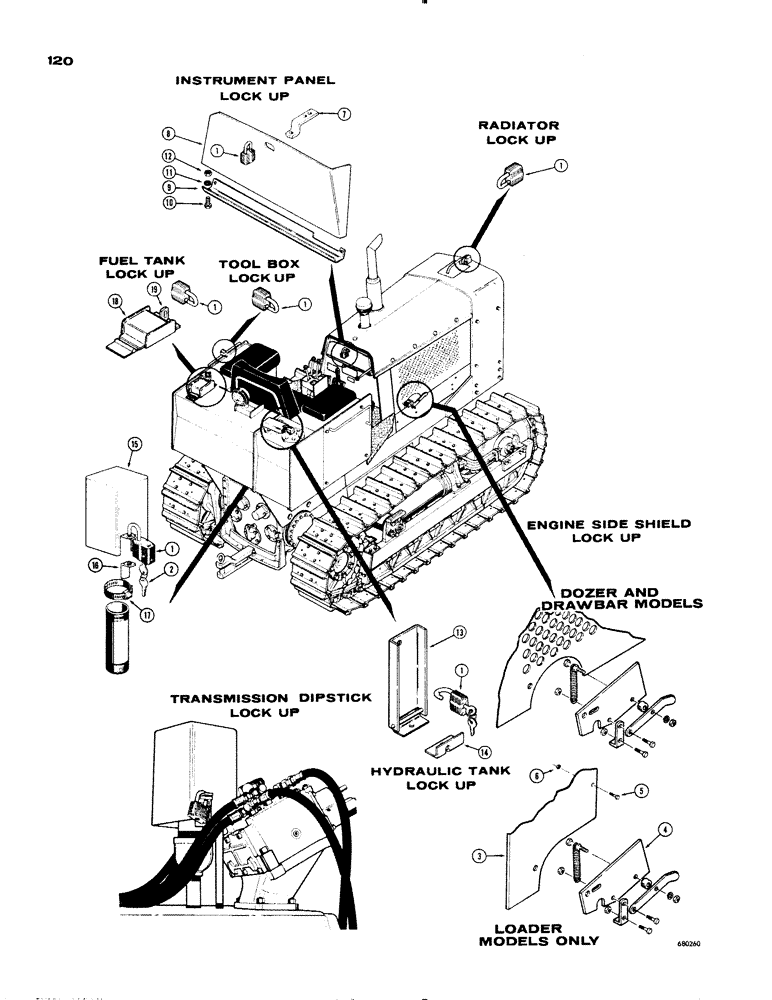

Запчасти Case 1150 (120) - LOCK UP PARTS (05) - UPPERSTRUCTURE CHASSIS

1

D40678

LOCK

PAD LOCK - tractor lock up

8шт.

2

D40679

KEY

- pad lock

2шт.

3

D42169

SHIELD - side, R.H., engine, lock up

1шт.

4

D38535

COVER

- side shield, inner, engine, lock up

1шт.

5

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Engine side shield lock up Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

6

131-151

LOCK NUT

NUT - hex., lock (5/16" - 18 NC), engine side shield lock up

4шт.

7

D41733

WASHER

TAB - locking, instrument panel

1шт.

8

D41729

GUARD ASSY.

GUARD - instrument panel, lock up

1шт.

9

D41728

BRACKET

- instrument panel guard, lock up

1шт.

10

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Instrument panel lock up Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Instrument panel lock up 1/4"

1шт.

12

25-104

NUT,1/4"-20, G5

Instrument panel lock up 1/4"-20, G5

1шт.

13

D41245

GUARD

- hydraulic tank, lock up

1шт.

14

NLS

NO LONGER SERVICED

BRACKET - hydraulic tank, lock up

1шт.

15

D42185

COVER

- transmission filler tube, dipstick lock up

1шт.

16

D42222

BRACKET

- filler tube lock, transmission dipstick lock up

1шт.

17

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

- dipstick lock up, transmission #36, 1.81/2.75 Type F Worm

1шт.

18

D41705

COVER

GUARD - fuel cap, tank lock up

1шт.

19

D41702

TAB - guard lock, fuel tank

1шт.
