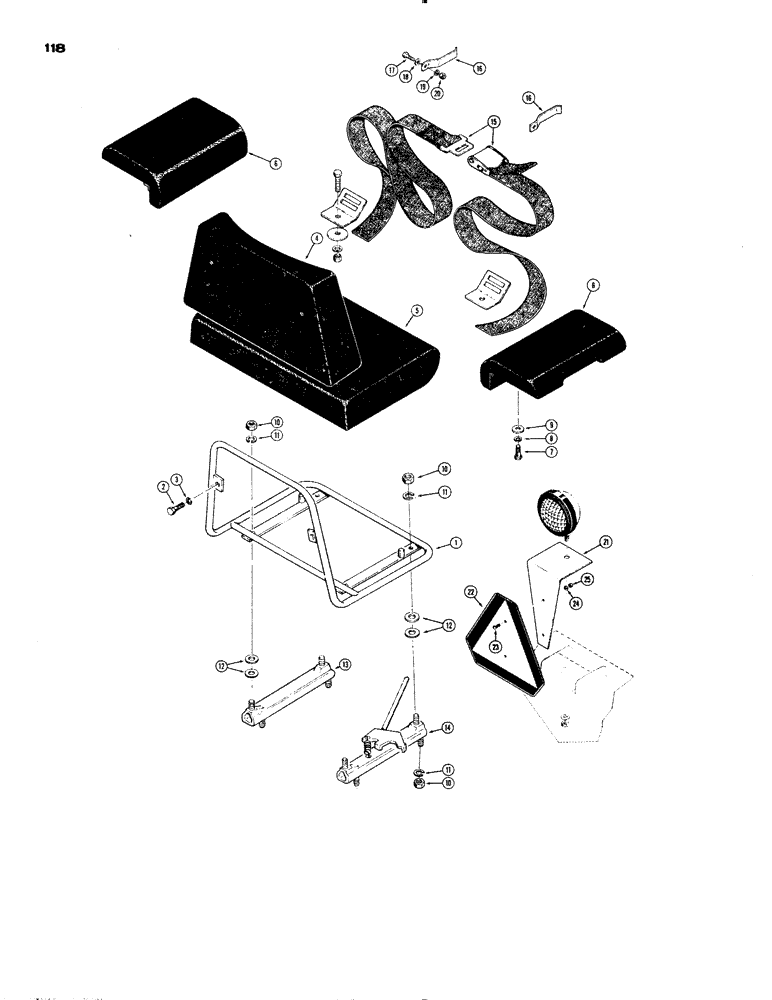

Запчасти Case 1150 (118) - SEAT FRAME AND CUSHIONS (05) - UPPERSTRUCTURE CHASSIS

1

D36279

SEAT

FRAME - seat

1шт.

2

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

D44169

CUSHION

- seat, back

1шт.

5

D36316

CUSHION

- seat

1шт.

6

D36317

CUSHION

- arm and hip

2шт.

7

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.

8

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

9

195-18

WASHER,1/4"

- plain () 1/4"

4шт.

10

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

8шт.

11

92-5

LOCK WASHER,5/16"

8шт.

12

195-21

WASHER,5/16"

- plain () 5/16"

8шт.

13

R26375

ADJUSTER

SLIDE - seat (Replaced D40238)

1шт.

14

R25578

SLIDE

AND LATCH - seat (Replaced D40237

1шт.

15

L48907

BELT

SAFETY BELT, Includes hardware (Replaced D44411)

1шт.

16

D50522

HOOK

- belt, seat

2шт.

17

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Seat belt Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

18

195-21

WASHER,5/16"

- plain (), Seat belt 5/16"

2шт.

19

92-5

LOCK WASHER,5/16"

seat belt 5/16"

2шт.

20

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC), seat belt

2шт.

21

D52014

BRACKET - mounting, emblem, slow moving vehicle

1шт.

22

A59449

NO LONGER SERVICED

EMBLEM - slow moving vehicle

1шт.

23

173-96

SCREW,Sl Rnd Hd, #10 - 24 x 7/16"

- flat head (#10 - 24 NC x 7/16"), slow moving vehicle emblem

2шт.

24

92-3

LOCK WASHER,#10

WASHER, LOCK, , SMV emblem #10

2шт.

25

129-7

NUT,Hex, #10 - 24

- hex (#10 - 24 NC), slow moving vehicle emblem

2шт.
