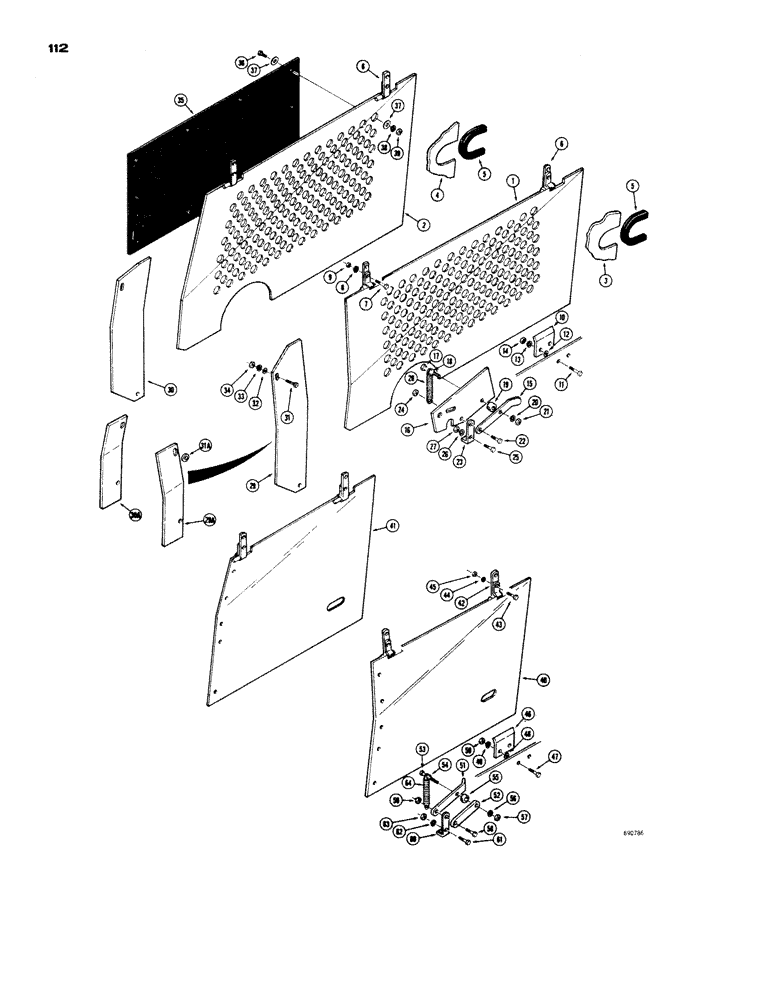

Запчасти Case 1150 (112) - SIDE SHIELDS AND BRUSH GUARDS, SIDE BRUSH SHIELD (DOZER & DRAWBAR MODELS) (05) - UPPERSTRUCTURE CHASSIS

1

D36633

GUARD

SHIELD - side, R.H. (Drawbar Models)

1шт.

2

D36632

GUARD

SHIELD - side, L.H. (Drawbar Models)

1шт.

3

D36629

COVER

SHIELD - side, R.H. (Dozer Models)

1шт.

4

D36628

SHIELD - side, L.H. (Dozer Models)

1шт.

5

D38500

LINING

GUARD - shield edge (D36629 and D36628 shield)

2шт.

6

D43293

CLAMP

- shield

4шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

8

92-6

LOCK WASHER,3/8"

8шт.

9

25-106

NUT,3/8"-16, G5

- hex (3/8" - 16 NC)

8шт.

10

D36503

RETAINER

CLIP - retainer

2шт.

11

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

4шт.

12

D36627

BUSHING

SPACER

2шт.

13

92-6

LOCK WASHER,3/8"

4шт.

14

25-106

NUT,3/8"-16, G5

- hex (3/8" - 16 NC)

4шт.

15

D36500

LATCH

- side shield, outer

2шт.

16

D38535

COVER

- side shield, inner

2шт.

17

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

18

25-106

NUT,3/8"-16, G5

- hex (3/8" - 16 NC)

2шт.

19

D38524

SPACER

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex, lock (3/8" - 16 NC)

2шт.

22

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

23

D36626

BRACKET

- spring mounting

2шт.

24

131-352

LOCK NUT,3/8"-16, GA

NUT - hex, lock (3/8" - 16 NC)

2шт.

25

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

26

92-6

LOCK WASHER,3/8"

2шт.

27

25-106

NUT,3/8"-16, G5

- hex (3/8" - 16 NC)

2шт.

28

A30711

SPRING

- latch

2шт.

29

D44001

GUARD - brush, L.H. (Dozer and Drawbar Models), Serial Range: -7109299

1шт.

29a

D48015

COVER

GUARD - brush, R.H. (Dozer Models), Start Serial: 7109299

1шт.

30

D44000

GUARD - brush, R.H. (Dozer and Drawbar Models), Serial Range: -7109299

1шт.

30a

D48014

GUARD ASSY.

GUARD - brush, L.H. (Dozer Models)

1шт.

31

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

, Start Serial: 7109299

4шт.

31a

D48016

SPACER

- guard

2шт.

32

195-25

WASHER,3/8"

- plain () 3/8", Start Serial: 7109299

2шт.

33

92-6

LOCK WASHER,3/8"

4шт.

34

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

35

D49154

SCREEN - brush, R.H. (Dozer and Drawbar Models)

1шт.

35

D49155

SCREEN - brush, L.H. (Dozer and Drawbar Models)

1шт.

36

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

20шт.

37

195-28

WASHER,3/8"

- plain () 3/8"

40шт.

38

92-6

LOCK WASHER,3/8"

20шт.

39

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

20шт.

40

D36499

GUARD

SHIELD - side, R.H.

1шт.

41

D36498

GUARD

SHIELD - side, L.H.

1шт.

42

D43293

CLAMP

- shield

4шт.

43

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

8шт.

44

92-6

LOCK WASHER,3/8"

8шт.

45

25-106

NUT,3/8"-16, G5

- hex (3/8" - 16 NC)

8шт.

46

D36503

RETAINER

CLIP - retainer

2шт.

47

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

4шт.

48

D36627

BUSHING

SPACER

2шт.

49

92-6

LOCK WASHER,3/8"

4шт.

50

25-106

NUT,3/8"-16, G5

- hex (3/8" - 16 NC)

4шт.

51

D36500

LATCH

- side shield, inner

2шт.

52

D36504

LOCK

LATCH - side shield, outer

2шт.

53

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

54

25-106

NUT,3/8"-16, G5

- hex (3/8" - 16 NC)

2шт.

55

D38524

SPACER

2шт.

56

92-6

LOCK WASHER,3/8"

2шт.

57

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex., lock (3/8" - 16 NC)

2шт.

58

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

59

131-352

LOCK NUT,3/8"-16, GA

NUT - hex., lock (3/8" - 16 NC)

2шт.

60

D36626

BRACKET

- spring mounting

2шт.

61

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

62

92-6

LOCK WASHER,3/8"

2шт.

63

25-106

NUT,3/8"-16, G5

- hex (3/8" - 16 NC)

2шт.

64

A30711

SPRING

- latch

2шт.

39

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

20шт.
