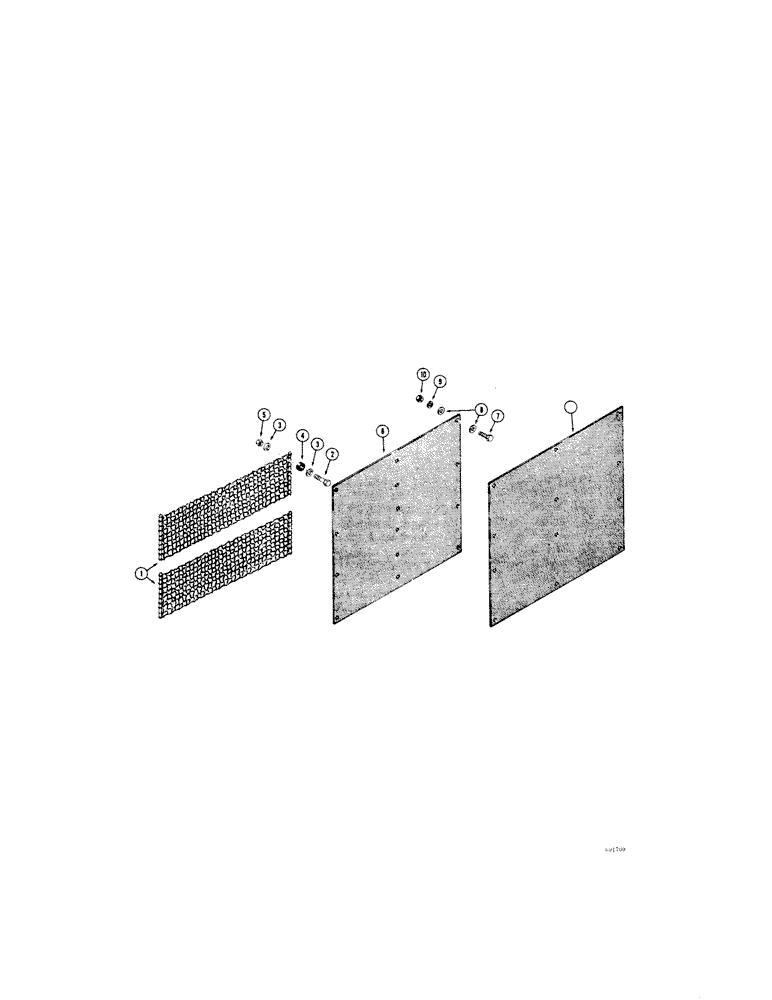

Запчасти Case 1150 (109A[1]) - FRONT SCREENS (05) - UPPERSTRUCTURE CHASSIS

1

D41357

SCREEN - brush, front of radiator

2шт.

2

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

16шт.

3

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- special

32шт.

4

R20553

WASHER

SPACER - screen

16шт.

5

131-352

LOCK NUT,3/8"-16, GA

NUT - hex, lock (3/8" - 16 NC)

16шт.

6

NLS

NO LONGER SERVICED

- dirt, (24-1/2" x 23-1/2" (Used with suction fans) When stock is exhausted, use D48065 screen

1шт.

6a

D48065

SCREEN

- dirt, 26-1/2" x 24-1/2" (Use with suction fans)

1шт.

7

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

18шт.

8

195-28

WASHER,3/8"

- plain () 3/8"

36шт.

9

92-6

LOCK WASHER,3/8"

18шт.

10

25-106

NUT,3/8"-16, G5

- hex (3/8" - 16 NC)

18шт.
