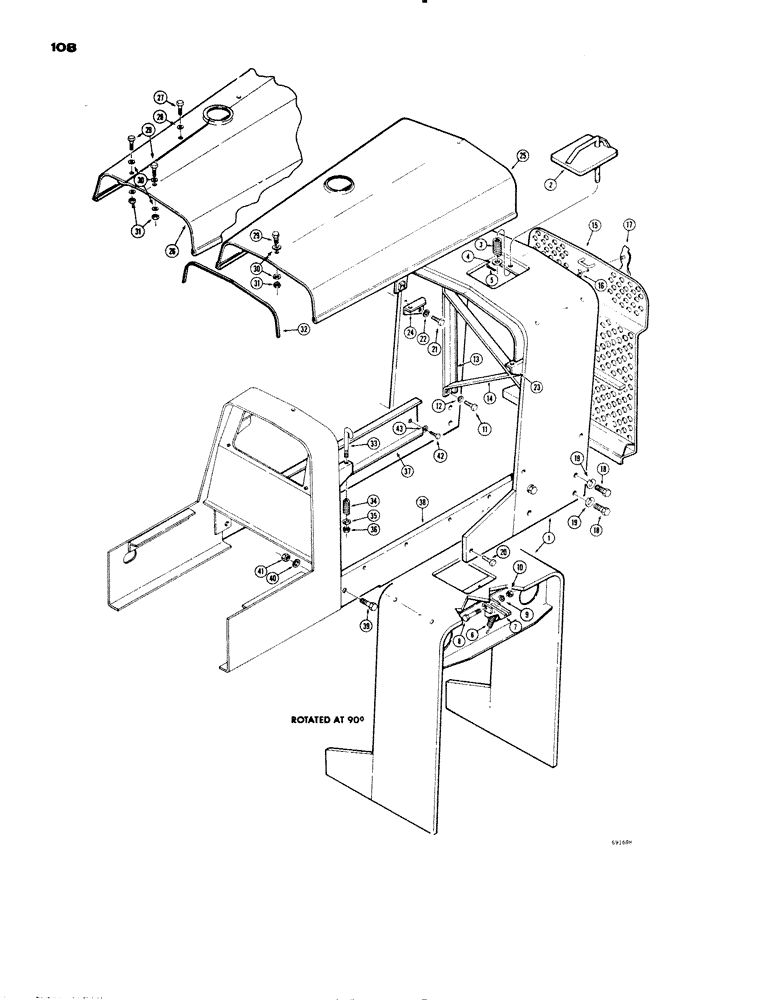

Запчасти Case 1150 (108) - HOOD, SHROUD AND GRILLE (05) - UPPERSTRUCTURE CHASSIS

1

D42806

JAW

GUARD - radiator, Drawbar Models

1шт.

D42804

GUARD - radiator, Dozer Models (Not illustrated)

1шт.

D42805

GUARD - radiator, Loader Models (Not illustrated)

1шт.

2

D42798

LID AND GRILLE RETAINER - radiator, (1/4" thick)

1шт.

3

A31171

SPRING

- lid and retainer (Used with D42798)

1шт.

4

195-33

WASHER,1/2"

- plain () 1/2"

1шт.

5

132-67

COTTER PIN,5/32" x 3/4"

Pin, Split (Cotter), 5/32" x 3/4"

1шт.

6

R14165

SPRING - radiator guard to grille latch

1шт.

7

D41104

LATCH - grille

1шт.

8

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8" - 16 NC x 2"

1шт.

9

92-6

LOCK WASHER,3/8"

1шт.

10

25-106

NUT,3/8"-16, G5

- hex (3/8" - 16 NC)

1шт.

11

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

12

92-8

LOCK WASHER,1/2"

4шт.

13

D41110

BRACE - grille

2шт.

14

D41112

BRACE

- radiator guard

1шт.

15

D42800

GUARD

GRILLE - radiator (Models without Backhoe)

1шт.

D43936

GRILLE

- radiator (Used with Backhoe only)

1шт.

16

D41526

CLIP - eagle retaining

2шт.

17

D40300

EMBLEM

MEDALLION - eagle

1шт.

18

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

8шт.

19

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

8шт.

20

13-1636

BOLT,Hex, 1" - 8 x 2-1/4", Gr 5, Full Thd

2шт.

21

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

22

92-8

LOCK WASHER,1/2"

4шт.

23

D35746

BRACKET

- hood mounting, R.H.

1шт.

24

D35745

SPLIT PIN/SAFETY PIN

BRACKET - hood mounting, L.H.

1шт.

25

D35844

HOOD - Dozer and Drawbar Models (Used with dry type air cleaner), Includes: Ref. 27 and 28

1шт.

D39252

HOOD - Dozer and Drawbar Models (Used with oil bath type air cleaner), Includes: Ref. 27 and 28

1шт.

26

D43275

GUARD

HOOD - Loader Models (Used with dry type air cleaner), Includes: Ref. 27 and 28

1шт.

D43277

HOOD - Loader Models (Used with oil bath type air cleaner), Includes: Ref. 27 and 28

1шт.

27

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2" - 13 NC x 3/4"

4шт.

28

95-8

WASHER,1/2"

- plain 1/2"

4шт.

29

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1-2шт.

30

195-25

WASHER,3/8"

- plain () 3/8"

2-4шт.

31

131-352

LOCK NUT,3/8"-16, GA

NUT - hex, lock (3/8" - 16 NC)

1-2шт.

32

D35820

GUARD - rear hood edge

1шт.

33

D33958

BOLT

LATCH - hood hold down

4шт.

34

F60482

SPRING

- latch

4шт.

35

195-25

WASHER,3/8"

- plain () 3/8"

4шт.

36

131-352

LOCK NUT,3/8"-16, GA

NUT - hex., lock (3/8" - 16 NC)

4шт.

37

D42957

PANEL, SIDE

PANEL - engine, side (L.H.)

1шт.

38

D42958

COVER

PANEL - engine, side (R.H.)

1шт.

39

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

40

92-8

LOCK WASHER,1/2"

2шт.

41

25-108

NUT,1/2"-13, G5

- hex (1/2" - 13 NC)

2шт.

42

13-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5, Full Thd

Hex 1/2"-13 x 7/8", G5, Full Thd

2шт.

43

92-8

LOCK WASHER,1/2"

2шт.
