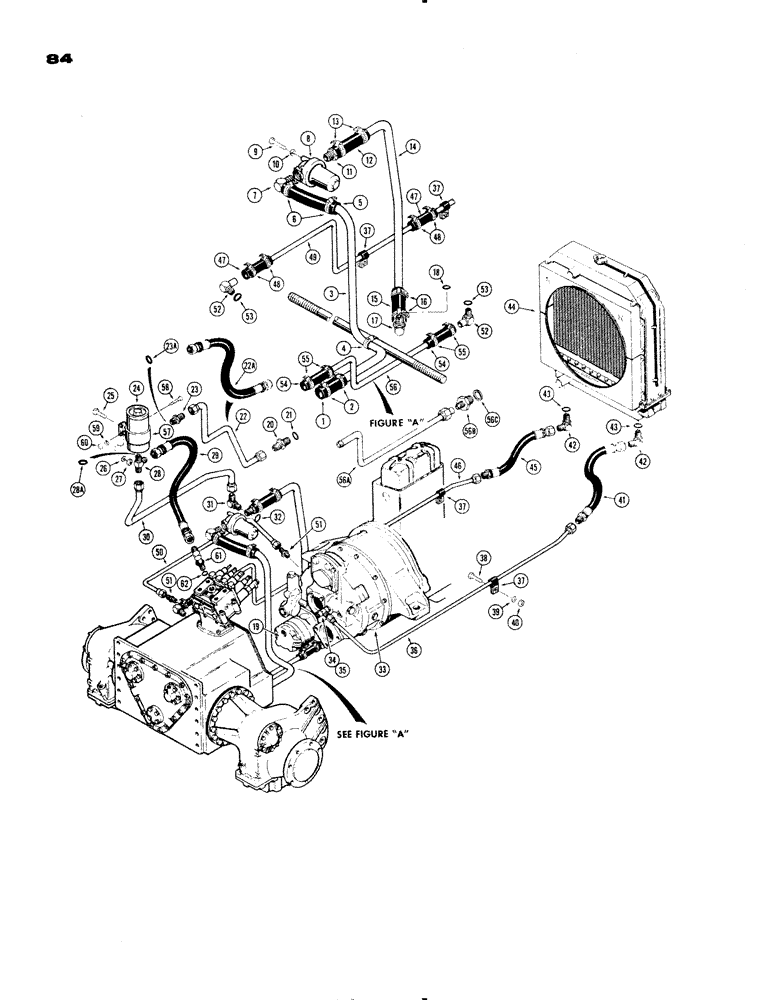

Запчасти Case 1150 (084) - BASIC TRACTOR HYDRAULICS (05) - UPPERSTRUCTURE CHASSIS

1

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- low pressure 31.80 mm ID x 101.60 mm ID, SAE 100R3

1шт.

2

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

3

D35960

TUBE

-, Serial Range: transmission-filter

1шт.

4

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

- tube #36, 1.81/2.75 Type F Worm

1шт.

5

D37188

HOSE

- low pressure

1шт.

6

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

7

217-166

STEM,90 Degree Elbow, 1-1/4" Hose Barb x 1" Male NPTF

STEM - hose, 90deg.

1шт.

8

D43639

FILTER, ENGINE OIL

FILTER - hydraulic oil (Parts list Figure 88)

1шт.

9

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

10

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

11

D35137

LINE

STEM - hose, straight

1шт.

12

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- low pressure 31.80 mm ID x 101.60 mm ID, SAE 100R3

1шт.

13

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

14

D35955

TUBE

-, Serial Range: filter-pump

1шт.

15

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- low pressure 31.80 mm ID x 101.60 mm ID, SAE 100R3

1шт.

16

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

17

D36486

FITTING

STEM - hose, 90 deg. (D44094 pump), Includes: Ref. 18

1шт.

17

D52508

FITTING

STEM - hose, 90 deg. (D49432 pump), Includes: Ref. 18

1шт.

18

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring (D36486 and D52508 stem)

1шт.

19

D44094

PUMP

- D42918 torque converter (Parts list Figure 58)

1шт.

19

D49432

PUMP, HYDRAULIC

PUMP - D52074 torque converter (Parts list Figure 59A)

1шт.

20

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight (D44094 pimp), Includes: Ref. 21 below

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

20

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , straight (D49432 pump), Incl. Ref. 21 below 7/8"-14, 37º x 3/4"-16, O-Ring

1шт.

22

D42916

TUBE

- pump to filter (Use 37405 for service)

1шт.

22a

37405

HOSE

-, Serial Range: pump-filter

1шт.

23

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, straight (Used on D35153 filter), Includes: Ref. 23 below

1шт.

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight (Used on D45336 filter), Includes: Ref. 23 below

1шт.

23

A218-5005

SEAL - "O" ring

1шт.

24

D35163

FILTER - transmission oil, Parts list Figure 88 (When stock is exhausted, use D45336 filter, 218-5063 connector and D45618 tee for service), Serial Range: -7109360

1шт.

NLS

NO LONGER SERVICED

FILTER - transmission oil, Parts list Figure 88, Start Serial: 7109360

1шт.

25

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

26

95-6

WASHER,3/8"

- standard wrot () 3/8"

4шт.

27

131-6

LOCK NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC)

4шт.

28

D35964

TEE - male, used on D35153 filter, Includes: Ref. 28A

1шт.

28

218-5294

TEE,37 Degree, 7/8"-14, 1 1/16"-12 O-Ring Run, 7/8"-14

- male, used on D45336 filter, Includes: Ref. 28A

1шт.

28a

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

29

D28117

HOSE

- filter to valve, 23-1/2" long (See Figure 76 for valve)

1шт.

30

D35956

TUBE

- filter to torque converter relief valve

1шт.

31

R19576

FITTING

ELBOW - 90 deg. special, 5/8" JIC x 5/8" JIC, Includes: Ref. 32

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

33

REF

INSTRUCTION

TORQUE CONVERTER - engine (Parts list Figure 54)

1шт.

34

D44004

FITTING

TEE - special, Includes: Ref. 35

1шт.

35

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

36

D35949

TUBE

-, Serial Range: converter-radiator

1шт.

37

49855

CLAMP

- tube

4шт.

38

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

39

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

4шт.

40

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

4шт.

41

R19858

HOSE

- converter to radiator, 12" long (If used)

1шт.

42

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- adjustable, 90 deg., Incl. Ref. 43

2шт.

43

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

44

REF

INSTRUCTION

RADIATOR - See Figure 38

1шт.

45

R19858

HOSE

- radiator to transmission, 12" long

1шт.

46

D35952

TUBE

- radiator to transmission, front

1шт.

47

R20804

HOSE,19.00 mm ID x 76.20 mm, SAE 100R3

Low Pressure 19.00 mm ID x 76.20 mm, SAE 100R3

2шт.

48

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

4шт.

49

D35951

TUBE

- radiator to transmission, rear

1шт.

50

D35962

TUBE

-, Serial Range: converter-transmission

1шт.

51

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight male

2шт.

52

217-350

FITTING,90 Degree Elbow, 5/8" Hose Barb x 1-5/16" - 12 Male ORB

STEM - hose, 90 deg., Includes: Ref. 53

1шт.

53

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

54

R24723

HOSE

- low pressure (Replaced D35139)

1-2шт.

55

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

4шт.

56

D35954

TUBE

- converter to transmission (Tube without flared fitting and nut)

1шт.

56a

D49421

TUBE

- converter to transmission (Tube with flared fitting and nut)

1шт.

56b

D49426

CONNECTOR, ELEC

CONNECTOR - straight, special (D49421 tube)

1шт.

56c

72293

GASKET

- special (D49426 connector)

1шт.

57

D31217

BRACKET

- filter, use with D35153 filter

1шт.

58

75-544

RHMS - 5/16" - NC x 2-3/4"

2шт.

59

92-5

LOCK WASHER,5/16"

med sect. 5/16"

2шт.

60

9635082

NUT,5/16" - 18, Gr 5

- hex., (5/16" - 18 NC)

2шт.

61

R20894

FITTING

ELBOW - special, Includes: Ref. 62

1шт.

62

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.
